JBL AWC129 All-Weather Loudspeaker
Model AWC129
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

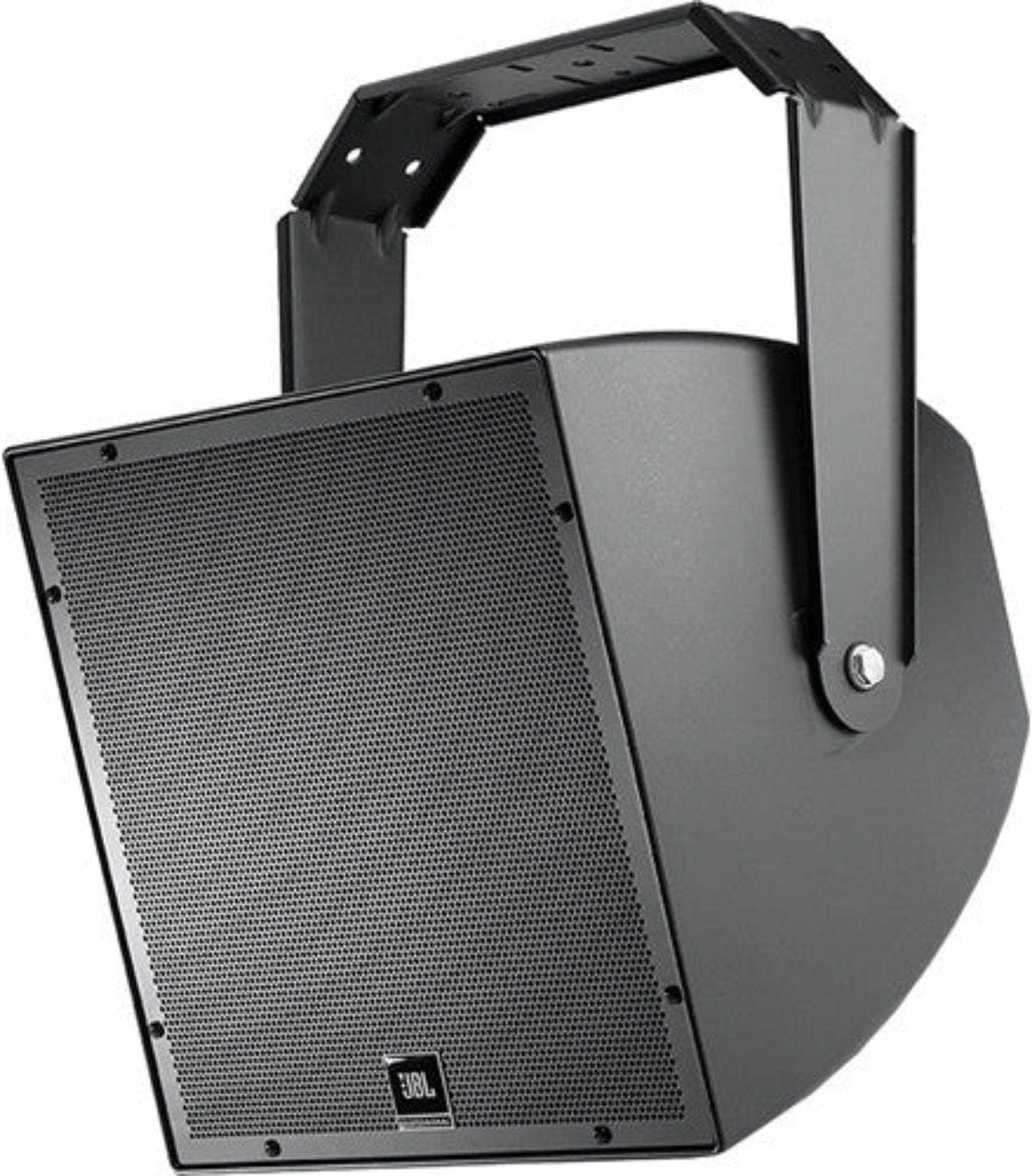

JBL AWC129 All-Weather Compact 2-Way Coaxial Loudspeaker with 12" LF
The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system ideal for speech and music in a wide variety of applications. These include sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, water parks, outdoor background music/paging systems, swimming pools, and various other outdoor or indoor venue types.
Why this product
Key Benefits
-
Highly weather-resistant IP56 rating
-
Consistent 90° x 90° broadband pattern control
-
Components
:
-
300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil
-
25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm
-
Extraordinary clarity for speech, with extended frequency response for music
-
Advanced high-slope crossover network for constant coverage and smooth, natural midrange
-
400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability
-
High-power passive crossover network
-
Overload protection
-
55 Hz – 20 kHz frequency response
-
200 Watt 70V/100V multi-tap (built-in transformer)
-
Direct 8Ω low-impedance
Technical details
Technical Specifications
System
- LF Driver
- Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil
- HF Driver Protection
- Minimum audibility SonicGuard™ HF overload protection
- Crossover Modes
- Passive
Frequency
- Frequency Range (-10dB)
- 55 Hz – 20 kHz
- Frequency Response (±3 dB)
- 80 Hz – 20 kHz
Performance & Coverage
- Coverage Pattern
- 90° x 90°
- Directivity Factor (Q)
- 10.1 (1 k – 16 kHz)
- Directivity Index (DI)
- 9.5 dB (1 k – 16 kHz)
Power
- 200 W Tap
- 119 dB
- Nominal Impedance
- 8 ohms
- 70V
- 200W, 100W, 50W, 25W
- 100V
- 200W, 100W, 50W
- Nominal LF Driver Impedance
- 8 ohms
Physical
- Enclosure
- ABS with Glass enclosure, heavily braced
- Colors
- Available in gray (similar to Pantone 420C) and black (-BK)
- Suspension Attachment
- Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel
Environmental
- Environmental
- IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs)
Included & Optional Accessories
- Included Accessories
- U-bracket, matches loudspeaker color (gray or black), zinc-rich extra-thick powder coated steel
Shipping & Packaging
- Shipping Weight
- 23.4 kg (51.5 lbs)
General
- Direct 8Ω
- 122 dB (peaks of 128 dB)
More details
Additional Information
Specifications:
- System Power Rating:
- 400 W (1600 W peak), 2 hrs
- 250 W (1000 W peak), 100 hrs
- Sensitivity (2.83V @ 1m): 96 dB (Ave. 80 Hz – 20 kHz)
- Maximum SPL (1m):
- Crossover Network:
- 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF
- 2nd order low-pass to LF
- Transformer Taps:
- HF Driver:
- 25 mm (1 in) diaphragm and voice coil diameter
- High temperature polymer diaphragm, patented design, fluid-cooling
- Attachment:
- Two M10 (fine-thread) points for included U-bracket
- M6 secondary safety attachment point on back panel
- Grille:
- Corrosion-resistant zinc-rich extra-thick powder coated steel grille
- 3-layer assembly with foam and woven poly mesh backing
- Input Connection:
- CE-compliant covered barrier strip terminals
- Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm² (12 AWG) wire or spade lugs
- Terminal compartment cover equipped with gland nut for water-tight seal
- Dimensions:
- 402 x 402 x 445 mm (15.8 x 15.8 x 17.5 in)
- Cabinet 470 mm (18.5 in) depth with gland nut 542 mm (21.4 in) including bracket extending to back
- Net Weight (each):
- 15.9 kg (35.0 lb)
- 18.9 kg (41.5 lb) with U-bracket
