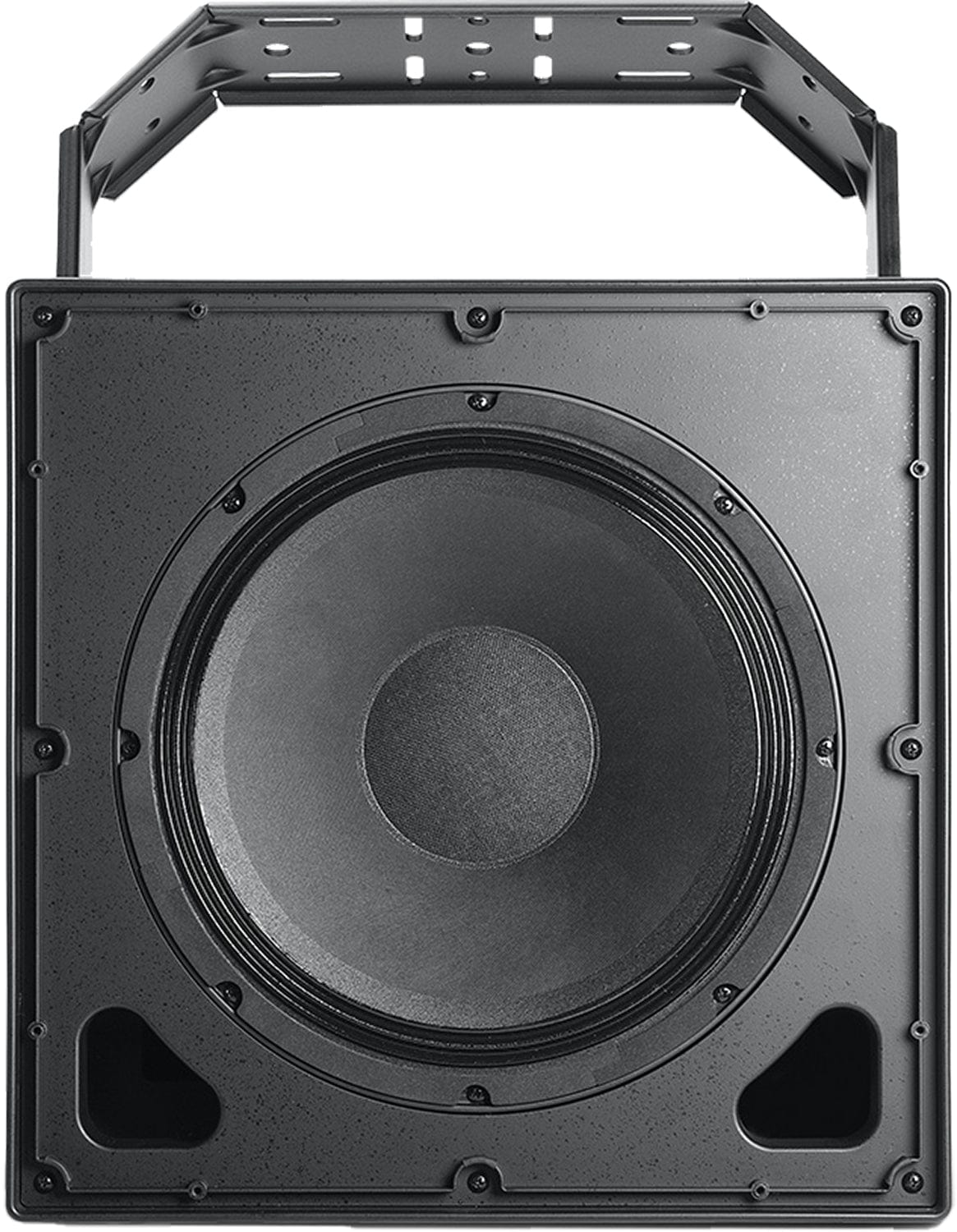

JBL AWC129 All-Weather Compact 2-Way Coaxial Loudspeaker with 12" LF
Model AWC129-BK
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AWC129 All-Weather Compact 2-Way Coaxial Loudspeaker with 12" LF
The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.
Why this product
Key Benefits
-
Highly weather-resistant IP56 rating
-
Consistent 90° x 90° broadband pattern control
-
Components
:
-
300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
-
25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.
-
Extraordinary clarity for speech, with extended frequency response for music.
-
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
-
400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
-
High-power passive crossover network.
-
Overload protection
-
55 Hz – 20 kHz frequency response.
-
200 Watt 70V/100V multi-tap (built-in transformer) direct 8Ω low-impedance.
Technical details
Technical Specifications
System
- Speaker Configuration
- 2-Way
- HF Driver
- 1 x 1" / 2.54 cm Polymer Compression Driver
- HF Voice Coil
- 1" / 2.54 cm
- LF Driver
- 1 x 12" / 30.48 cm Kevlar Woofer
- LF Voice Coil
- 3" / 7.62 cm
Frequency
- Frequency Range
- 55 Hz to 20 kHz -10 dB
- Frequency Response
- 80 Hz to 20 kHz ±3 dB
Performance & Coverage
- Sensitivity
- 96 dB (Average)
- Coverage Angle
- 90° H x 90° V
Power
- Impedance
- 8 Ohms (Nominal)
- Transformer Wattage
- 200 W
Physical
- Enclosure Type
- Sealed
- Color
- Black
- Construction Material
- ABS, Glass, Metal Grille
- Dimensions
- 17.5 x 15.8 x 15.8" / 44.45 x 40.13 x 40.13 cm
Environmental
- Water / Weather Resistance
- Dust Resistant, Humidity Resistant, Water Resistant, Weather Resistant
- IP Rating
- IP56
Included & Optional Accessories
- Number of Included Speakers
- 1
Shipping & Packaging
- Package Weight
- 46.55 lb
- Box Dimensions (LxWxH)
- 22.2 x 20.9 x 20.5"
General
- Active or Passive
- Passive
- 70 V
- 200 / 100 / 50 / 25 W or 8 Ohms Bypass
- 100 V
- 200 / 100 / 50 W or 8 Ohms Bypass
- Shielded
- No
- High-Pass
- 1.5 kHz, 18 dB/Octave (Passive)
- Low-Pass
- 1.5 kHz, 12 dB/Octave (Passive)
- Protections
- Transducer Overdrive
- Maximum Wire Gauge
- 12 AWG / 2.5 mm
More details
Additional Information
Specifications:
- Speaker:
- Power Handling
- For 2 Hours:
- 400 W
- 1600 W Peak
- For 100 Hours:
- 250 W
- 1000 W Peak
- For 2 Hours:
- Constant Voltage / Transformer Taps:
- Power Handling
- Drivers:
- Performance:
- Maximum SPL:
- 122 dB (Continuous)
- 128 dB (Peak)
- Directivity:
- 9.5 dB (Directivity Index)
- 10.1 dB (Directivity/Q Factor)
- Crossover:
- Maximum SPL:
- Connectivity:
- I/O Connectors:
- 1 x Barrier Strip 2-Pole Speaker Input
- 1 x Barrier Strip 2-Pole Speaker Thru
- I/O Connectors:
- Environmental:
- Physical:
- Mounting:
- 1 x M10 Bracket Point (Each Side)
- 1 x M6 Suspension (Rear)
- Weight:
- 35 lb / 15.9 kg (without Bracket)
- 41.5 lb / 18.8 kg (with Bracket)
- Mounting:
- Packaging Info:
