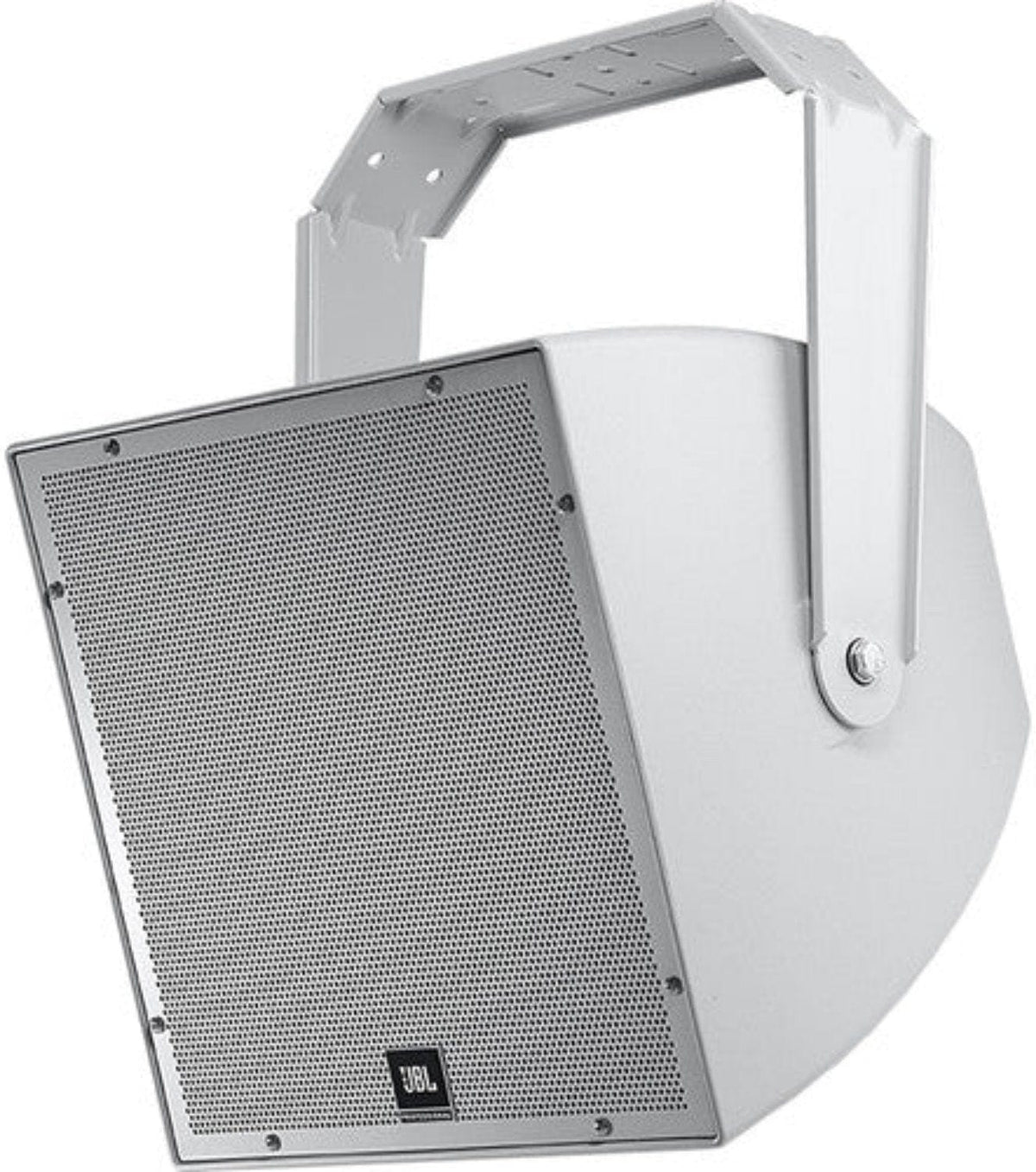

JBL AWC159 All-Weather Compact 2-Way Coaxial Loudspeaker with 15" LF
Model AWC159
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AWC159 All-Weather Compact 2-Way Coaxial Loudspeaker with 15" LF
The AWC159 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system, ideal for speech and music in a wide variety of applications. This versatile speaker is perfect for sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.
Why this product
Key Benefits
-
Weather Resistance: Highly weather-resistant IP56 rating
-
Coverage Pattern: Consistent 90° x 90° broadband pattern control
-
Components
:
-
380 mm (15 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil
-
38 mm (1.5 in) diaphragm compression driver with patented design and high-temperature polymer diaphragm
-
Sound Quality
:
-
Extraordinary clarity for speech, with extended frequency response for music
-
Advanced high-slope crossover network for constant coverage and smooth, natural midrange
-
Power Handling
:
-
500 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability
-
High-power passive crossover network
-
Power Options
:
-
300 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance
Technical details
Technical Specifications
System
- Crossover Network
- 1.5 kHz, 4th order (24 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
- LF Driver
- Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil
- HF Driver
- 2408H-2 38 mm (1.5 in) diaphragm and voice coil diameter, patented high-temperature annular polymer diaphragm, copper-clad aluminum coil, fluid-cooled
- Crossover Modes
- Passive
Frequency
- Frequency Range (-10 dB)
- 52 Hz – 20 kHz
- Frequency Response (±3 dB)
- 80 Hz – 20 kHz
- Frequency Response
- 52 Hz – 20 kHz
Performance & Coverage
- Coverage Pattern
- 90° x 90°
- Directivity Factor (Q)
- 11.1 (1 kHz – 16 kHz)
- Directivity Index (DI)
- 9.7 dB (1 kHz – 16 kHz)
Power
- 300 W Tap
- 123 dB (peaks of 129 dB)
- Nominal Impedance
- 8 ohms
- 70V
- 300W, 150W, 75W, 38W
- 100V
- 300W, 150W, 75W
- Nominal LF Driver Impedance
- 8 ohms
Connectivity
- Input Connection
- CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm² (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
Physical
- Enclosure
- ABS with glass enclosure, heavily braced
- Grille
- Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing
- Cabinet
- 486 x 486 x 479 mm (19.1 x 19.1 x 18.8)
- Cabinet depth with gland nut
- 507 mm (19.9 in)
- Colors
- Available in gray (similar to Pantone 420C) and black (-BK)
- Suspension Attachment
- Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel
- Net Weight (each)
- 20.6 kg (45.5 lbs)
Environmental
- Environmental
- IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs)
Included & Optional Accessories
- Included Accessories
- U-bracket, matches loudspeaker color (gray or black), zinc-rich extra-thick powder coated, steel
General
- Direct 8Ω
- 125 dB (peaks of 131 dB)
- Including bracket extending to back
- 546 mm (21.5 in)
More details
Additional Information
Specifications:
- System Power Rating:
- 500 W (2000 W peak), 2 hrs.
- 300 W (1200 W peak), 100 hrs
- Sensitivity (2.83V @ 1m): 98 dB (Ave. 80 Hz – 20 kHz)
- Maximum SPL (1m):
- Transformer Taps:
- Attachment:
- Two M10 (course-thread) points for included U-bracket
- M6 secondary safety attachment point on back panel
- Dimensions:
