JBL AWC15LF All-Weather Compact Low-Frequency Speaker with 15" LF
Model AWC15LF
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

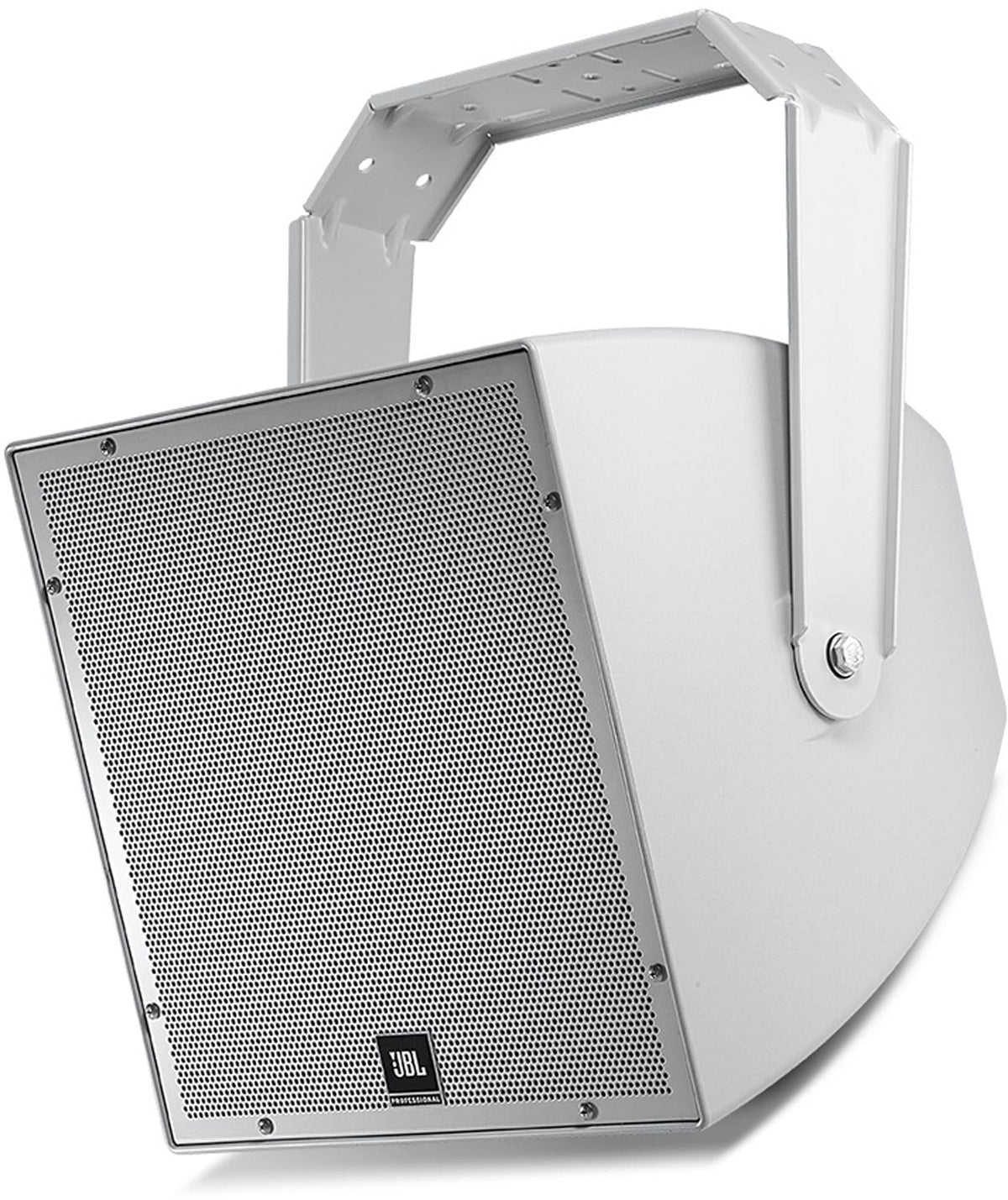

JBL AWC15LF All-Weather Compact Low-Frequency Speaker with 15" LF
All-Weather Compact Low-Frequency Speaker with 15" LF
The AWC15LF is a compact highly weather resistant loudspeaker for augmenting the low frequency capability of a sound system. AWC15LF is ideal for many applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music systems, swimming pools, and a wide variety of other outdoor and indoor venue types.
Why this product
Key Benefits
-
Low frequency reinforcement for outdoor applications
-
Highly weather-resistant IP56 rating
-
Component: 380 mm (15 in) woofer with Kevlarreinforced cone and 75 mm (3 in) voice coil.
-
500 Watt power handling (average continuous pink noise)
-
Frequency range down to 45 Hz
-
300 Watt 70V/100V multi-tap transformer or direct 8? low-impedance.
Technical details
Technical Specifications
System
- Low Frequency Driver
- 380 mm (15 in), Kevlar-reinforced cone, with weather treatment, 75 mm (3 in) voice coil, long throw.
Frequency
- Frequency Range (-10 dB)
- 45 Hz – 2.2 kHz
- Frequency Response (±3 dB)
- 70 Hz – 1.2 kHz
Performance & Coverage
- Maximum SPL
- Direct 8?: 121 dB (peaks of 127 dB) 300 W Tap: 119 dB (peaks of 125 dB)
Power
- Long-Term System Power Rating (IEC)
- 500 W (2000 W peak), 2 hrs.300 W (1200 W peak), 100 hrs.
- Nominal Impedance
- 8 ohms (in Direct mode)
- Transformer Taps
- 70V: 300W, 150W, 75W, 38W 100V: 300W, 150W, 75W
Connectivity
- Input Connection
- CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside openlug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
Physical
- Enclosure
- ABS with Glass enclosure, heavily braced
- Attachment
- Two M10 (course-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
- Grille
- Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
- Dimensions
- 486 x 486 x 479 mm (19.1 x 19.1 x 18.8), cabinet 507 mm (19.9 in) depth with gland nut 546 mm (21.5 in) including bracket extending to back
Environmental
- Environmental
- IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
Included & Optional Accessories
- Included Accessories
- U-bracket, matches loudspeaker color (gray or black), zinc-rich extra-thick powder coated, steel.
More details
Additional Information
Specifications:
- Sensitivity (2.83V @ 1m): 94 dB (Ave. 80 Hz – 300 Hz)
