JBL AWC62-BK Compact All-Weather Speaker - Black
Model AWC62-BK
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

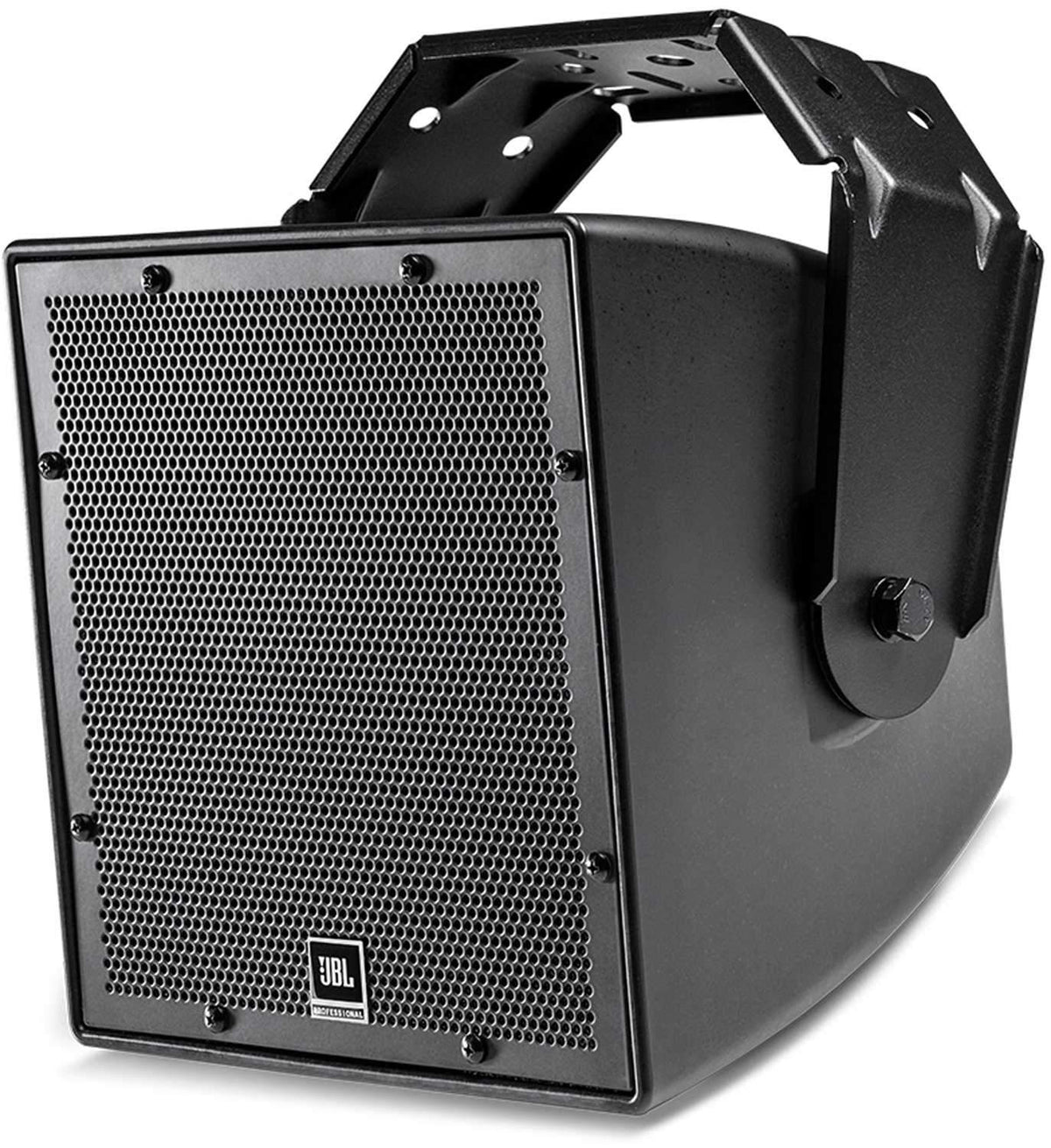

JBL AWC62-BK Compact All-Weather Speaker - Black
All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5" LF
The AWC62 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.
Why this product
Key Benefits
-
Highly weather-resistant IP56 rating.
-
Consistent 110° x 110° broadband pattern control.
-
Components: 165 mm (6.5 in) woofer with Kevlar-reinforced cone and 38 mm (1.5 in) voice coil. 25 mm (1 in) exit compression driver
-
Extraordinary clarity for speech, with extended frequency response for music.
-
Extraordinary clarity for speech, with extended frequency response for music.
-
175 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
-
High-power passive crossover network.
-
Overload protection.
-
70 Hz – 18 kHz frequency response.
-
120 Watt 70V/100V multi-tap (built-in transformer) or direct 8? low-impedance.
Technical details
Technical Specifications
System
- Crossover Network
- 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 3rd order low-pass to LF
- Low Frequency Driver
- Kevlar-reinforced cone with weather treatment, 38 mm (1.5 in) voice coil.
- High Frequency Driver
- 25 mm (1 in) diaphragm and voice coil diameter
- HF Driver Protection
- Minimum audibility SonicGuard™ HF overload protection
Frequency
- Frequency Range (-10 dB)
- 70 Hz – 18 kHz
- Frequency Response (±3 dB)
- 100 Hz – 16 kHz
Performance & Coverage
- Coverage Pattern
- 110º x 110º
- Directivity Factor
- 7.2 (1 k – 16 kHz)
- Directivity Index (DI)
- 7.9 dB (1 k – 16 kHz)
- Maximum SPL
- Direct 8?: 114 dB (peaks of 120 dB) 120 W Tap: 112 dB
Power
- Long-Term System Power Rating (IEC)
- 175 W 2 hrs. 120 W 100 hrs
- Nominal Impedance
- 8 ohms
- Transformer Taps
- 70V: 120W, 60W, 30W, 15W 100V: 120W, 60W, 30W
Connectivity
- Input Connection
- CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round- jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36").
Physical
- Enclosure
- ABS with Glass enclosure
- Attachment
- Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
- Grille
- Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
More details
Additional Information
Specifications:
- Sensitivity (2.83V @ 1m): 92 dB (Ave. 100 Hz – 18 kHz)
