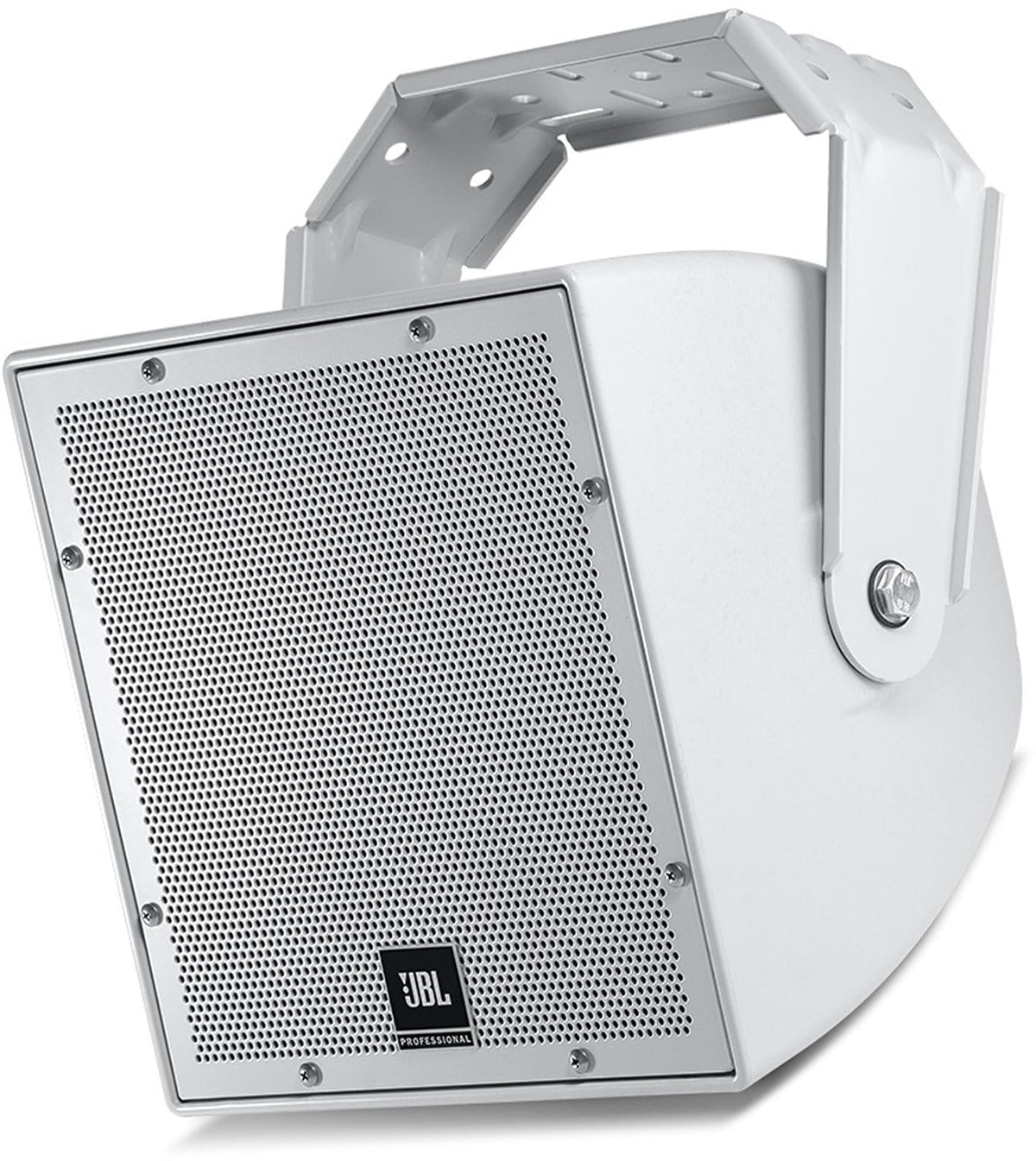

JBL AWC82 Loudspeaker
Model AWC82
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AWC82 All-Weather Compact 2-Way Coaxial Loudspeaker with 8" LF
All-Weather Compact 2-Way Coaxial Loudspeaker with 8" LF
The JBL AWC82 Loudspeaker is available in black or white.
Why this product
Key Benefits
-
Highly weather-resistant IP56 rating
-
Consistent 120° x 120° broadband pattern control
-
Components: 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil.25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.
-
Extraordinary clarity for speech, with extended frequency response for music.
-
Extraordinary clarity for speech, with extended frequency response for music.
-
250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
-
High-power passive crossover network.
-
Overload protection
-
80 Hz – 20 kHz frequency response.
-
200 Watt 70V/100V multi-tap (built-in transformer) or direct 8? low-impedance.
Technical details
Technical Specifications
System
- Crossover Network
- 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
- Low Frequency Driver
- Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil.
- High Frequency Driver
- 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
- HF Driver Protection
- Minimum audibility SonicGuard™ HF overload protection
Frequency
- Frequency Range (-10 dB)
- 80 Hz – 20 kHz
- Frequency Response (±3 dB)
- 100 Hz – 20 kHz
Performance & Coverage
- Coverage Pattern
- 120° x 120°
- Directivity Factor (Q)
- 8.1 (1 k – 16 kHz)
- Directivity Index (DI)
- 8.4 dB (1 k – 16 kHz)
- Maximum SPL
- Direct 8?: 118 dB (peaks of 124 dB) 200 W Tap: 117 dB
Power
- Long-Term System Power Rating (IEC)
- 250 W 2 hrs. 200 W 100 hrs
- Nominal Impedance
- 8 ohms
- Transformer Taps
- 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W
Connectivity
- Input Connection
- CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
Physical
- Enclosure
- ABS with Glass enclosure, heavily braced
- Attachment
- Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
- Grille
- Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
- Dimensions
- 300 x 300 x305 mm (11.8 x 11.8 x 12.0), cabinet 331 mm (13.0 in) including gland nut 359 mm (14.2 in) including bracket extending to back
- Colors
- Available in gray (similar to Pantone 420C) and black (-BK)
- Net Weight
- 9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket
Environmental
- Environmental
- IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
Included & Optional Accessories
- Included Accessories
- U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.
Shipping & Packaging
- Shipping Weight
- 14.1 kg (31.0 lb)
More details
Additional Information
Specifications:
- Sensitivity (2.83V @ 1m): 94 dB (Ave. 100 Hz – 20 kHz)
