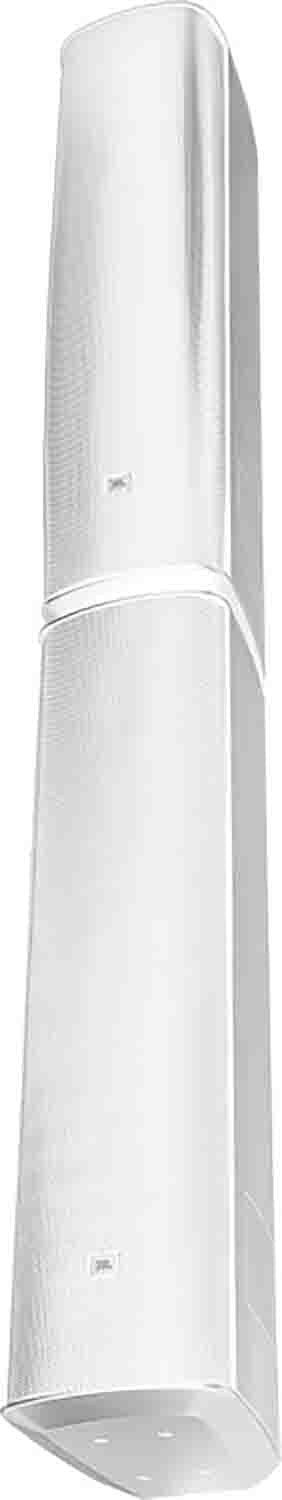

JBL CBT 1000E Line Array Column Speaker
Model CBT-1000E-WH
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL CBT 1000E Line Array Column Speaker
The white CBT 1000E Extension Loudspeaker from JBL features six 6.5" low-frequency drivers and a purpose-designed crossover network for use in the CBT 1000 + 1000E system. The drivers are equipped with neodymium magnet motors and 2" diameter voice coils, providing maximum flux in a compact package. The magnetic structure is magnetically shielded, and the copper pole tips reduce flux modulation and minimize distortion. The 0.62" long coil ensures linear drive and high power handling of 1500W in a compact driver.
Each driver is fitted with damped blended surrounds and coated sealed paper cones, offering moisture, UV, and salt resistance for outdoor capability. The extension speaker is housed in a tough fiberglass reinforced ABS cabinet, and its thick, heavy-duty aluminum grille ensures rust-free installation outdoors. A coupler plate is included for combining this extension speaker with the CBT 1000 array speaker (not included).
Why this product
Key Benefits
-
Six 6.5" high-excursion LF drivers
-
1500W RMS power handling
-
Built-in purpose-designed crossover network for combining with CBT 1000 array speaker
-
Coupler plate is included for joining this speaker unit with the array speaker
-
Doubles power handling of the array speaker and extends pattern control
Technical details
Technical Specifications
System
- Low Frequency Driver
- 6 x 6.5" (165 mm) driver
Frequency
- Frequency Response
- 38 Hz to 650 kHz at -10 dB
Performance & Coverage
- Nominal Sensitivity
- 2.83 V at 3.3'
Power
- Impedance
- Nominal: 8 Ohms
Connectivity
- Maximum Input Voltage
- 100 V RMS (2 hours)
Physical
- Enclosure Material
- Fiberglass reinforced ABS cabinet, powder-coated 1050 aluminum grille
- Finish
- White (RAL9016)
- Dimensions
- 9.9 x 40.2 x 11.6" (25 x 102 x 29 cm)
- Weight
- 44 lb (20 kg)
General
- Active or Passive
- Passive
More details
Additional Information
Specifications:
- Power Capacity:
- 1500 W (6000 W peak), 2 hours
- 1000 W (4000 W peak), 100 hours
- Maximum Sound Pressure Level (SPL):
- 124 dB full space
- 130 dB half-space (65 to 300 Hz)
