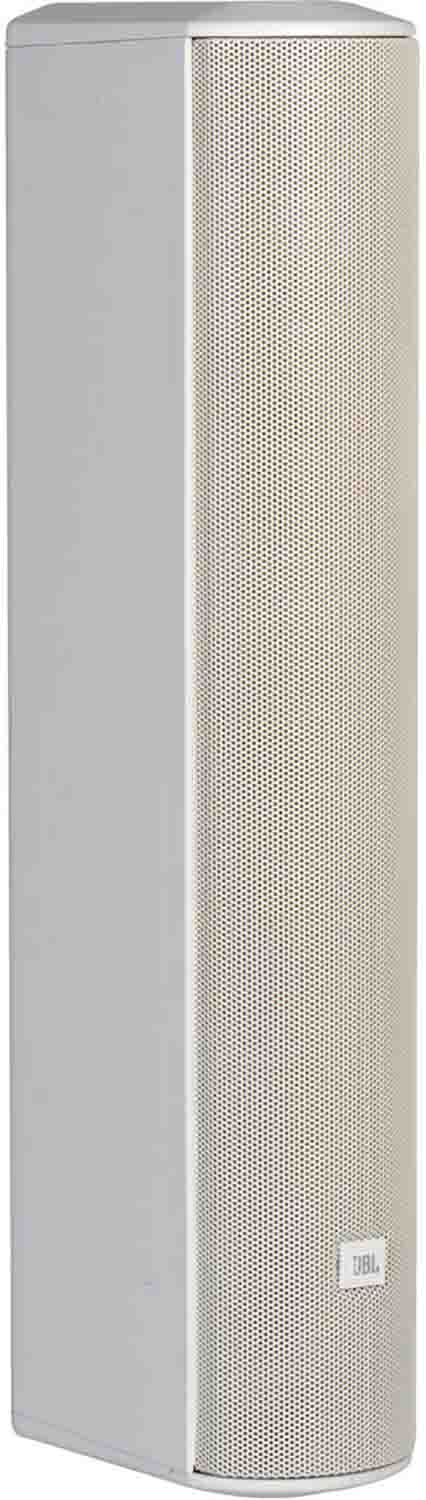

JBL CBT 50LA-1-WH Compact Line Array Column Speaker - White
Model CBT-50LA-1-WH
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL CBT 50LA-1-WH Compact Line Array Column Speaker - White
The CBT 50LA-1, featuring Constant Beamwidth Technology™, represents a breakthrough in pattern control. Utilizing analog delay beam-forming and amplitude tapering, it achieves consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.
Why this product
Key Benefits
-
Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
-
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
-
Dynamic SonicGuard™ overload protection
-
Built-in 70V/100V transformer, plus 8 ohm direct capability.
-
Swivel (pan) / tilt wall bracket included.
Technical details
Technical Specifications
System
- Drivers
- Eight 50 mm (2 in) Full-Range
Frequency
- Frequency Range (-10dB)
- 80 Hz – 20 kHz
Power
- Impedance
- 8 ohms
- Transformer Taps
- 60W, 30W, 15W, (7.5W at 70V only), and 8Ω through, via switch
Connectivity
- Insert Points

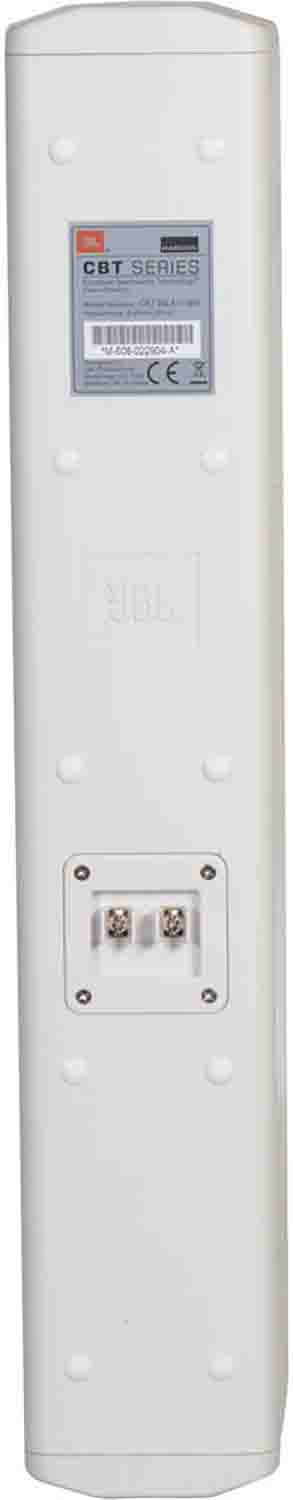

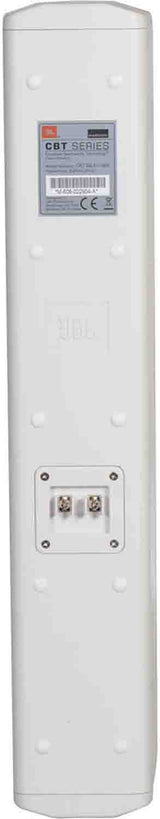

- Ten M6 insert points on back panel
Physical
- Enclosure
- Fiberglass reinforced ABS cabinet, painted aluminum grille
- Color
- White (-WH)
- Dimensions (H x W x D)
- 528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in)
- Net Weight
- 4.1 kg (9.0 lb)
Environmental
- Outdoor Capability
- IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture, and 200-hr ASTM G85 acid-air/salt-spray resistant.
Included & Optional Accessories
- Included Accessories
- Swivel (pan) / tilt wall bracket
General
- Vertical
- 20° (1.5 kHz - 16 kHz, ±10°)
- Horizontal
- 150° (average, 1 kHz – 4 kHz, ±20°)
- Speech mode
- 115 dB continuous average (121 dB peak)
- Music mode
- 111 dB continuous average (117 dB peak)
More details
Additional Information
Specifications:
- Coverage Angle:
- Sensitivity:
- 93 dB (speech mode, 2 kHz - 14 kHz)
- 89 dB (music mode, 300 Hz - 18 kHz)
- Power Rating:
- 150W (600W peak), 2 hrs
- 100W (400W peak), 100 hrs
- Maximum SPL (1m):
- Mounting:
- Included swivel (pan) / tilt wall bracket provides continuously variable ±80 degree left-right swivel aiming (at no up/down tilt — see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range.
- Ten threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
- Optional Accessories:
- MTC-PC2 terminal panel cover
- MTC-CBT-FM1 flush-mount low-profile wall-mount bracket
- MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
