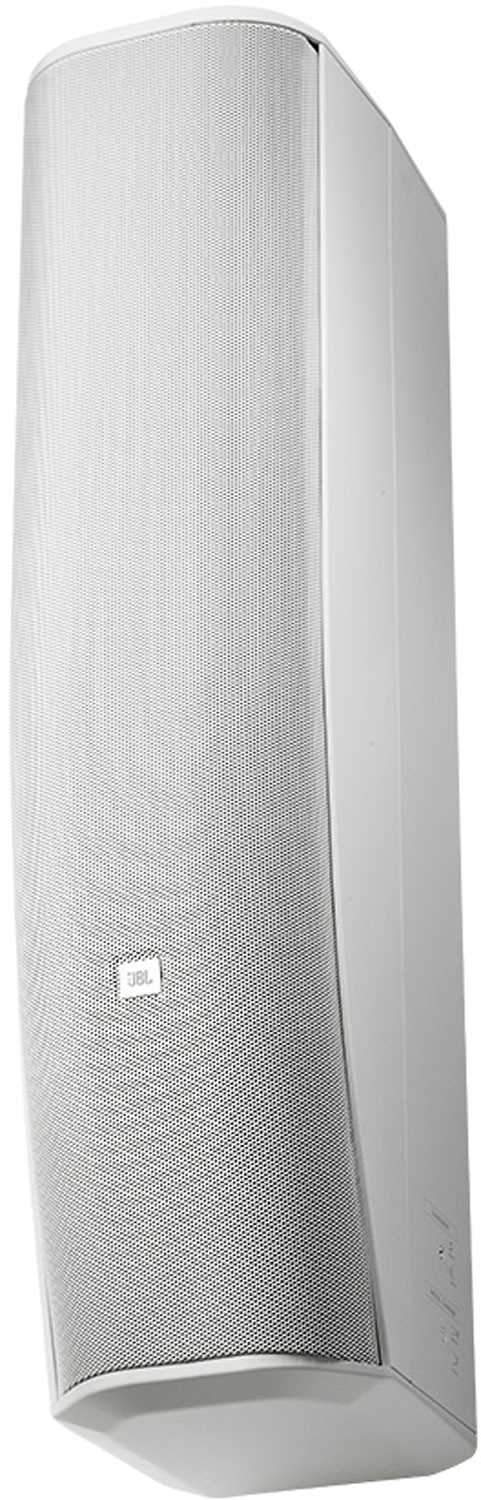

JBL CBT-70J-1 2000W Installation Speaker - White
Model CBT-70J-1-WH
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

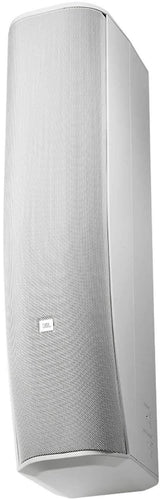

JBL CBT-70J-1 2000W Installation Speaker - White
Constant Beamwidth Technology™ Two-Way Line Array Column with Asymmetrical Vertical Coverage. With improved mounting bracket for enhanced aiming flexibility and stronger grille.

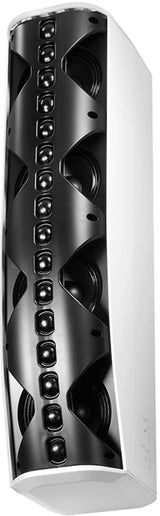

The CBT 70J-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers. (shown with included grille removed)
Why this product
Key Benefits
-
Asymmetrical vertical coverage sends more sound toward far area of room to make front-toback sound levels more consistent.
-
Components: Sixteen 25 mm (1 in) soft dome tweeters and four 125 mm (5 in) high-power LF drivers,
-
arranged coaxially.
-
Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
-
Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for
-
long-throw applications.
-
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
-
Dynamic SonicGuard™ overload protection of HF devices
-
Swivel (pan) / tilt wall bracket included.
Technical details
Technical Specifications
System
- Components
- Four 130 mm (5 in) LF drivers Sixteen 25 mm (1 in) HF drivers
- Low Frequency Drivers
- 4 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance, shielded.
- High Frequency Drivers
- 16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
Frequency
- Frequency Range (-10 dB)
- 60 Hz – 20 kHz
Performance & Coverage
- Coverage
- Vertical (selectable via switch) Narrow Mode: 25° (2 kHz - 16 kHz) (±10°) Broad Mode: 45° (750 Hz - 16 kHz) (±10°) Horizontal 150° (500 Hz – 8 kHz, ±20°)
- Max SPL
- Narrow: (speech mode) 125 dB cont ave (131 peak) (music mode) 120 dB cont ave (126 peak) Broad: (speech mode) 123 dB cont ave (129 peak) (music mode) 119 dB cont ave (125 peak)
Power
- Nominal Impedance
- 8 ohms
- Power Capacity
- 500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs
Connectivity
- Insert Points
- 10 M6 swivel (pan)/tilt (16 mm deep) insert points on back panel.
Physical
- Enclosure
- Fiberglass reinforced ABS cabinet, painted aluminum grille
- Colors
- Black or white (-WH)
- Mounting
- Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/-15 degree tilt, as well as 5 degree fixed increment points. Ten threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for OmniMount® 60.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
- Dimensions (H x W x D)
- 694 x 170 x 237 mm (27.4 x 6.7 x 9.3 in)
- Weight
- 9.5 kg (21 lbs.)
Environmental
- Outdoor Capability
- IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Included & Optional Accessories
- Included Accessories
- Swivel (pan) / tilt wall bracket
More details
Additional Information
Specifications:
- Sensitivity (2.83V@ 1m): Narrow: (speech mode) 98 dB (1 kHz - 8 kHz) (music mode) 93 dB (300 Hz - 18 kHz) Broad: (speech mode) 96 dB (1 kHz - 8 kHz) (music mode) 92 dB (300 Hz - 18 kHz)
