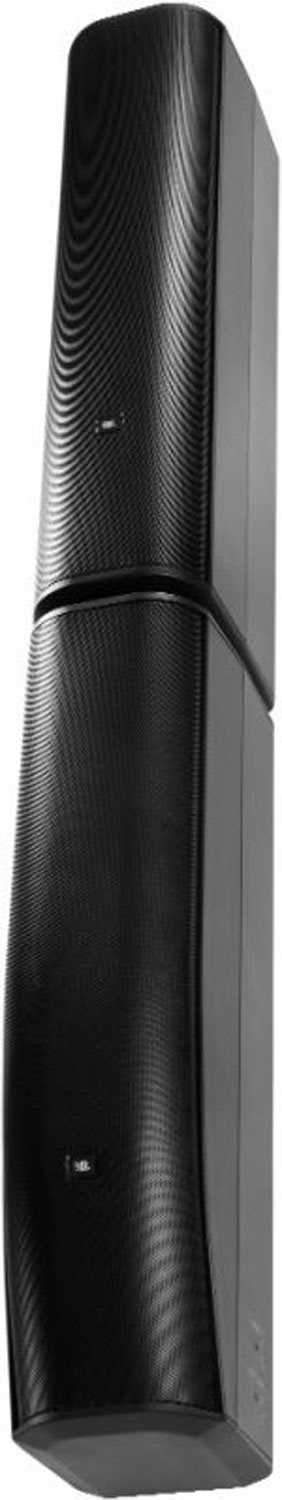

JBL CBT 70J-1 + 70JE-1 Extension
Model CBT-70JE-1
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

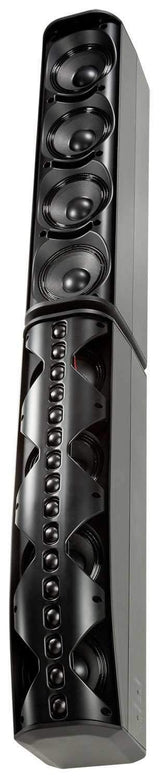

JBL CBT 70J-1 + 70JE-1 System Purpose-Designed Extension for CBT 70J-1 Line Array Column Speaker. With stronger grille.
Purpose-Designed Extension for CBT 70J-1 Line Array Column Speaker. With stronger grille.
When connected to a CBT 70J-1 line array column speaker, the CBT 70JE-1 Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers.
Why this product
Key Benefits
-
Components: Four 125 mm (5 in) high-power LF drivers (70JE-1)
-
500 Watt power handling (70JE-1)
-
Built-in purpose-designed crossover network, for combining with CBT 70J-1 (70JE-1)
-
Coupler plate included (70JE-1)
-
Extended pattern control (to 400 Hz for ± 20° control, to 200 Hz for substantial off-axis cancellation)
-
Extended bass response to 45 Hz.
-
Components: Sixteen 25 mm (1 in) soft dome tweeters and eight 125 mm (5 in) high-power LF drivers
-
Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing
-
Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for long-throw applications.
-
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode
-
Coupler plate and wall swivel (pan)/tilt bracket included (rear insert-point pattern fits standard third-party brackets)
Technical details
Technical Specifications
System
- Components
- Eight (8) 130 mm (5 in) LF drivers; Sixteen (16) 25 mm (1 in) HF drivers
- Low Frequency Drivers
- 8 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV and salt resistance, shielded.
- High Frequency Drivers
- 16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
- Components - 70JE-1
- Four (4) 130 mm (5 in) LF drivers
Frequency
- Frequency Range (-10 db)
- 45 Hz - 20 kHz
- Frequency Range (-10 dB) - 70JE-1
- 45 Hz – 700 Hz
Performance & Coverage
- Coverage
- Vertical (selectable via switch); Narrow Mode: 25° (2 kHz - 16 kHz) (±10°); Broad Mode: 45° (350 Hz - 16 kHz) (±10°); Horizontal 150° (500 Hz - 18 kHz, ±20°)
- Max SPL
- Narrow: (speech mode) 125 dB cont ave (131 peak), (music mode) 121 dB cont ave (127 peak); Broad: (speech mode) 124 dB cont ave (130 peak), (music mode) 120 dB cont ave (126 peak)
- Max SPL - 70JE-1
- 117 dB
Power
- Nominal Impedance
- 4 ohms
- Power Capacity
- 1000 W (4000 W peak), 2 hrs; 700 W (2800 W peak), 100 hrs
- Nominal Impedance - 70JE-1
- 8 ohms
- Power Capacity - 70JE-1
- 500 W (2000 W peak), 2 hrs; 350 W (1400 W peak), 100 hrs
Connectivity
- Insert Points
- 20 insert points total, 8 utilized for coupler plate, M6 (16 mm deep) on back panel
Physical
- Enclosure
- Fiberglass-reinforced ABS cabinet, painted aluminum grille.
- Mounting
- Coupler plate joins the CBT70J-1 and 70JE-1 end-to-end. Threaded points on coupler plate accepts OmniMount 60.0 Series and 120.0 Series compatible wall-mount brackets, as well as points for the swivel (pan)/tilt wall bracket that is included with CBT 70J-1. Twelve (12) additional M6 mounting points accept forged shoulder steel eyebolts or swivel clips for suspension.
- Dimensions (H x W x D)
- 1388 x 170 x 237 mm (54.8 x 6.7 x 9.3 in)
- Net Weight
- 20.4 kg (45 lb)
- Net Weight - 70JE-1
- 8.2 kg (18 lbs)
Environmental
- Outdoor Capability
- IP-54 rated, per IEC 529, UV, moisture and salt-spray resistant
Included & Optional Accessories
- Included Accessories
- Coupler plate
More details
Additional Information
Specifications:
- Sensitivity (@1m): Narrow: (speech mode) 98 dB @ 2.83V, 95 dB @ 2.0V (150 Hz - 8 kHz), (music mode) 94 dB @ 2.83V, 91 dB @ 2.0V (80 Hz - 18 kHz); Broad: (speech mode) 97 dB @ 2.83V, 94 dB @ 2.0V (100 - 8 kHz), (music mode) 93 dB @ 2.83V, 90 dB @ 2.0V (70 Hz - 18 kHz)
- Sensitivity (2.83V @ 1m) - 70JE-1: 90 dB full space, 96 dB half-space (65 Hz - 300 Hz)
* Includes CBT-70JE-1 Extension only. CBT 70J-1 Line Array Column Speaker sold separately.
