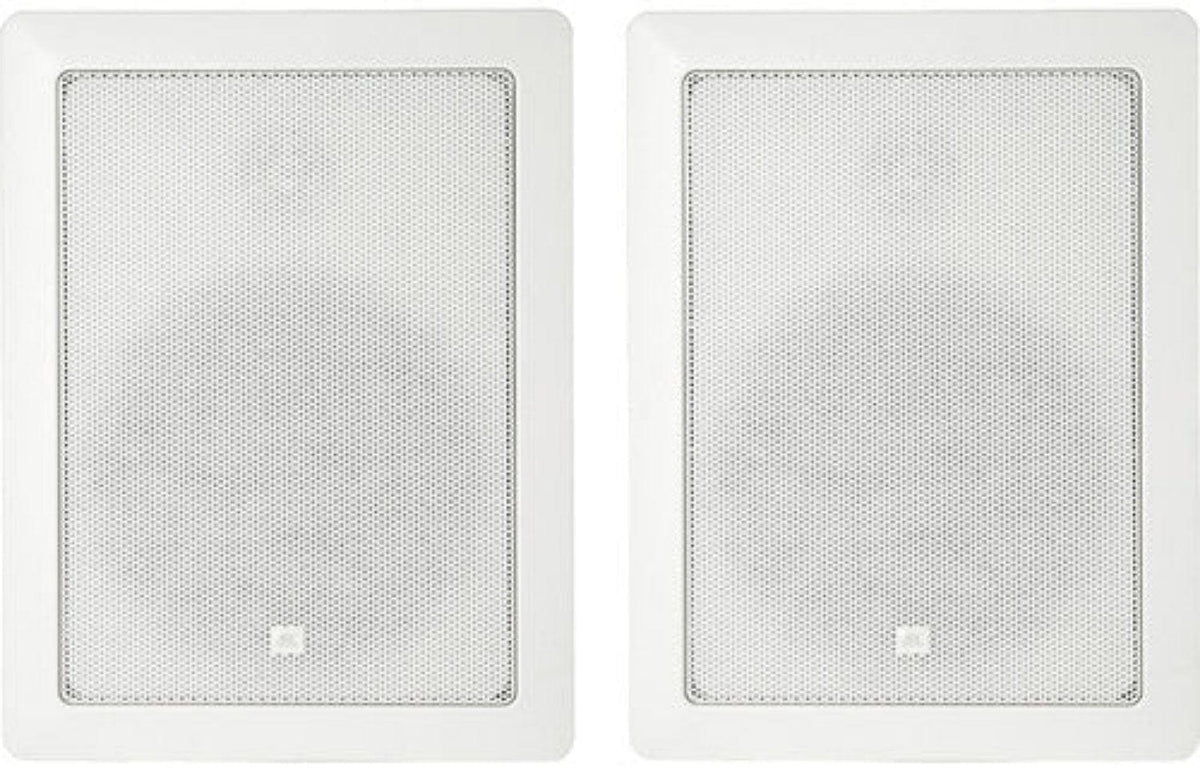

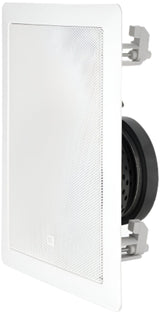

JBL Control 126 W In-Wall Loudspeaker
Model CONTROL-126W
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL Control 126 W Premium In-Wall Loudspeaker
The Control 126W is a premium in-wall speaker from the JBL Professionalfessional Control® Contractor line, designed for a range of applications including foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, and surround locations. It is ideal for any critical listening application where top performance is required with minimal visual impact.
Why this product
Key Benefits
-
Components
:
-
165 mm (6.5 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround.
-
25 mm (1 in) pure-titanium dome low diffraction swivel aimable titanium tweeter.
-
High-slope crossover for natural midrange sound.
-
Extended bandwidth performance of 38 Hz – 20 kHz.
-
50 W continuous (100 W program, 200 W peak) power handling (126 W).
Technical details
Technical Specifications
System
- LF
- 165 mm (6.5 in) polymer-coated aluminum cone
- HF
- 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability
- Crossover Network
- 3rd order (18 dB/oct) Low Pass to the woofer and 3rd order (18 dB/oct) High Pass to the tweeter
Frequency
- Frequency Range
- 38 Hz - 20 kHz (-10 dB)
Performance & Coverage
- Sensitivity
- 88 dB SPL
- Coverage Angle
- 180° Horizontal x 160° Vertical
Power
- Impedance
- 8 ohms
Connectivity
- Input Connectors
- Screw-down Euroblock-type connector, max wire size 14 AWG (1.5 mm²)
Physical
- Outside Dimensions (H x W x D)
- 280 x 215 x 105 mm (11 x 8.5 x 4.1 in), 99 mm (3.8 in) front of wall to back of speaker
- Maximum Wall Thickness
- 32 mm (1.25 in)
- Net Weight (each)
- 2.1 kg (4.5 lb)
Included & Optional Accessories
- Included Accessories
- Cutout template & paint shield
- Optional Accessories
- WB6 Rough-In Frame for new construction installation to wall studs
Shipping & Packaging
- Shipping Weight (each)
- 4.8 kg (10.5 lb)
General
- Optimum Air Cavity Behind Speaker
- 20 to 40 liters (0.7 to 1.4 cu ft)
- Cutout Size (H x W)
- 246 x 181 mm (9.7 x 7.2 in)
More details
Additional Information
Specifications:
- Power Rating:
- 200 W Peak
- 100 W Continuous Program Power
- 50 W Continuous Pink Noise
- Drivers:
