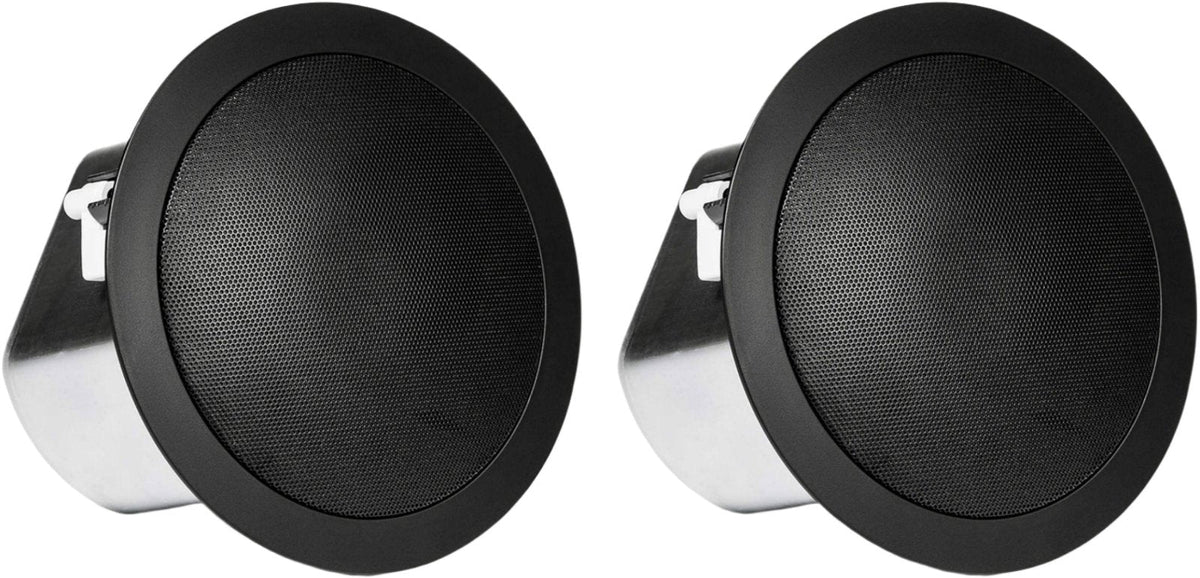

JBL CONTROL 12C/T 3-Inch Ceiling Speaker Pair - Black
Model CONTROL-12C-T-BK
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL CONTROL 12C/T 3-Inch Ceiling Speaker Pair - Black
Control 12C/T is a full-range ceiling speaker consisting of 76 mm (3 inch) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with a pre-attached blind-mount backcan for quick and easy installation.
Why this product
Key Benefits
-
76 mm (3 in) full-range driver
-
Blind-mount backcan for quick and easy install
-
Combined 70V/100V and low impedance direct operation 20 Watts at 8 ohm nominal setting 15W multi-tap at 70V/100V
-
68 Hz – 17 kHz bandwidth with wide 130° coverage
-
White or black (-BK)
Technical details
Technical Specifications
System
- Full-Range Driver
- 76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
Frequency
- Frequency Range (-10 dB)
- 68 Hz – 17 kHz
- Frequency Response (±3 dB)
- 95 Hz – 15 kHz
Performance & Coverage
- Nominal Sensitivity
- 84 dB
- Nominal Coverage Angle
- 130° conical coverage
- Directivity Factor (Q)
- 9.8
- Directivity Index (DI)
- 7.4 dB
Power
- Power Capacity (at low-Z)
- 40 Watts Continuous Program Power 20 Watts Continuous Pink Noise
- Nominal Impedance
- 8 ohms (in direct/bypass 8 setting)
Connectivity
- Input Connectors
- Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
- Connector Wiring
- Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Physical
- Materials
- ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
- Dimensions
- 196 mm diameter x 138 mm depth from back of baffle (7.7 in diameter x 5.4 in depth)
- Ceiling Thickness Range
- Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses.
- Safety Seismic Attachment
- One point, top surface
- Weight
- 1.6 kg (3.5 lbs, one speaker)
Certifications & Warranty
- Safety Agency
- UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Included & Optional Accessories
- Included Accessories
- C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille.
General
- Strain Reliefs
- Strain relief for two cables or two flex conduits via coupled clamping mechanism
- Ceiling Cutout Size
- Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
More details
Additional Information
Specifications:
- Transformer Taps: 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
- Rated Maximum SPL: 97 dB @ 1 m (3.3 ft) average, 103 dB peak
