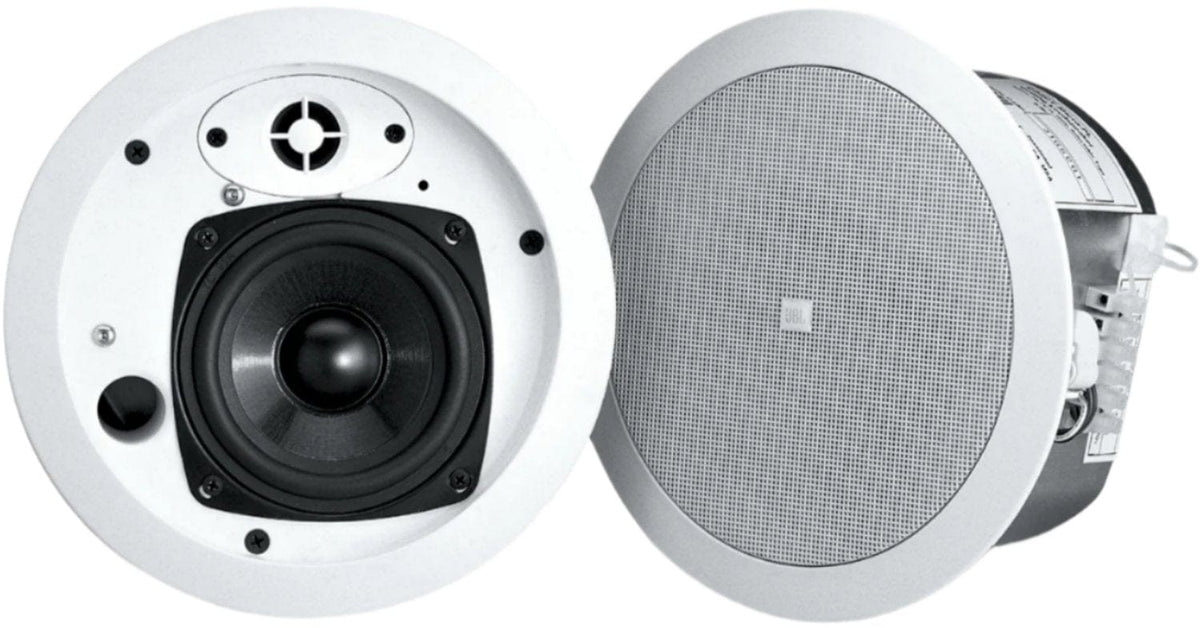

JBL Control 24CT Micro Plus In-ceiling Speaker
Model C24CT-MICROPLUS
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL Control 24CT Micro Plus Compact In-ceiling Speaker
The Control 24CT MicroPlus is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.
Why this product
Key Benefits
-
Frequency Response: Smooth across the spectrum
-
Crossover Network: Advanced design for very even coverage throughout the listening area
-
Components
:
-
115 mm (4.5 in) woofer with injection molded graphite cone and butyl rubber surround
-
12 mm (0.5 in) polycarbonate tweeter for extended response
-
Transformer: Includes 25 W multi-tap for 70 V/100 V systems
-
Depth: Shallow 105 mm (4.1 inches) from back of baffle
-
Packaging: Includes grille, backcan, and tile rails for fast installation and easy dealer stocking
Technical details
Technical Specifications
System
- Crossover Frequency
- 3.5 kHz, 3rd order low-pass plus 3rd order high-pass with conjugate
- High Frequency Driver
- 12 mm (0.5 in) polycarbonate
Frequency
- Frequency Range
- 80 Hz - 25 kHz
Performance & Coverage
- Coverage Angle
- 150° conical
- Coverage
- 150° conical
General
- 70 V
- 25 W, 12 W, 6 W taps
- 100 V
- 25 W, 12 W taps
More details
Additional Information
Specifications:
- Power Capacity:
- 30 W Continuous Program Power
- 15 W Continuous Pink Noise
- Transformer Taps:
- Nominal Sensitivity: 85 dB SPL @ 1 m (3.3 ft)
- Maximum SPL (1m): 99 dB @ 1 m (3.3 ft), 25 W tap
- Low Frequency Driver:
- 115 mm (4.5 in) IMG (injection molded graphite)
- 24 mm (1 in) voice coil
