JBL CONTROL-321CT C321C with 60W X-Former
Model CONTROL-321CT
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

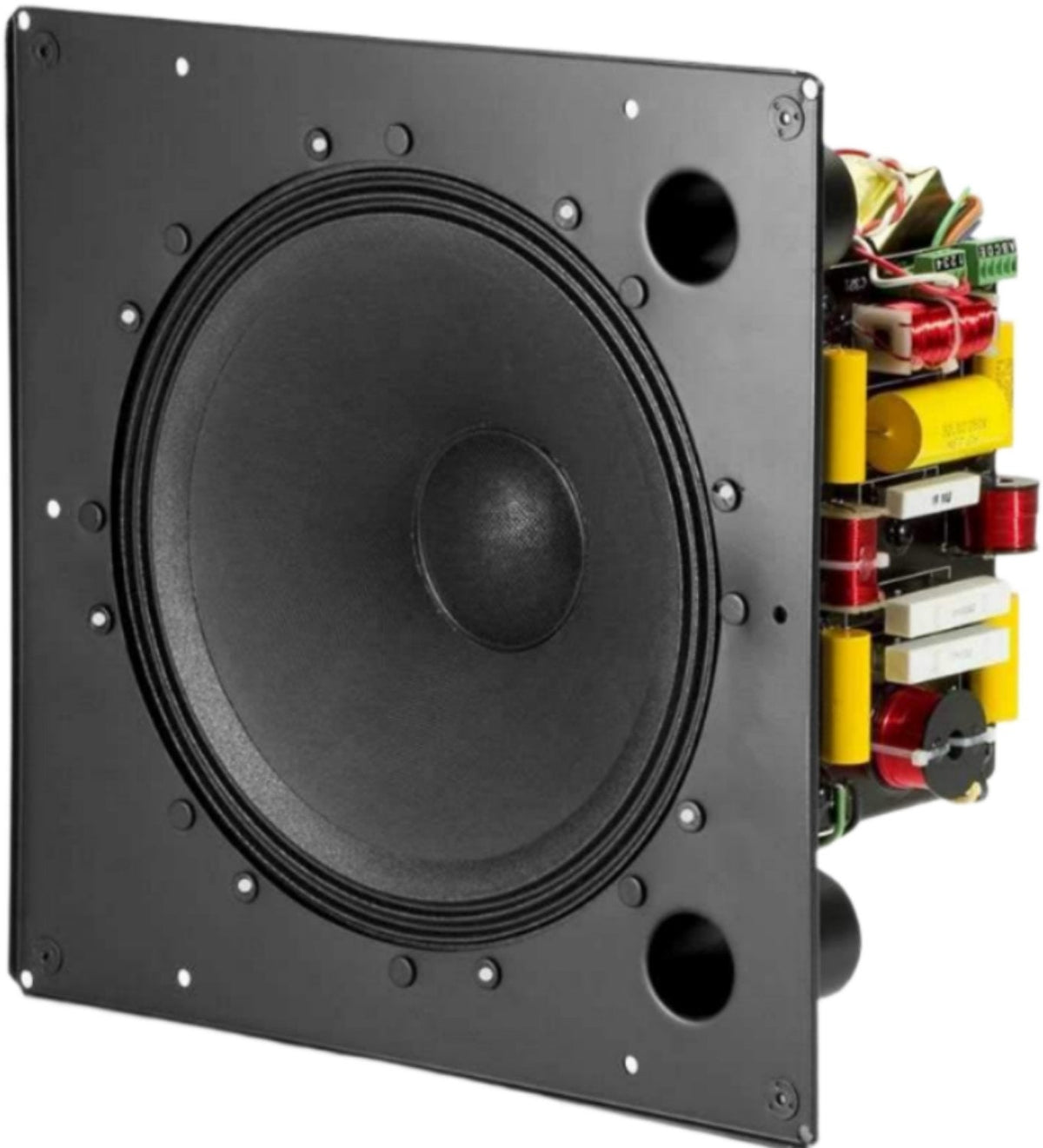

JBL CONTROL-321CT C321C with 60-Watt X-Former
12-Inch Coaxial Ceiling Loudspeaker with HF Compression DriverThe Control 321CT has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.
Features:- Consistent 90° broadband pattern control.
- Components: 300 mm (12 in) woofer with Kevlar-reinforcedcone with 50 mm (2 in) voice-coil; 25 mm (1. exit) compression driver.
- Extraordinary clarity for speech and vocals with extended frequency response for music.
- 250 Watt power handling with high sensitivity provides high SPL capability.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Clean, contemporary grille
- Frequency Range (-10 dB): 34 Hz - 18 kHz
- Power Rating: 200 W (600 W peak), 100 hrs
- Taps: 70V: 68W, 34W, 17W, 8.5W; 100V: 68W, 34W, 17W
- Frequency Response (±3 dB): 47 Hz - 16 kHz
- Coverage Pattern: 90° conical, broadband (Avg 1k - 16kHz)
- Directivity Factor (Q): 8.7 (1k - 16kHz)
- Directivity Index (DI): 9.4 dB (1k - 16kHz)
- Sensitivity (2.83V@ 1m): 94 dB measured half-space; 99 dB computed for competitive comparison
- Crossover Network: 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
- Dimensions (H x W x D): 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 240 mm (9.5 in)
