JBL CONTROL 322CT C 322C with 100W X-Former
Model CONTROL-322CT
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL CONTROL 322CT C 322C W/100W X-Former

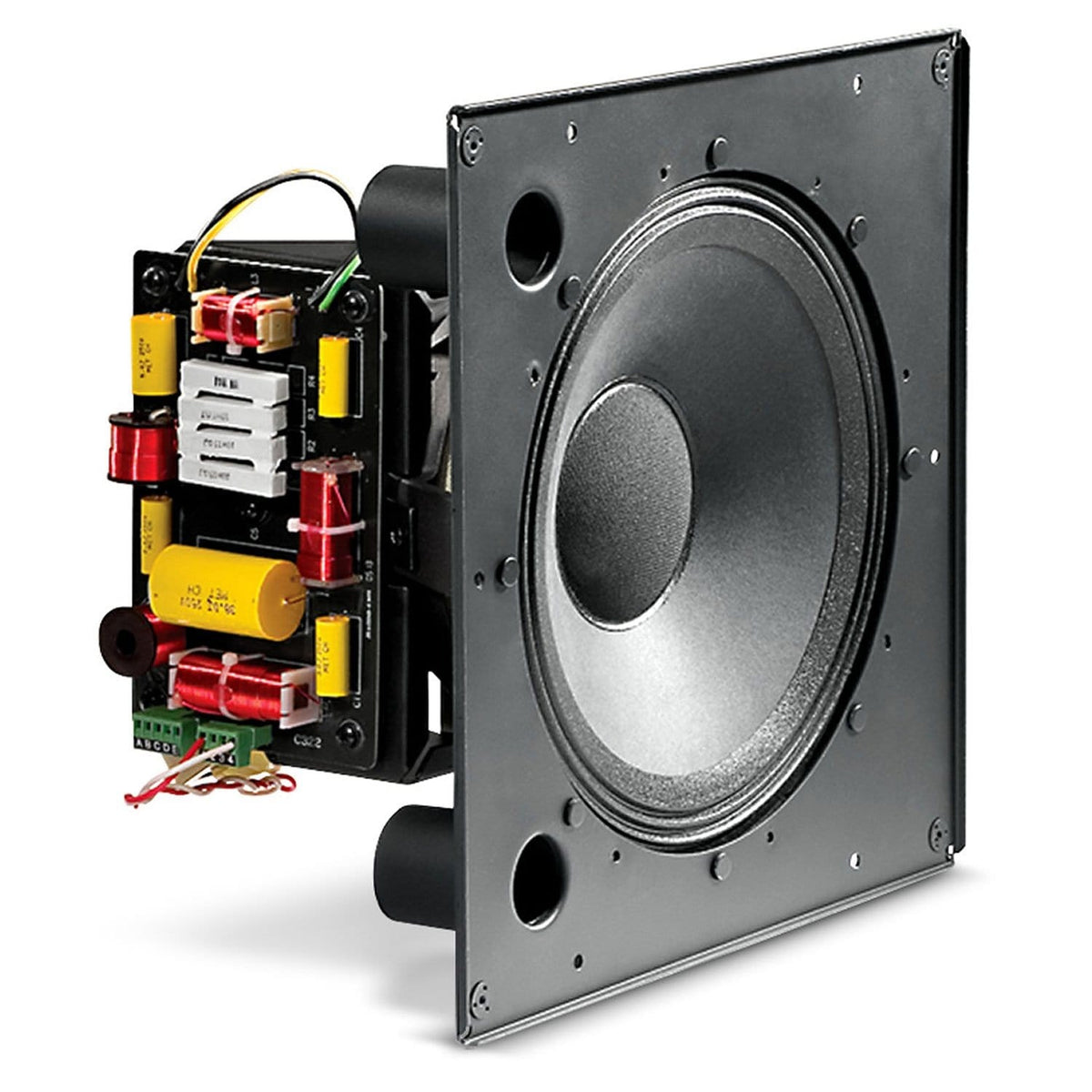

High-output 12 in. Coaxial Ceiling Loudspeaker
The 322CT delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.
Why this product
Key Benefits
-
Consistent 90° broadband pattern control.
-
Components • Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone. • Medium-format compression driver.
-
Extraordinary clarity for speech and vocals with extended frequency response for music.
-
Power handling of 400 Watts with high sensitivity provides high SPL capability.
-
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
-
Clean, contemporary grille and optional backbox available.
Technical details
Technical Specifications
Frequency
- Frequency Range (-10 dB)
- 32 Hz – 20 kHz
- Frequency Response (±3 dB)
- 48 Hz – 19 kHz
Performance & Coverage
- Coverage Pattern
- 90° conical, broadband (Avg. 1k - 16kHz)
- Directivity Factor (Q)
- 9 (1k - 16kHz)
- Directivity Index (DI)
- 9.5dB (1k - 16kHz)
- Maximum SPL
- 121 dB cont ave (124 dB peak)
Power
- Long-Term System Power Rating
- 400 W (1600 W peak), 2 hrs 250 W (1000 W peak), 100 hrs
- Taps
- 70V: 100W, 50W, 25W, & 12.5W 100V: 100W, 50W & 25W
Physical
- Dimensions (H x W x D)
- 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 240 mm (9.5 in)
More details
Additional Information
Specifications:
- Sensitivity (2.83V@ 1m): 95 dB measured half-space
