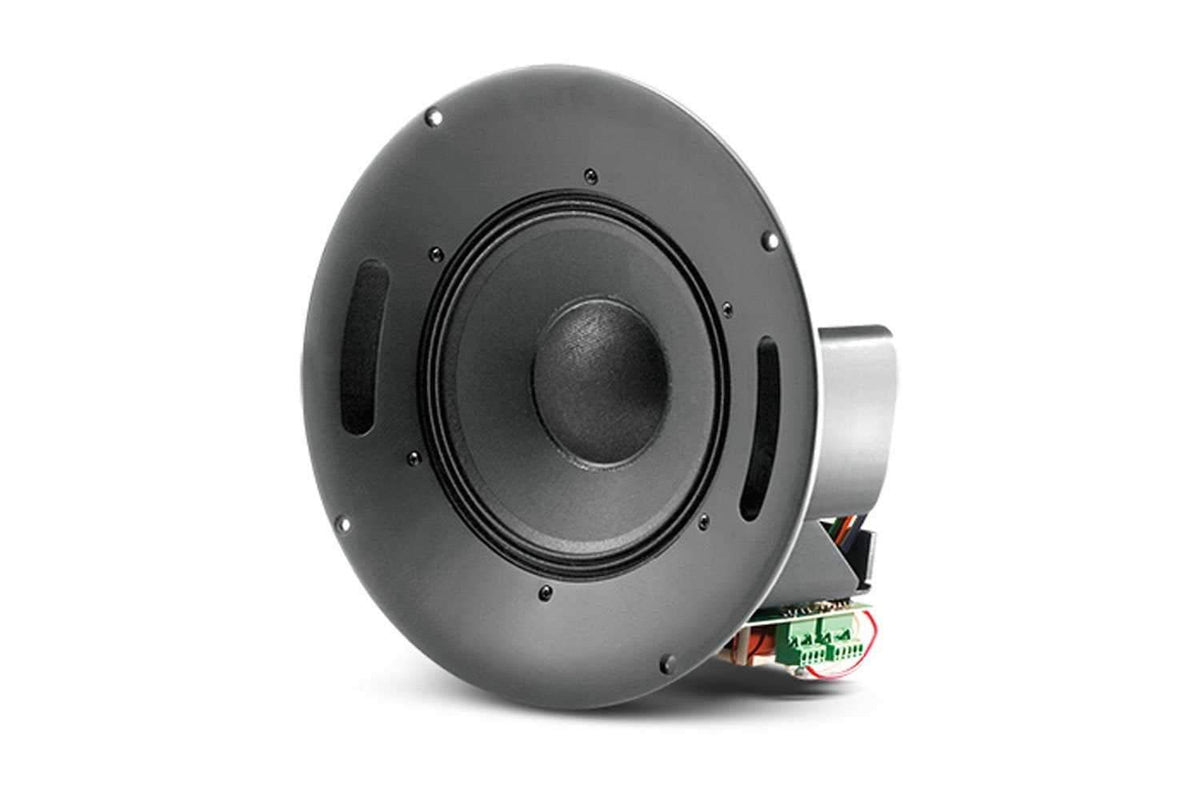

JBL CONTROL-328CT 8-IN Ceiling COAX Speaker
Model CONTROL-328C
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL CONTROL-328C 8-Inch Ceiling Coaxial Speaker with HF Compression Driver
Control 328C has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.
Why this product
Key Benefits
-
Consistent 120° broadband pattern control covers an extremely large area.
-
Shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver.
-
Components: 200 mm (8 in) woofer with Kevlarreinforced cone and 50 mm (2 in) voice-coil; 25 mm (1" exit) compression driver.
-
Extraordinary clarity for speech and vocals with extended frequency response for music.
-
250 Watt power handling with very high sensitivity provides high SPL capability.
-
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
-
Clean, contemporary grille
Technical details
Technical Specifications
System
- Crossover Network
- 1.9 kHz, 3rd order (18 dB/oct) high-pass plus conjugate
Frequency
- Frequency Range (-10 dB)
- 45 Hz - 18 kHz
- Frequency Response (±3 dB)
- 60Hz - 16 kHz
Performance & Coverage
- Coverage Pattern
- 120° conical, broadband
- Directivity Factor (Q)
- 7.0 (Avg 1k - 16kHz)
- Directivity Index (DI)
- 8.5dB (Avg 1k - 16kHz)
- Maximum SPL
- 118 dB cont ave (124 dB peak)
Power
- Power Rating
- 150 W (600 W peak), 100 hrs
- Taps
- 70V: 68W, 34W, 17W, 8.5W; 100V: 68W, 34W, 17W
- Nominal Impedance (321C)
- 8 ohms
Physical
- Dimensions (H x W x D)
- 305 mm (12.0 in.) diameter round baffle x depth from back of baffle of 218 mm (8.6 in)
General
- Long-Term System
- 250 W (1000 W peak), 2 hrs
More details
Additional Information
Specifications:
- Sensitivity (2.83V@ 1m): 93 dB measured half-space
