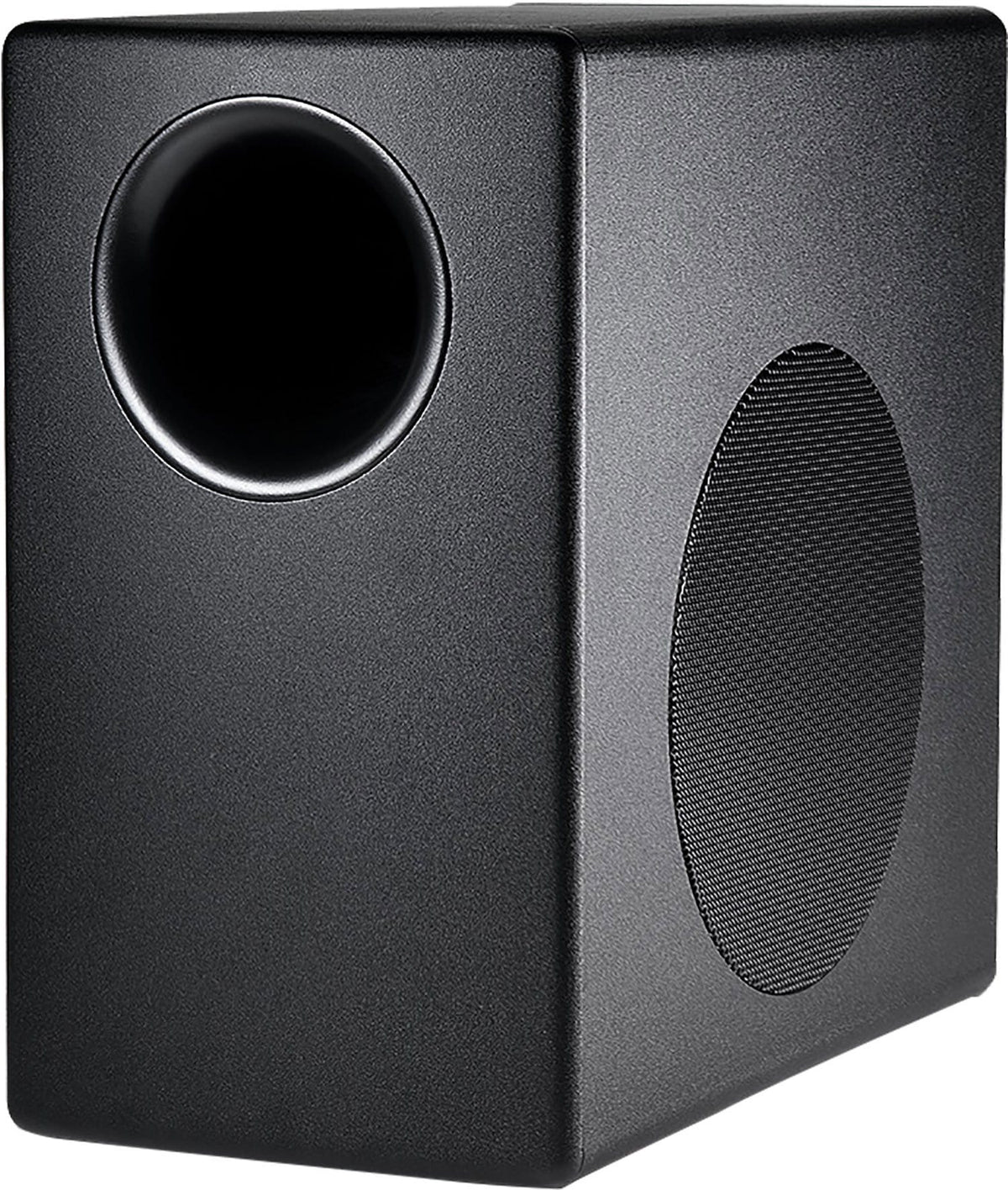

JBL CONTROL 50S/T Subwoofer
Model CONTROL-50S/T
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL CONTROL 50S/T Surface-Mount Subwoofer for Subwoofer-Satellite Loudspeaker System
The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance.
Why this product
Key Benefits
-
Full bandwidth 32 Hz - 20 kHz high fidelity sound
-
Selectable 70V/100V for distributed lines, or low impedance
-
Versatility for either two or four satellite speakers per system
-
Color: Black
Technical details
Technical Specifications
System
- Transducer Driver
- 200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former
Frequency
- Frequency Range (-10 dB)
- 32 Hz - 200 Hz
- Frequency Response (±3 dB)
- 50 Hz - 150 Hz
Performance & Coverage
- Nominal Sensitivity
- (2.83V, 1m) 95 dB (near corner), 89 dB (center of wall)
- Rated Maximum SPL (1m)
- 115 dB average, 121 dB peak (near corner); 109 dB average, 115 dB peak (center of wall)
Power
- Power Capacity
- 300 Watts Continuous Program Power (2 hrs); 150 Watts Continuous Pink Noise (2 hrs); 200 Watts Continuous Program Power (100 hrs); 100 Watts Continuous Pink Noise (100 hrs)
- Nominal Impedance
- 8 ohms (in bypass/thru mode)
Connectivity
- Input Connectors
- Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm2)
Physical
- Material
- Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal.
- Dimensions (H x W x D) Cabinet
- 356 x 391 x 203 mm (14.0 x 15.4 x 8.0 in)
- Net Weight
- 9.0 kg (20 lbs)
Included & Optional Accessories
- Included Accessories
- Wall bracket (both speaker and wall parts) with 4 pcs M6 screws to attach to speaker, terminal cover, 6 pcs 2-pin locking connectors, M6 screw for safety lanyard attachment.
General
- Wall Bracket
- 15 mm (0.6 in) deep
- Wall Bracket
- 2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel
More details
Additional Information
Specifications:
- Transformer Taps: 80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru
