JBL Control 64P/T Loudspeaker
Model C64P-T-WH
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

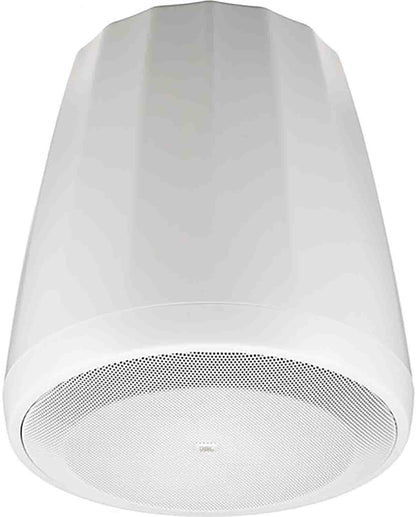

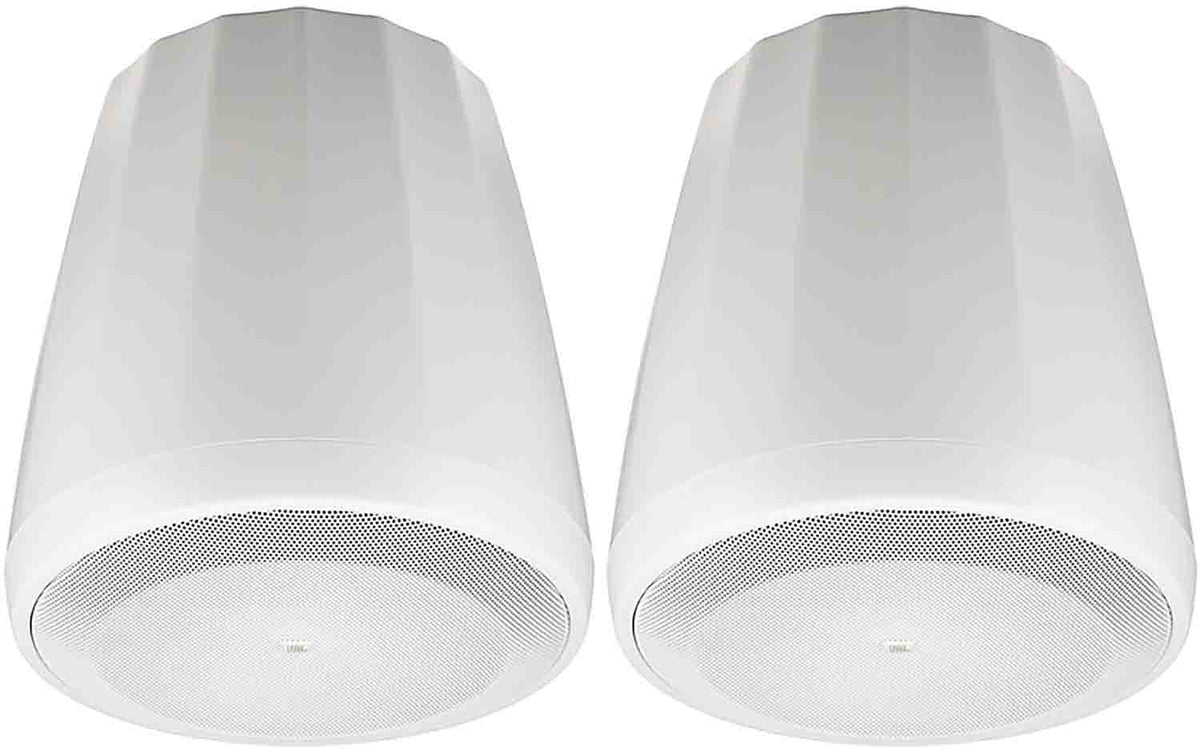

JBL Control 64P/T Compact Full-Range Pendant Loudspeaker
The Control 64P/T is a compact full-range, pendant-type loudspeaker that provides superb sound reproduction for rooms with open architecture ceilings and other locations where a pendant form factor is desired.
Why this product
Key Benefits
-
100 mm (4 in) full-range driver with polypropylene-coated cone and 20 mm (0.8 in) high temperature voice coil.
-
Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
-
Stylish design, available in black or white (-WH).
-
UL listed (speaker and hanging cable system).
-
8Ω and 70V/100V operation
Technical details
Technical Specifications
Frequency
- Frequency Range (-10 dB)
- 65 Hz - 15 kHz
- Frequency Response (±3 dB)
- 85 Hz - 14 kHz
Performance & Coverage
- Nominal Sensitivity
- 88 dB
- Coverage Angle
- 120° conical
- Directivity Factor (Q)
- 6.2
- Directivity Index (DI)
- 7.3 dB (averaged 1 kHz – 16 kHz)
Power
- Impedance
- 8 Ω
- 70V
- 30W, 15W, 7.5W & 3.7W
- 100V
- 30W, 15W, 7.5W
Physical
- Enclosure
- High impact polystyrene
- Grille
- Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
- Net Weight (each)
- 2.35 kg (5.2 lbs)
- Colors
- Available in white (-WH). Paintable
Included & Optional Accessories
- Optional Accessories
- MTC-PC60 top panel / terminal cover
Shipping & Packaging
- Shipping Weight (pair)
- 6.07 kg (13.4 lbs)
More details
Additional Information
Specifications:
- Power Rating:
- 100 W Continuous Program (2 hrs)
- 50 W (200 W peak), Continuous Pink Noise (2 hrs)
- 40 W (160 W peak), Continuous Pink Noise (100 hrs)
- Maximum Input Voltage:
- 18.2 V RMS (2 hrs)
- 36.4 V peak
- Maximum SPL (1m):
- 105 dB continuous pink noise
- 111 dB peak
- Transformer Taps:
- Transformer Insertion Loss:
- 0.94 dB @ 3.7W
- 0.89 dB @ 7.5W
- 0.83 dB @ 15W
- 0.94 dB @ 30W
- Drivers:
- 100 mm (4 in) polypropylene-coated paper with cloth surround
- 20 mm (0.8 in) copper voice coil
- Outdoor Capability:
- Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV
- IP44 capability per IEC 529 – splash-proof rating
- Input Connectors:
- Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire
- Connectors paralleled for input and loop-thru
- Max. wire 12 AWG (2.5 mm²)
- Rubber terminal covers included
- Suspension:
- Two identical suspension systems (one as main suspension cable and the other as safety cable)
- Each system consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket
- Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb)
- Safety Agency:
- Speaker listed per UL1480
- Transformer registered per UL1876
- In accordance with IEC60849/EN60849
- Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81
- Dimensions (H x W x D):
- 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet
- 279 mm (11.0 in) to top of suspension bracket
- Included Accessories:
- Two suspension cable systems (see “Suspension”, above)
- Two 2-pin removable locking euro-block connectors
- Two rubber covers for euro-block connectors
