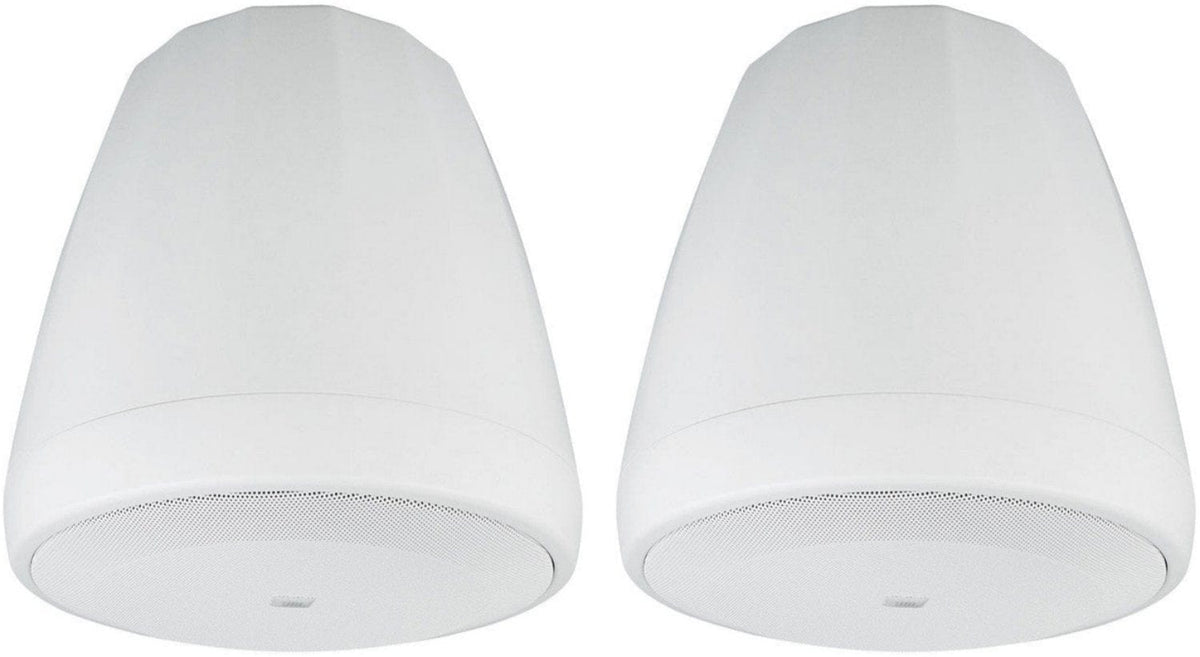

JBL Control 67P/T Speaker
Model C67P-T-WH
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL Control 67P/T Extended Range Full-Range Pendant Speaker
Control 67P/T incorporates a large enclosure and high-power 6.5” (165 mm) transducer for extended bass and high-fidelity performance. The extra-large RBI Radiation Boundary Integrator™ provides outstanding pattern control, which can allow fewer speakers to cover a venue.
Why this product
Key Benefits
-
RBI Radiation Boundary Integrator Technology
-
120° conical coverage
-
6.5" (165 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
-
75 Watts, 8 ohms and 60W multi-tap transformer
-
White
Technical details
Technical Specifications
System
- LF
- 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
- HF
- 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Frequency
- Frequency Range (-10 dB)
- 58 Hz – 18 kHz
- Frequency Response (±3 dB)
- 78 Hz – 16 kHz
Performance & Coverage
- Nominal Sensitivity
- 90 dB
- Coverage Angle
- 120° conical
- Directivity Factor (Q)
- 5.7
- Directivity Index (DI)
- 7.5 dB
Power
- Impedance
- 8 ohms
- 70V
- 60W, 30W, 15W & 7.5W
- 100V
- 60W, 30W, 15W
Physical
- Enclosure
- High impact polystyrene
- Grille
- Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
- Net Weight (each)
- 5.2 kg (11.5 lbs)
- Colors
- Available in white (-WH). Paintable
Included & Optional Accessories
- Optional Accessories
- MTC-PC60 top panel / terminal cover
Shipping & Packaging
- Shipping Weight (pair)
- 12.3 kg (27 lbs)
More details
Additional Information
Specifications:
- Power Rating:
- 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)
- 150 Watts Continuous Program Power
- Maximum SPL (1m):
- 109 dB continuous pink noise
- 115 dB peak
- Transformer Taps:
- Transformer Insertion Loss:
- 0.5 dB @ 7.5 W
- 0.5 dB @ 15 W
- 0.6 dB @ 30 W
- 0.7 dB @ 60 W
- Drivers:
- Outdoor Capability:
- Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV
- IP44 capability per IEC 529 – splashproof rating
- Input Connectors:
- Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire
- Connectors paralleled for input and loop-thru
- Max. wire 12 AWG (2.5 mm²)
- Rubber terminal covers included
- Suspension:
- Two identical suspension systems (one as main suspension cable and the other as safety cable)
- Each system consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket
- Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb)
- Safety Agency:
- Speaker listed per UL1480
- Transformer registered per UL1876
- In accordance with IEC60849/EN60849
- Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81
- Dimensions (H x W x D):
- 312 mm (12.3 in) diameter x 330 mm (13.0 in) height to top of cabinet
- 350 mm (13.8 in) to top of suspension bracket
- Included Accessories:
- Two suspension cable systems (see “Suspension”, above)
- Two 2-pin removable locking euro-block connectors
- Two rubber covers for euro-block connectors
