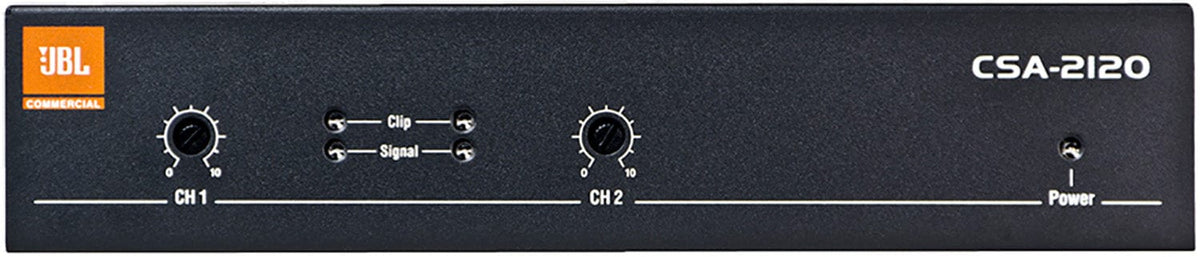

JBL CSA-2120 Amplifier
Model NCSA2120R-U-US
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL CSA-2120 2 x 120W Audio Amplifier
The CSA-2120 power amplifier is specifically designed for professional-grade performance in commercial and installed sound applications. This two-channel model offers a straightforward analog front-end processing capability, complemented by a switch-mode universal power supply.
Why this product
Key Benefits
-
2 x 120 W at 4/8 Ohms
-
Plenum Rated (UL2043)
-
Compact size and light weight
-
Convection Cooled
-
Auto-standby mode for energy savings
-
Summing RCA inputs for each channel
Technical details
Technical Specifications
Performance & Coverage
- Sensitivity
- 1.4 Vrms
- Signal to Noise Ratio
- Greater than 100 dB - 1kHz, A-weighted
Power
- Load Impedance
- Stable from 2 - 16 Ohms
Connectivity
- Input Impedance
- Balanced 20K Ohms/Unbalanced 10K Ohms
- Max Input
- +20 dBu Typical
Physical
- Dimensions
- 8.2" x 1.7" x 7" (209 mm x 44 mm x 178 mm)
Included & Optional Accessories
- Included Accessories
- Rack mounting kit
Shipping & Packaging
- Shipping Weight
- 2.9 Lbs (1.3 Kg)
More details
Additional Information
Specifications:
- Output: 120 W @ 4/8 Ohms (1 kHz Power, THD+N
- Frequency Response: +/- 1 dB (@ 1 W into 4 or 8 Ohms)
