JBL CWT128 Loudspeaker
Model CWT128
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

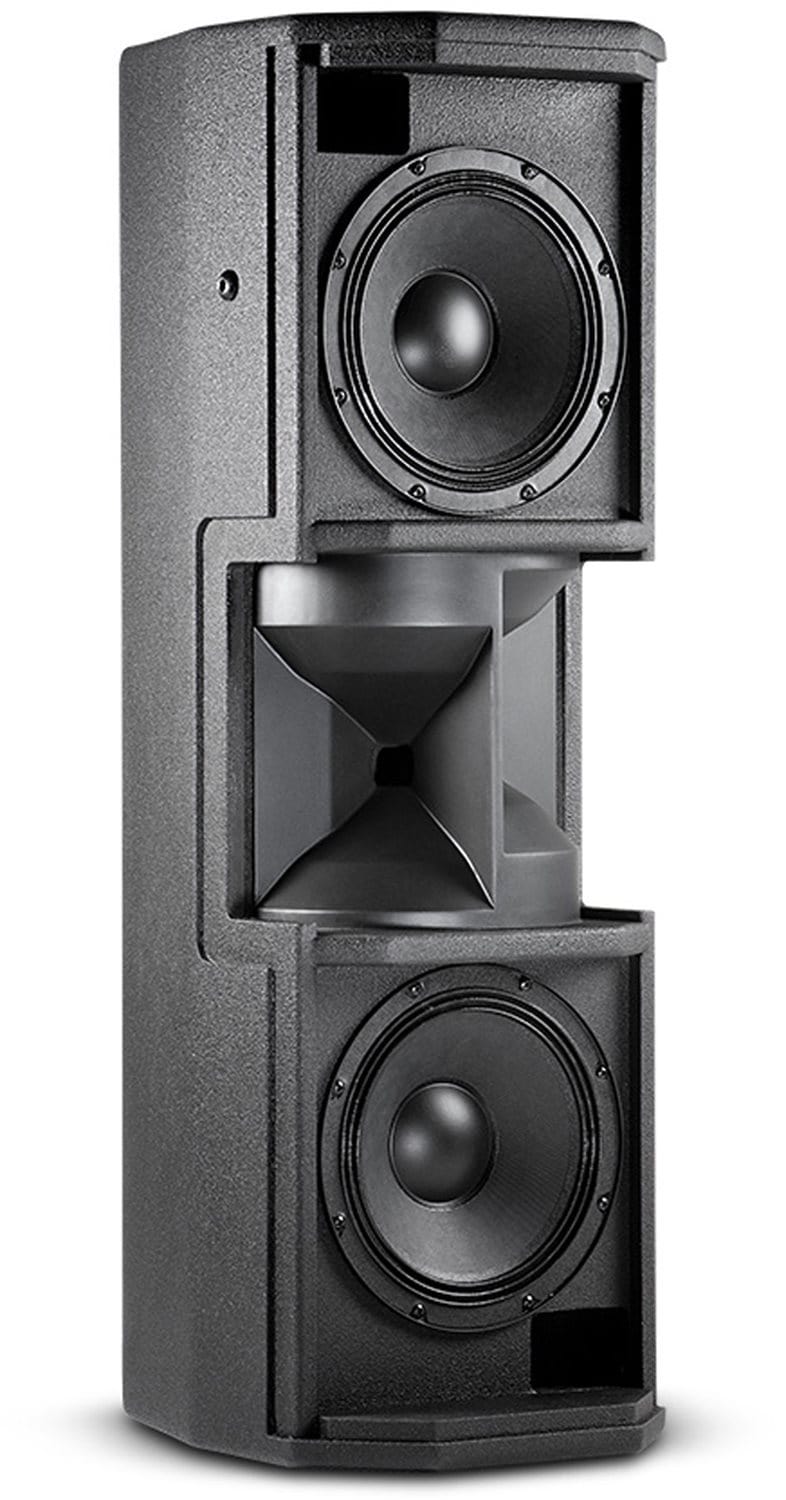

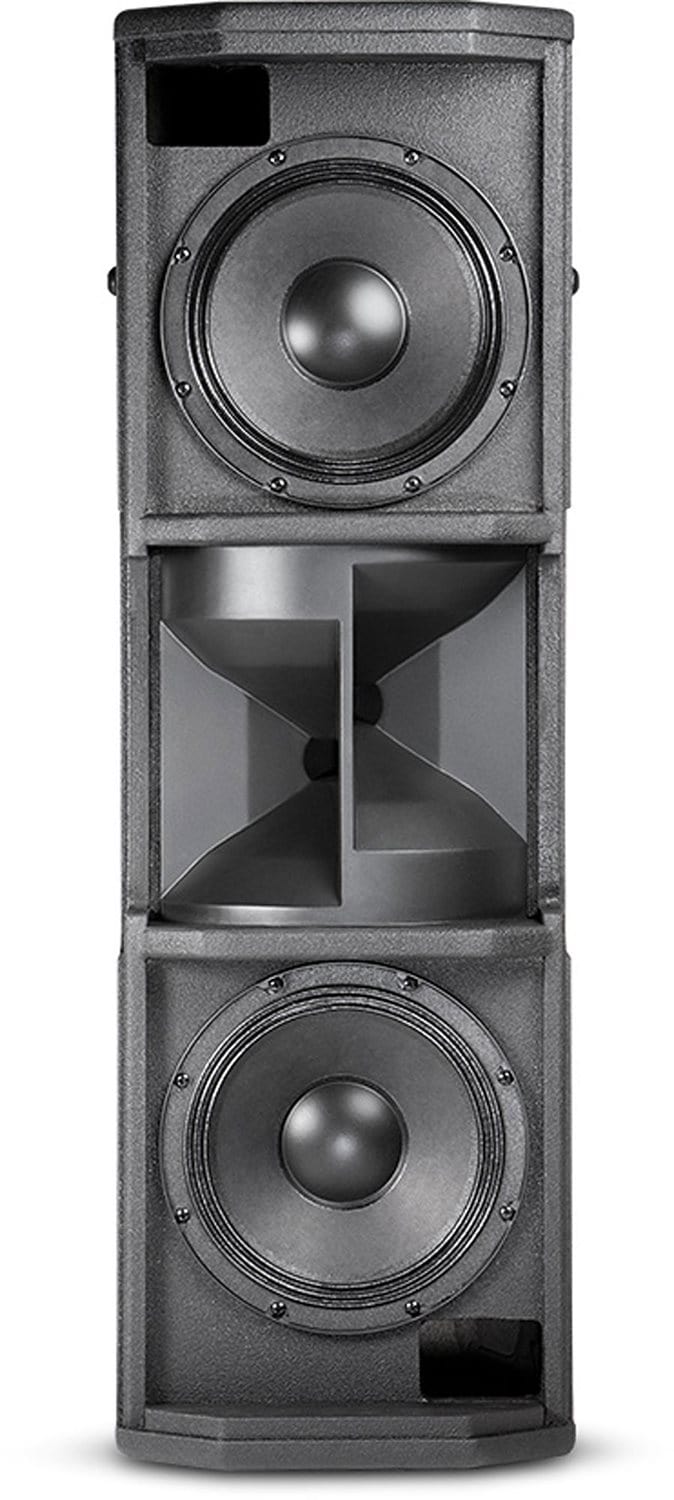

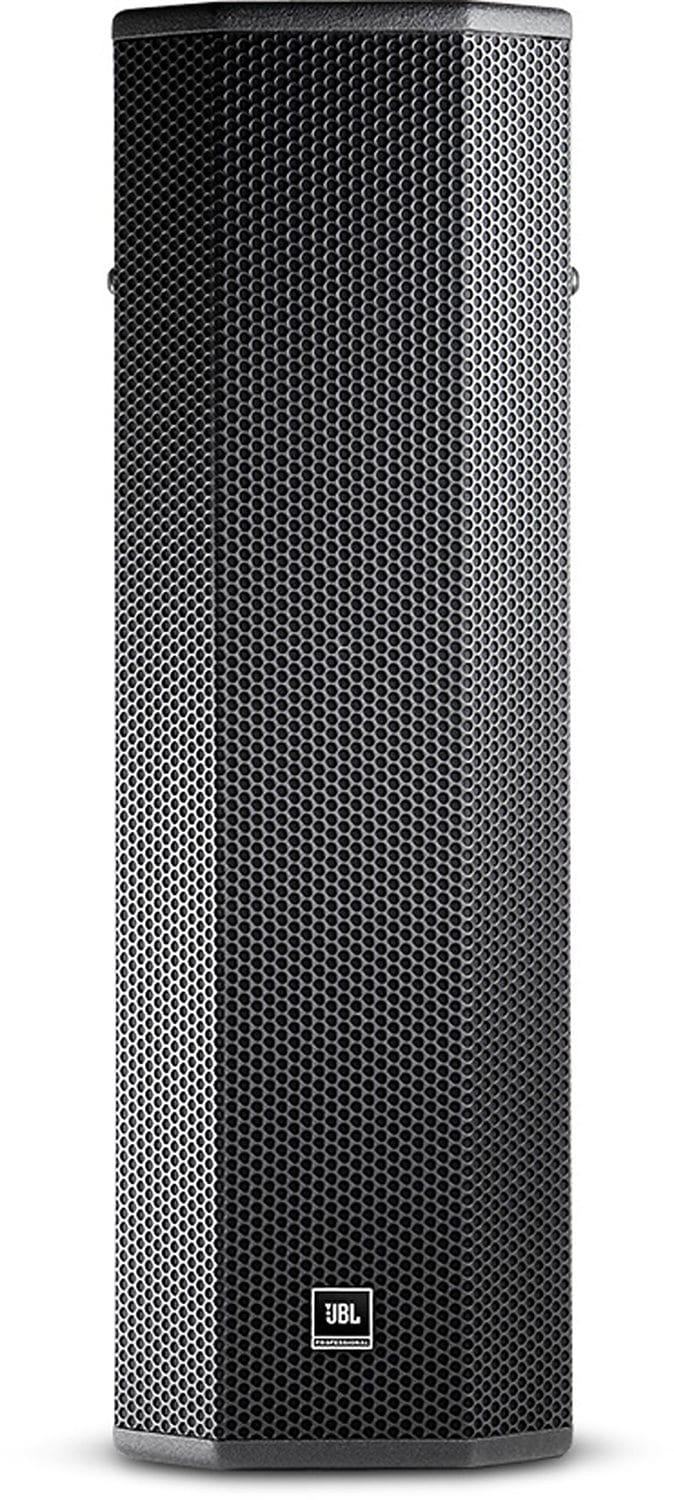

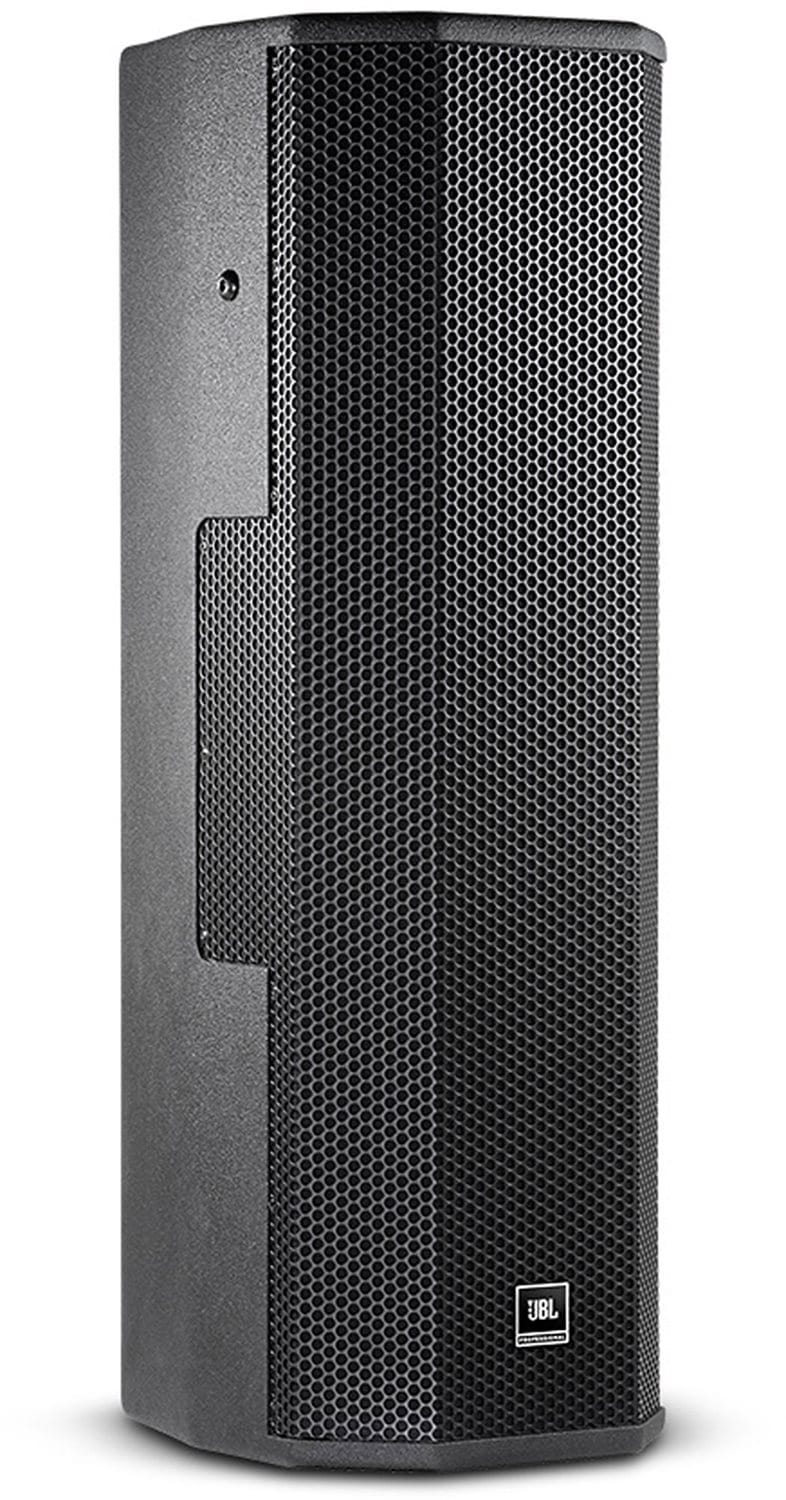

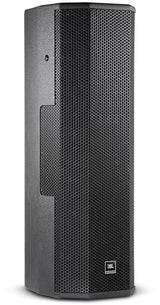

JBL CWT128 Dual 8" 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology
The JBL Crossfired Waveguide Technology CWT128 is a compact full-range 2-way system designed to provide extremely wide-angle coverage with maximum bandwidth and SPL in a single system package. The unique wide coverage pattern horn is designed to provide seamless coverage to 160-degrees horizontally. CWT128’s small footprint makes the system ideal for nearly all architecturally sensitive environments, taking up about a third of the footprint of two speakers splayed side by side.
Why this product
Key Benefits
-
Seamless horizontal coverage across a full 160°
-
Compact size and small footprint make it ideal for architecturally sensitive environments
-
Dual 205 mm (8 in) LF transducers
-

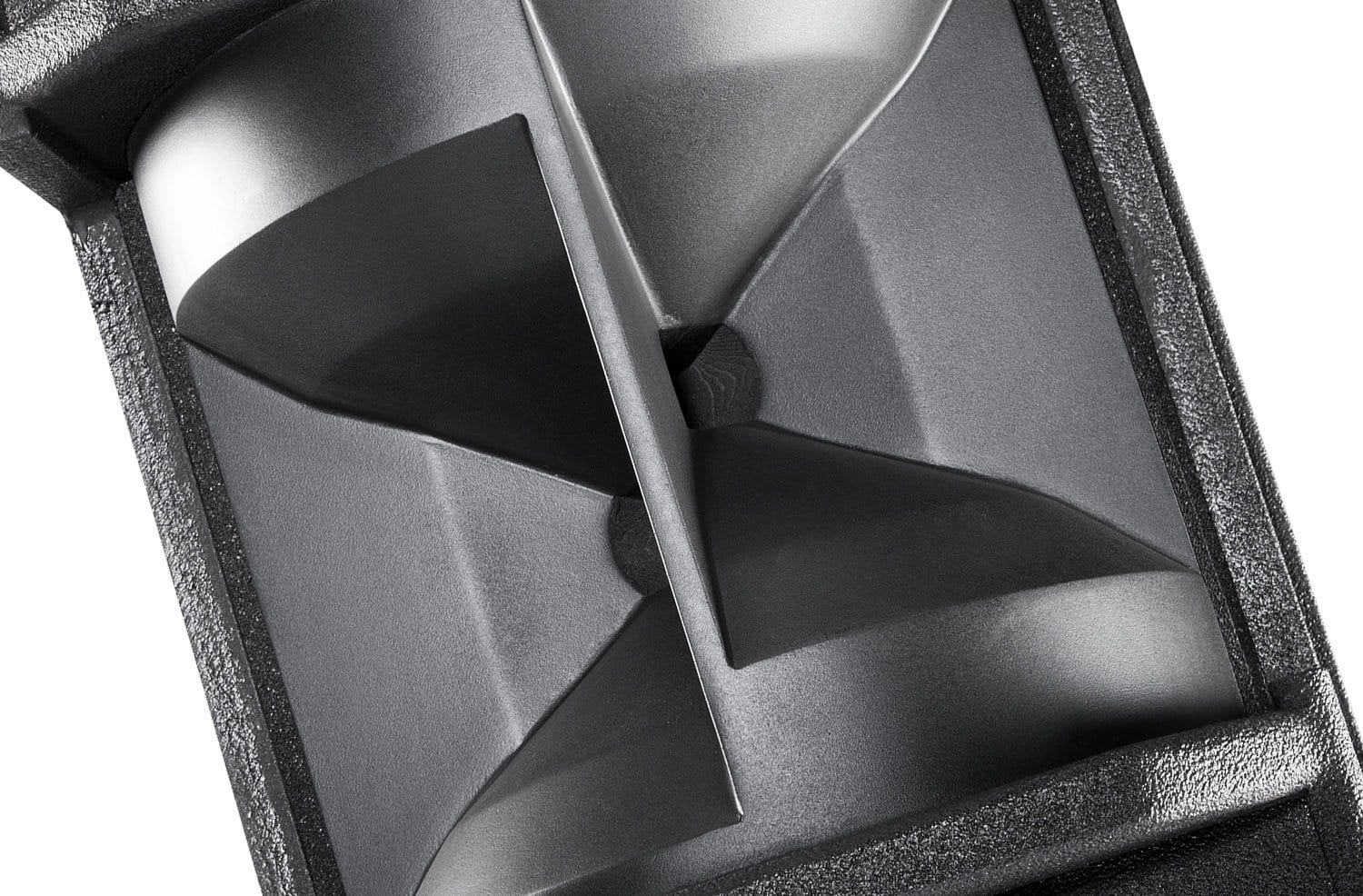

Extremely wide-coverage 160° x 60° waveguide
-
Dual 25 mm (1") exit, 38 mm (1.5") diaphragm compression driver
-
Easy to install with 4 M10 attachment points built in across the top and sides
-
4 M8 points on the back panel accept OmniMount® wall mounting brackets
-
WRC and WRX weather resistant versions are available upon request
Technical details
Technical Specifications
System
- Crossover
- 1.5 kHz
- Low Frequency Driver
- 2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
- High Frequency Driver
- 2 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Frequency
- Frequency Range (-10 dB)
- 71 Hz - 20 kHz
- Frequency Response (+/-3 dB)
- 96 Hz - 19 kHz
- High-Frequency Waveguide
- Crossfired Waveguide
Performance & Coverage
- Coverage Pattern
- 160° x 60°
- System Sensitivity
- 94 dB SPL/1W/1m
- Rated Maximum SPL (1m)
- 129 dB
Power
- System Nominal Impedance
- 8 Ohms
- Long-Term System Power Rating
- 450W (1800W Peak)
- System Power Rating
- 850W/1700W/3400W Continuous/Program/Peak
Physical
- Finish
- Black DuraFlex™ finish. White (-WH) available upon request
- Dimensions (W x H x D)
- 811.28 x 259.59 x 300.74 mm (31.94 x 10.22 x 11.84 in)
- Weight
- 18.6 kg (40.9 lb)
General
- System Format
- Extremely Wide Angle Coverage Dual 8" 2-Way Loudspeaker System
