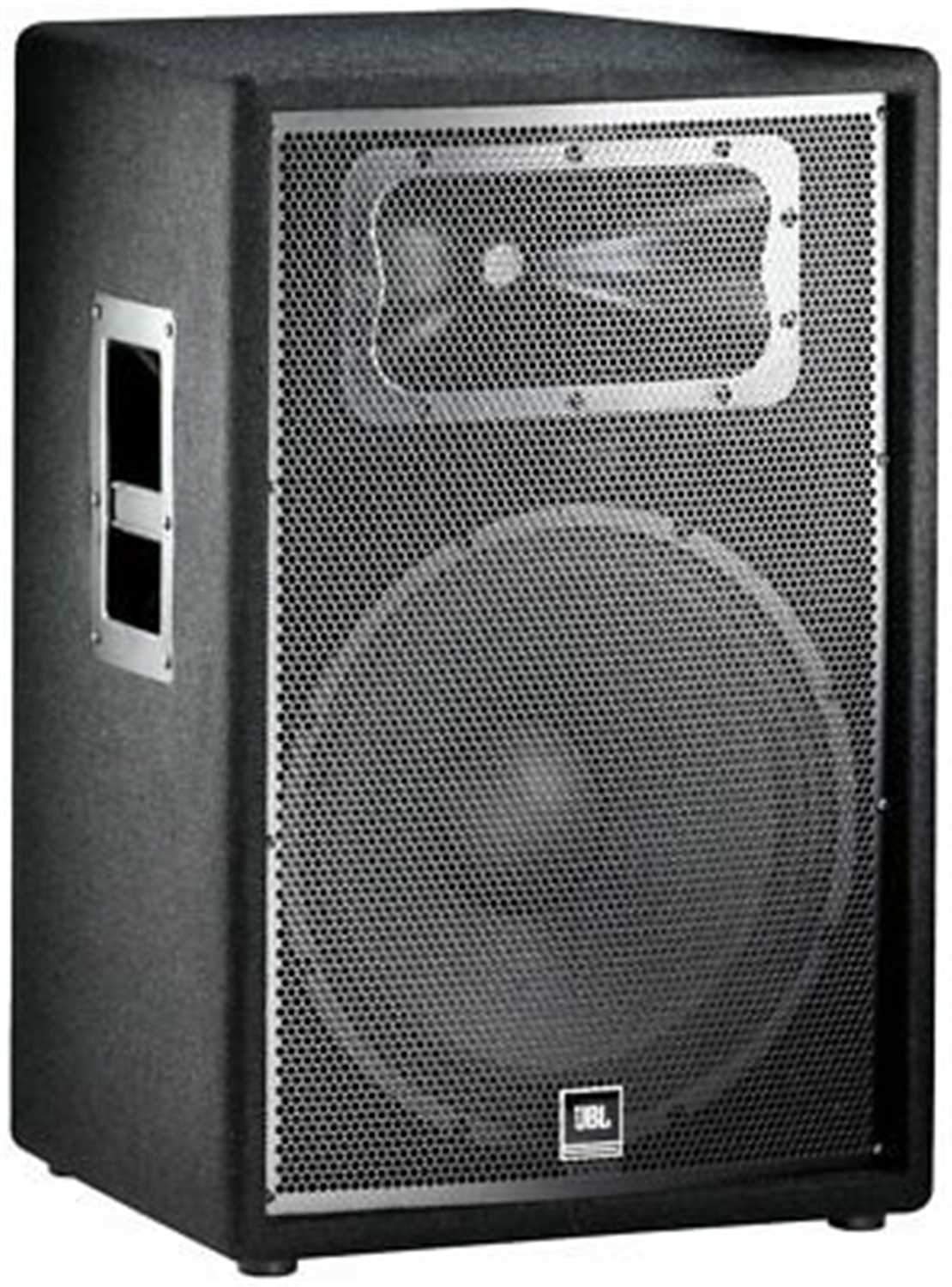

JBL JRX215 Speaker

JBL JRX215 Trapezoidal, 15" Speaker System

The JBL JRX215 is a 15-inch, 2-way passive speaker system designed specifically for applications in live music, music playback, and reinforcement of speech. With the smooth, natural sounding mid-range of the system, the JBL JRX215 speaker does a great job projecting live vocals, solos and speech. The extended lows and great top-end make it at home for music playback in DJ applications or anywhere live sound reinforcement is needed. Features include the dual-angle, 36 mm pole-mount socket as well as Neutrik Speakon and 1/4" input connectors. The JBL JRX215 speaker delivers the performance and the prestige that JBL is known for at an affordable price point.

Features:

• JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
• JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability..
• The advanced network topology crossover design shapes the frequency response to deliver coherent summation in thecrossover region.
• High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
• Progressive Transition highfrequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
• The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
• SonicGuard protects the highfrequency driver from excess power without interrupting the performance.
• Non-resonant, all-steel handles are used.
• Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
• Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage.

Specifications:

• Power Rating: 250 W / 1000W
• Frequency Range (-10 dB): 41 Hz - 18 kHz
• Frequency Response (±3 dB): 59 Hz - 13 kHz
• Sensitivity (1w/1m): 99 dB SPL
• Nominal Impedance: 8 ohms
• Recommended Amplifier Power: 250 W to 500 W into 8 ohms
• Maximum SPL: 129 dB
• Nominal Dispersion: 90º x 50º
• Crossover Frequency: 2.2 kHz
• Dimensions: (H x W x D): 699 mm x 460 mm x 432 mm (27.5 in x 18.1 in x 17 in)
• Weight: 27.4 kg (60.5 lb)
• High Frequency Driver: JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition Waveguide
• Low Frequency Driver: JBL M115-8A
• Input Connectors: Parallel Neutrik Speakon NL-4 (x1); .25in TS phone jack (x1)
• Grille: 18-gauge, powder-coated steel
• Mounting & Suspension: 36 mm, dual-angle pole-mount socket
