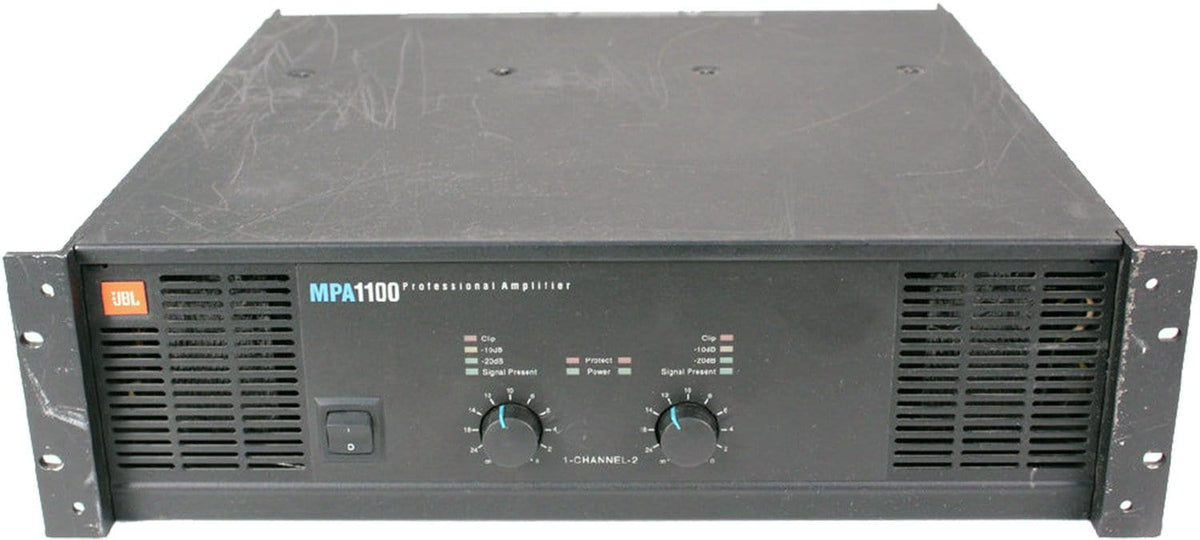

JBL MPA1100 2-Channel Amplifier 820-Watts RMS
Model TZ-MPA1100
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL MPA1100 2-Channel Amplifier 820-Watts RMS
The MPA1100 is a high-efficiency professional power amplifier, with two independent channels, capable of delivering 1100 watts into a four ohm load (per channel), and substantially more power into lower impedance loads. Semi-toroidal power transformers one per channel are mounted in each front corner, as close as possible to the rack ears and rails. The rear panels are 16.9 inches behind the front mounting plane, so an extra rack depth allowance (i.e., more than 18 inches) will be needed to clear XLR or Speakon connections. The built-in fan cooling takes air in the rear, exhausting through front vents. Due to the flow-through cooling, amplifiers may be racked with zero clearance in between, which also helps support the weight. Rear support within the rack must be used in portable applications.
Technical details
Technical Specifications
System
- COOLING
- Continuously variable speed fan, rear-to-front air flow
Performance & Coverage
- DISTORTION
- SMPTE-IM, less than 0.05 %
- DYNAMIC HEADROOM
- 3 dB at 4 ohms
- NOISE
- 100 dB below rated output (20 Hz to 20 kHz)
- SENSITIVITY
- 1 Vrms for rated power (8 ohms)
Power
- VOLTAGE GAIN
- 80 (38 dB)
- POWER
- Green LED
- AMPLIFIER PROTECTION
- Full short circuit†, open circuit, ultrasonic, and RF protection, thermal limiting/muting; stable into reactive or mismatched loads
- POWER REQUIREMENTS
- 100, 120, 220–240 Vac, 50–60 Hz
Connectivity
- INPUT IMPEDANCE
- 10 kilohms unbalanced, 20 kilohms balanced
- Input
- Barrier strip and XLR
Physical
- DIMENSIONS
- 48.3 cm (19") rack mounting, 45.5 cm (17.9") deep (rear support ears), 13.3 cm (5.25") high (3 spaces)
- WEIGHT
- 29 kg (64 lbs.) net, 31.8 kg (70 lbs.) shipping
General
- DAMPING FACTOR
- Greater than 200
- CONTROLS
- Front: AC switch, Ch 1 & Ch 2 Gain (2 dB detents). Rear: One toggle switch for paralleling inputs and for bridged output configuration
- SIGNAL PRESENT
- Green LED
- LEVEL -20
- Green LED
- LEVEL -10
- Yellow LED
- CLIP
- Red LED
- PROTECT
- Red LED (flashes for over-temp)
- Speakers
- 5-way binding posts, Speakon connectors, st. Speakon
- LOAD PROTECTION
- On/off muting, clip limiting, DC-fault load grounding relay with internal fault fuses
More details
Additional Information
Specifications:
- FREQUENCY RESPONSE:
- 20 Hz to 20 kHz, ±0.1 dB
- 8 Hz to 100 kHz, +0/-3 dB
- INDICATORS(each channel):
- CONNECTORS(each chan., except one stereo Speakon):
- OUTPUT CIRCUIT TYPE:
- Complementary linear, high-efficiency outputs: 3-step
