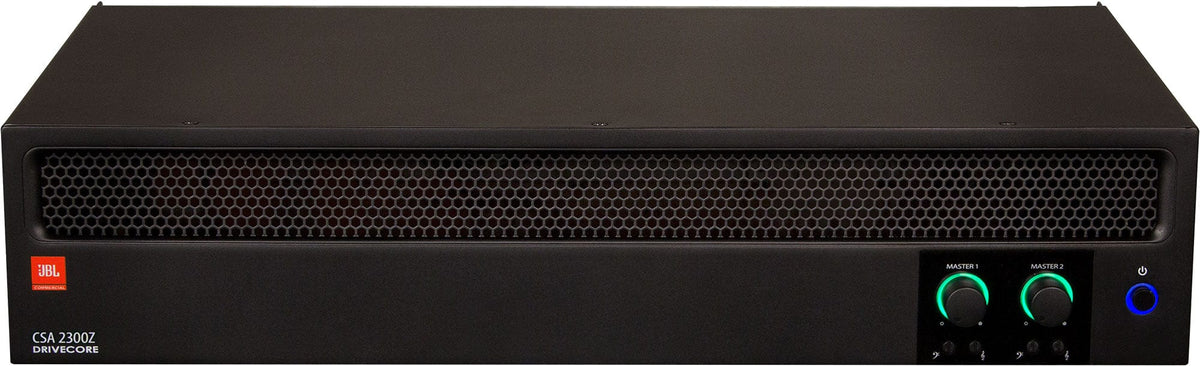

JBL NCSA2300Z-0 2x300 Watt DriveCore Amplifier
Model NCSA2300Z-0-US
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL NCSA2300Z-0 2x300 Watt DriveCore Amplifier
Built for installed sound applications, the CSA 2300Z Dual-Channel 300W Amplifier from JBL delivers powerful sound and efficient performance using the Crown’s DriveCore commercial power amplifier technology. Simple to configure, this amplifier provides a DriveCore-based sound solution, which utilizes one small chip that significantly reduces the part count and increases reliability while still maintaining high performance. It provides amplification with a choice of low impedance, 70V or 100V outputs. The amp includes a rack mounting kit for installations to a cabinet, and a RJ45 connector for an optional remote volume control using JBL's CSR-V control module.
Why this product
Key Benefits
-
Two channels with 300W output each
-
Integrated output transformer to drive 70V or 100V speaker systems
-
Ideal for commercial and industrial use
-
Euroblock style input connectors
-
Barrier strip output connectors
-
Independent bass and treble controls for each output channel
-
Remote volume control capability using JBL's CSR-V module and standard Ethernet cable (sold separately)
-
Space-saving 2 RU design
-
Capable of RS232 control of volume, stand-by, and mute
-
Utilizes Crown’s DriveCore technology providing high-quality audio performance with high efficiency
-
Sleep mode disable function
-
Energy-efficient amplifier
-
Sleek look with illuminated rings making knobs easy to see and use
-
System can be expanded by adding JBL Commercial Series Mixers and Mixer-Amplifiers (sold separately)
Technical details
Technical Specifications
System
- EQ
- 2-Band
Frequency
- Frequency Response
- 20 Hz to 20 kHz ±1 dB (8 Ohms)
Performance & Coverage
- Input Sensitivity
- Line: 775 mVrms (Balanced, at 8 Ohms) RCA: 300 mV (at 8 Ohms)
- THD
- < 0.5% (Full Range, at Rated Power)
Power
- Power Rating
- 4 Ohms / 8 Ohms: 300 W (1 kHz, 0.5% THD)
- Load Impedance / Voltage
- 4 Ohms (Minimum) 70 / 100 V
- AC Input Power
- 100 to 240 VAC, 50 / 60 Hz
Connectivity
- Number of Channels
- 2
- Input Impedance
- Euroblock: 20 Kilohms (Balanced) RCA: 10 Kilohms
Physical
- Dimensions
- 17.0 x 11.0 x 3.5" / 43.0 x 27.0 x 8.9 cm
- Weight
- 17.8 lb / 8.1 kg
Environmental
- Operating Temperature
- 32 to 95°F / 0 to 35°C
- Storage Temperature
- -4 to 185°F / -20 to 85°C
Shipping & Packaging
- Package Weight
- 20 lb
- Box Dimensions (LxWxH)
- 22 x 15 x 6"
General
- SNR
- > 97 dBA
- Crosstalk
- < -70 dBA (1 kHz)
More details
Additional Information
Specifications:
- General Specs:
- Performance:
- Signal Processing:
- Connectivity:
- I/O:
- Block Balanced/Unbalanced Input
- 2RCA Summed-Mono Input
- Block Output
- Power:
- Physical:
- Packaging Info:
