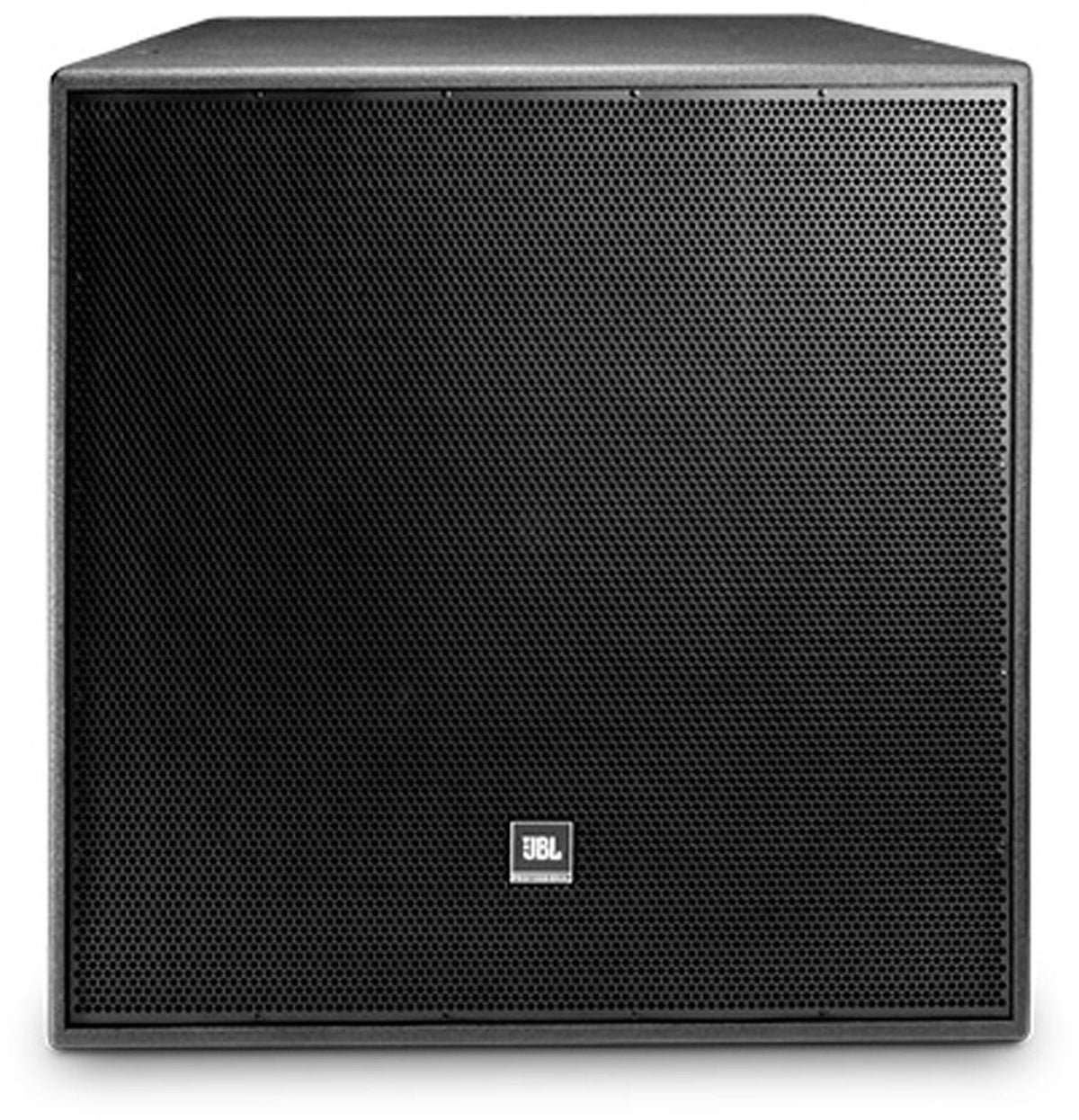

JBL PD595 Speaker
Model PD595
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL PD595 15-inch Horn-Loaded Speaker with 90° x 50° Horn
15" Horn-Loaded Full-Range Loudspeaker System. PD595 is a Precision Directivity™ loudspeaker designed for applications requiring high output capability with excellent pattern control. PD595 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth fullrange systems.
Why this product
Key Benefits
-
380 mm (15") horn-loaded low-frequency driver
-
Large PT™ Progressive Transition™ waveguides provide broad band 90° x 50° pattern control, low distortion at high SPL levels and smooth frequency response
-
Rotatable waveguide allows for either horizontal or vertical cabinet orientation
-
Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
Use cases
Applications
-
Sports Facilities
-
Performance spaces
-
Auditoriums
-
Worship facilities
Technical details
Technical Specifications
System
- Crossover Modes
- Bi-amp/Passive switchable
- Passive Crossover
- 1.3 kHz
- Low Frequency Driver
- 2031H 380 mm (15 in) driver with 75 mm (3 in) voice coil
- High Frequency Driver
- JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
- Waveguide
- HF: PT-H95HF-1 300 x 300 mm (12 x 12 in)
Frequency
- Frequency Range (-10 dB)
- 50Hz to 20kHz
- Frequency Response (±3 dB)
- 90Hz to 16kHz
Performance & Coverage
- Coverage Pattern
- 90° x 50°
- Directivity Factor (Q)
- 10
- Directivity Index (DI)
- 10 dB
- Maximum SPL
- Bi-amp: LF: 133 cont (139 peak) HF: 131 cont (137 peak) Passive: 131 cont (137 peak)
Power
- Transducer Power Ratings (AES)
- LF: 450W 2hrs, 300W 100hrs HF: 75W, 2hrs, 50W 100hrs
- System Power Rating (IEC)
- Passive mode: 500W 2hrs, 300W 100hrs (IEC)
- Nominal Impedance
- 8 ohms
Connectivity
- Input Connectors
- CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Physical
- Enclosure
- Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood.
- Suspension Attachment
- 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
- Finish
- Black DuraFlex™ finish. White (-WH) available upon request.
- Grille
- Powder coated 14 gauge perforated steel, acoustically transparent and weather resistant cloth backing.
- Net Weight
- 69.0 kg (152 lb)
Environmental
- Environmental Specifications
- Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Included & Optional Accessories
- Optional Weather Resistant Versions
- WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature. See WRC/WRX configuration sheet for details.
- Optional Accessories
- 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
More details
Additional Information
Specifications:
- System Sensitivity (1W @ 1m): 104 dB SPL
- Sensitivity (1W, 1m within operational band): 106 dB (avg 300Hz-1.3kHz)
- Sensitivity (1W @ 1m): 113 dB (avg 1.5k-5kHz)
- Dimensions (H x W x D in vertical orientation): 782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in)
