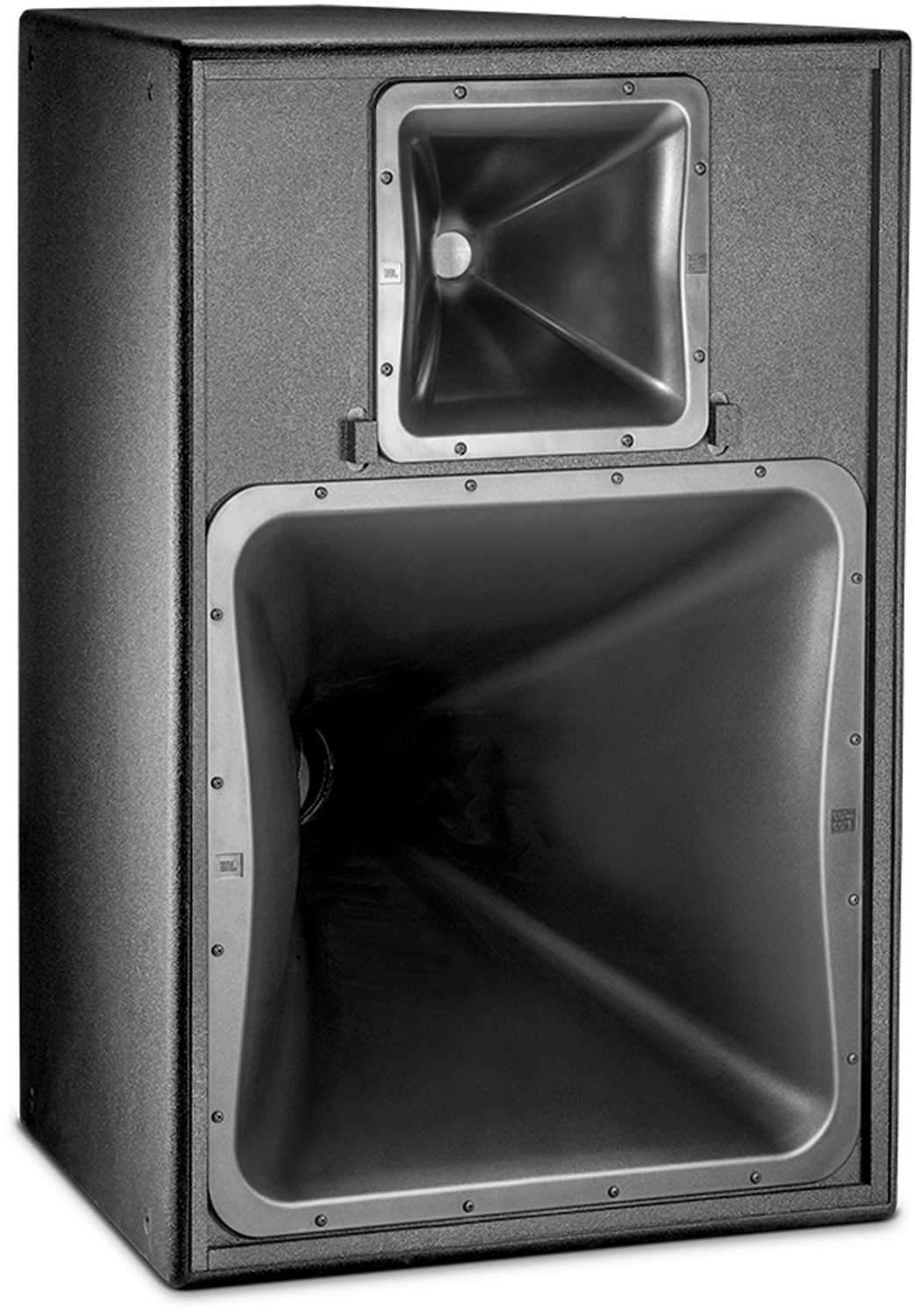

JBL PD6212/66 Speaker
Model PD6212-66
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL PD6212/66 12-inch 2-Way Horn-Loaded Speaker with 60° x 60° Horn
Precision Directivity Full Range Two-Way Loudspeakers. The PD6212 Series Precision Directivity loudspeakers are designed for applications requiring high output capability with excellent pattern control. The speakers can be utilized alone in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full range systems.
Why this product
Key Benefits
-
300 mm (12 in) horn-loaded LF and largeformat HF driver – high sensitivity design with high continuous SPL capability.
-
Large PT™ Progressive Transition™ waveguides provide broad band pattern control, low distortion at high SPL levels and smooth frequency response.
-
Rotatable low and high frequency waveguide allow either horizontal or vertical cabinet orientation.
-
Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes.
Technical details
Technical Specifications
System
- Crossover Modes
- Bi-amp / Passive switchable
- Passive Crossover
- 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 850 Hz
- Low Frequency Driver
- M222-8A 300 mm (12 in) driver with 75 mm (3 in) voice coil
- High Frequency Driver
- 2453H, 38 mm (1.5 in) exit compression driver with 100 mm (4 in) voice coil
Frequency
- Frequency Range
- 80 Hz to 18 kHz (-10 dB)
- Frequency Response
- 90 Hz to 16 kHz ( ± 3 dB)
Performance & Coverage
- Coverage Pattern
- 60° x 60°
- Maximum SPLLF
- 137 dB-SPL HF: 135 dB SPL (141 dB peak) Passive Mode: 134 dB SPL (140 dB peak)
Power
- Transducer Power Rating (AES)
- LF: 400 W (1600 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs
- Long-Term System Power Rating (IEC)
- Passive Mode: 300 W (1200 W peak), 100 hrs
- Nominal Impedance
- 8 ohms
Connectivity
- Input Connectors
- Neutrik Speakon® NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Physical
- Enclosure
- Trapezoidal with 12.5 degree side angles, 16 mm (5/8 in) exterior
- Suspension Attachment
- 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware
- Finish
- Black DuraFlex™ finish. White (-WH) available upon request.
- Grille
- Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam
- Net Weight
- 79.5 kg (175 lb)
Environmental
- Environmental Specifications
- Mil-Std 810; IP-x3 per IEC529.
Included & Optional Accessories
- Optional Weather Resistant Versions
- WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements.
- Optional Accessories
- 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
More details
Additional Information
Specifications:
- System Sensitivity(1W @ 1m): Passive Mode: 109 dB-SPL
- Dimensions (H x W x D in vertical orientation): 991 x 673 x 897 mm
