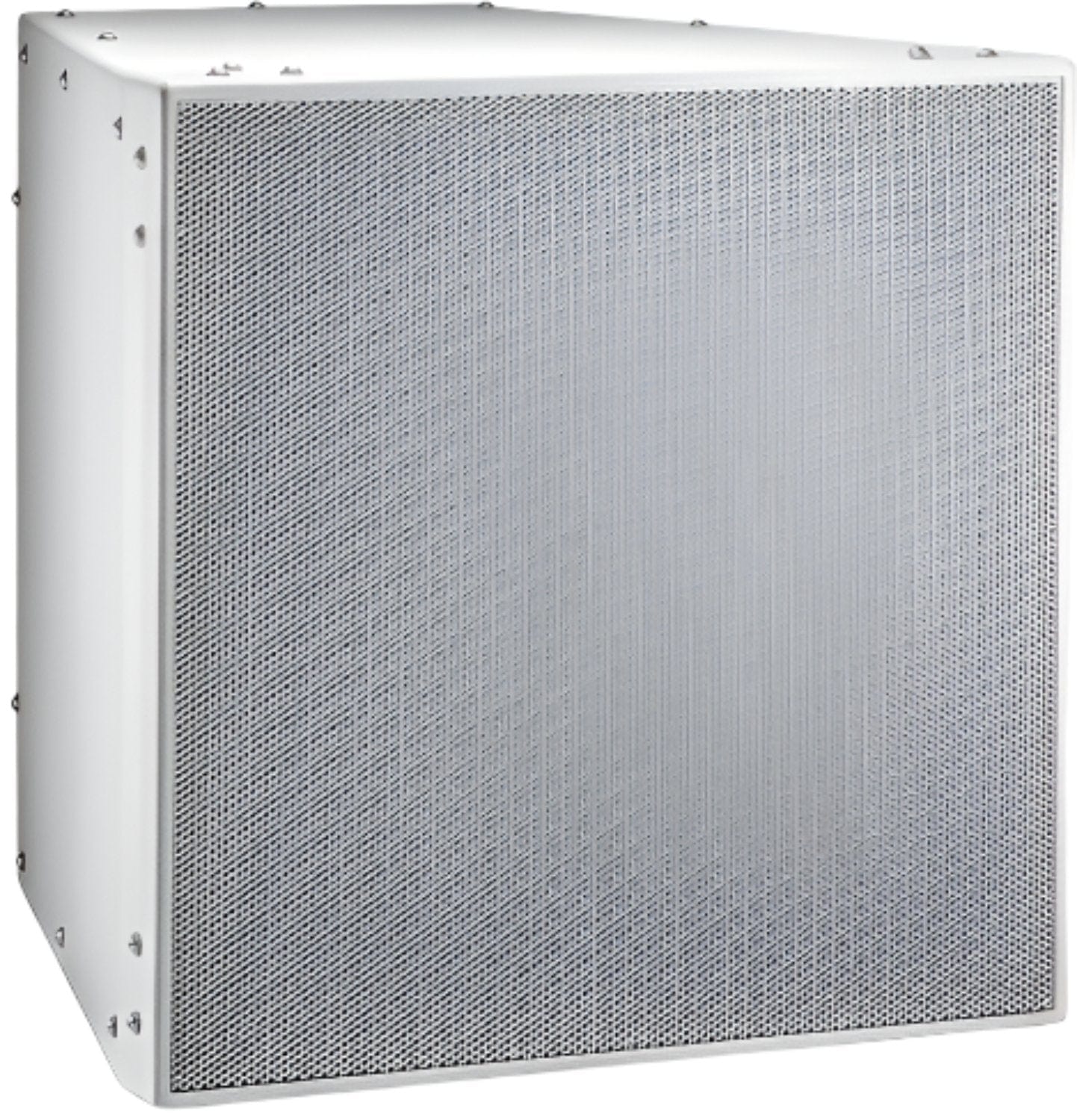

JBL PD764i Speaker
Model PD764-WH
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

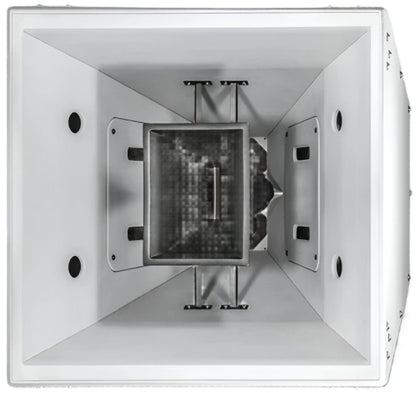

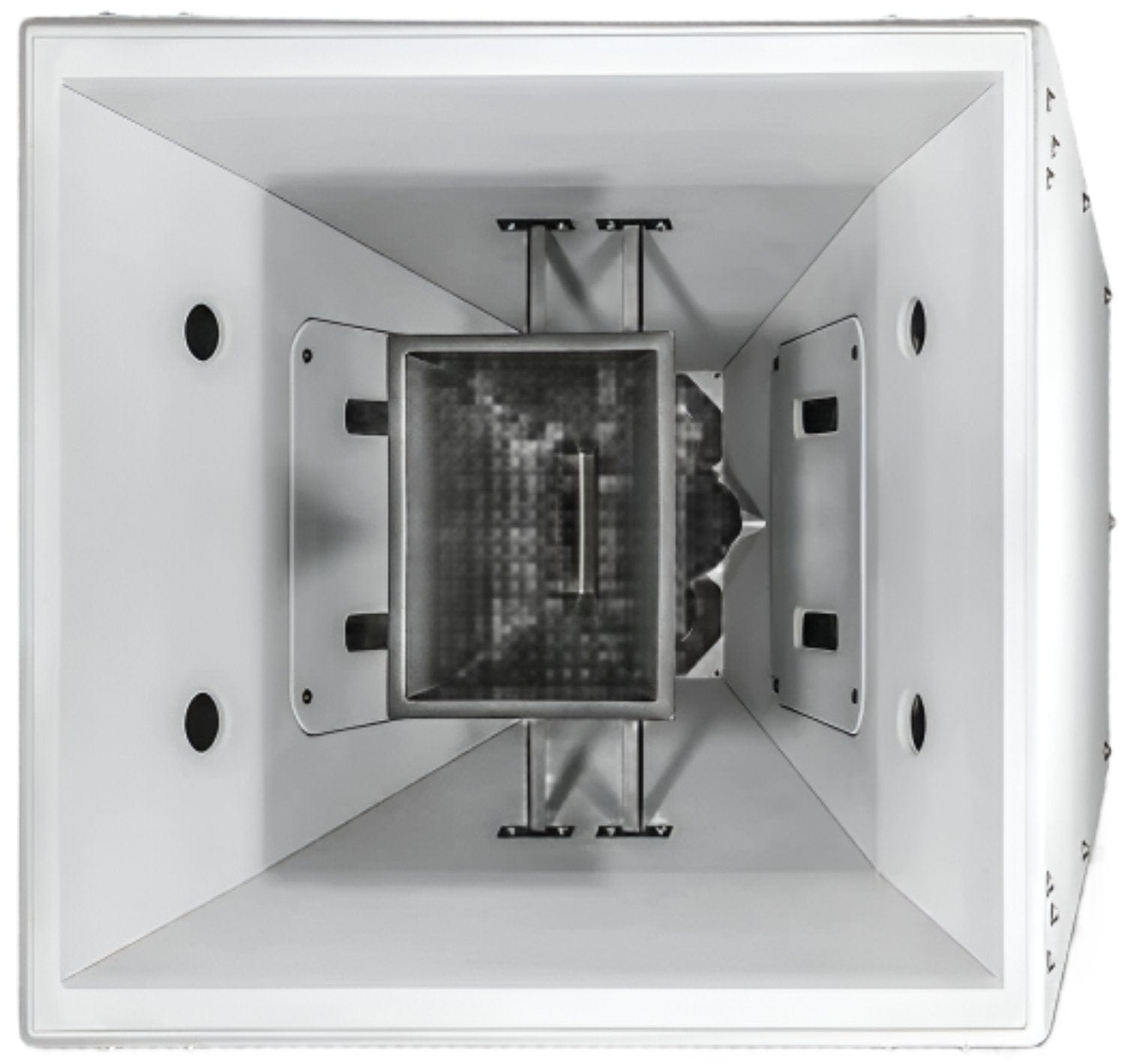

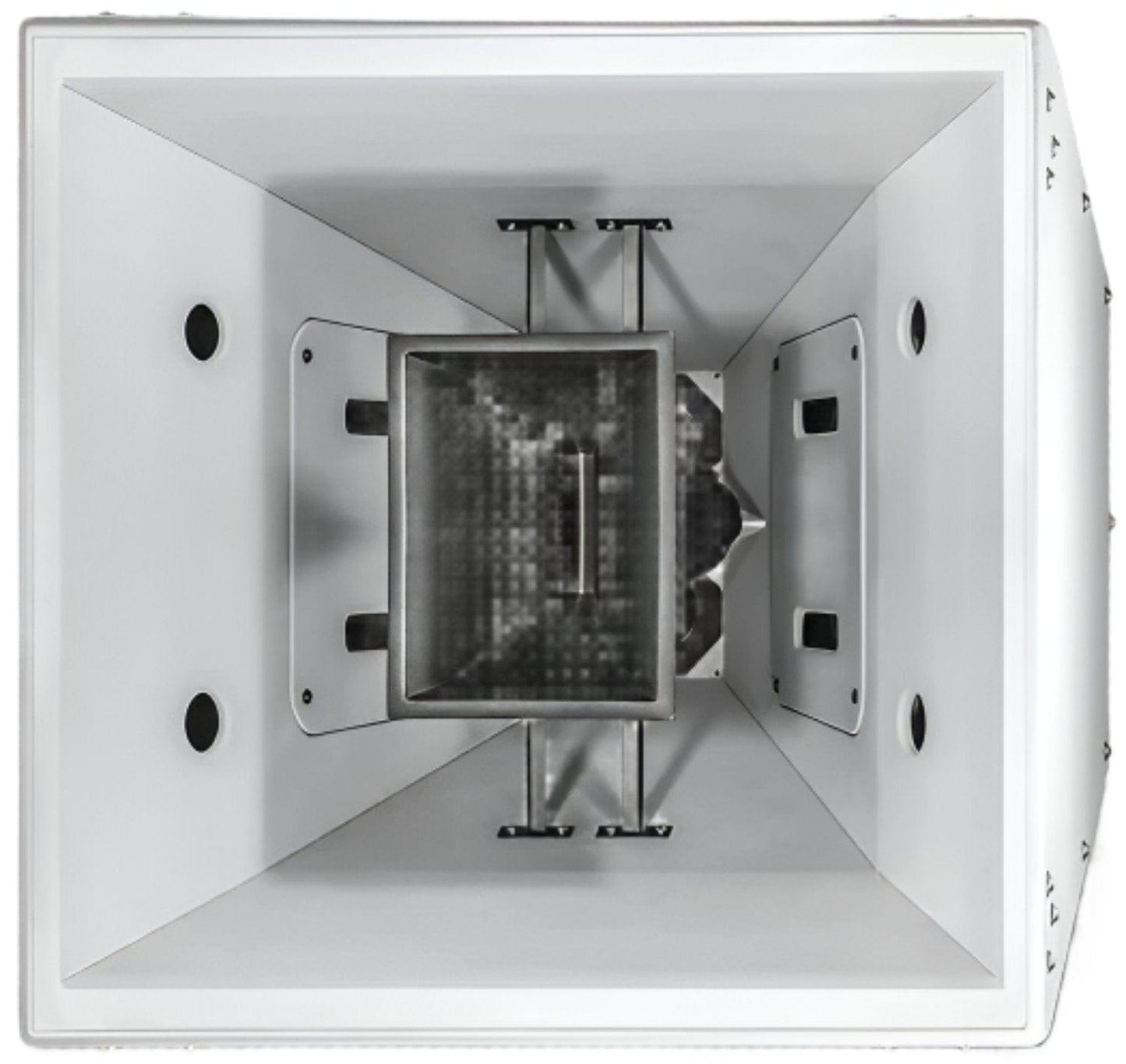

JBL PD764i Dual 8-inch 2-Way Horn-Loaded Speaker with 60° x 40° Horn
The PD764 Precision Directivity™ loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of single-driver designs. A single module produces greater than 104 dB SPL (continuous) at distances of 50 m (165 ft). The PD764 may be used in clusters with other PD family modules or singly as part of a distributed system. PD100 series low-frequency elements may be added to the array to extend bandwidth and pattern control to the lowest octaves.
Why this product
Key Benefits
-
60° by 40° Coverage Pattern–symmetrical frontal dimensions allow horizontal or vertical orientation within an array.
-
IFS™ Interference Free Summation dual HF driver module eliminates destructive interference and increases output by 6 dB.
-
Dual 8 in horn loaded cone mid frequency drivers provide 6 dB greater output than traditional designs.
-
Pattern control maintained to below 400 Hz.
-
Co-axial mid / high-frequency module layout improves mid frequency arrayability and minimizes size.
-
Integrated rigging system simplifies array design and construction.
Technical details
Technical Specifications
System
- Configuration
- Full Range
- Crossover Frequency
- 1200 Hz
- Woofer driver
- 15″ – Horn
- Tweeter driver
- 1.5″ – neodymium – aluminum – Horn Loaded Compression Driver (HLCD)
Frequency
- Frequency Response
- 50 – 20000 Hz
Performance & Coverage
- Max Output Level (Max SPL)
- 139 dB
- Sensitivity
- 105 dB
- Coverage
- 60° x 40°
Power
- Total power (W)
- 500
- Impedance
- 8, 4, 16-ohm
- Nominal Output Power
- 300 Watt
- Max (RMS) Output Power
- 500 Watt
- Nominal Impedance
- 8 Ohm
Physical
- Enclosure Color
- Black
- Enclosure Material
- Birch plywood
- Cab Material
- Birch plywood
- Dimensions
- Width 30.8 in, Depth 26.4 in, Height 30.8 in, Weight 152.12 lbs
- Color
- White
Environmental
- Indoor/Outdoor
- Indoor
General
- Product Type
- Speaker
- Design Features
- DuraFlex finish, trapezoidal design
- Speaker Type
- Surface Mount
- Speaker Size
- 15"
- Number of Speakers
- 1 Speaker
- Active/Passive
- Passive
- Speaker Type
- 2-way – passive
