JBL Base Plate for SRX906LA
Model SRX906LA-BP
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

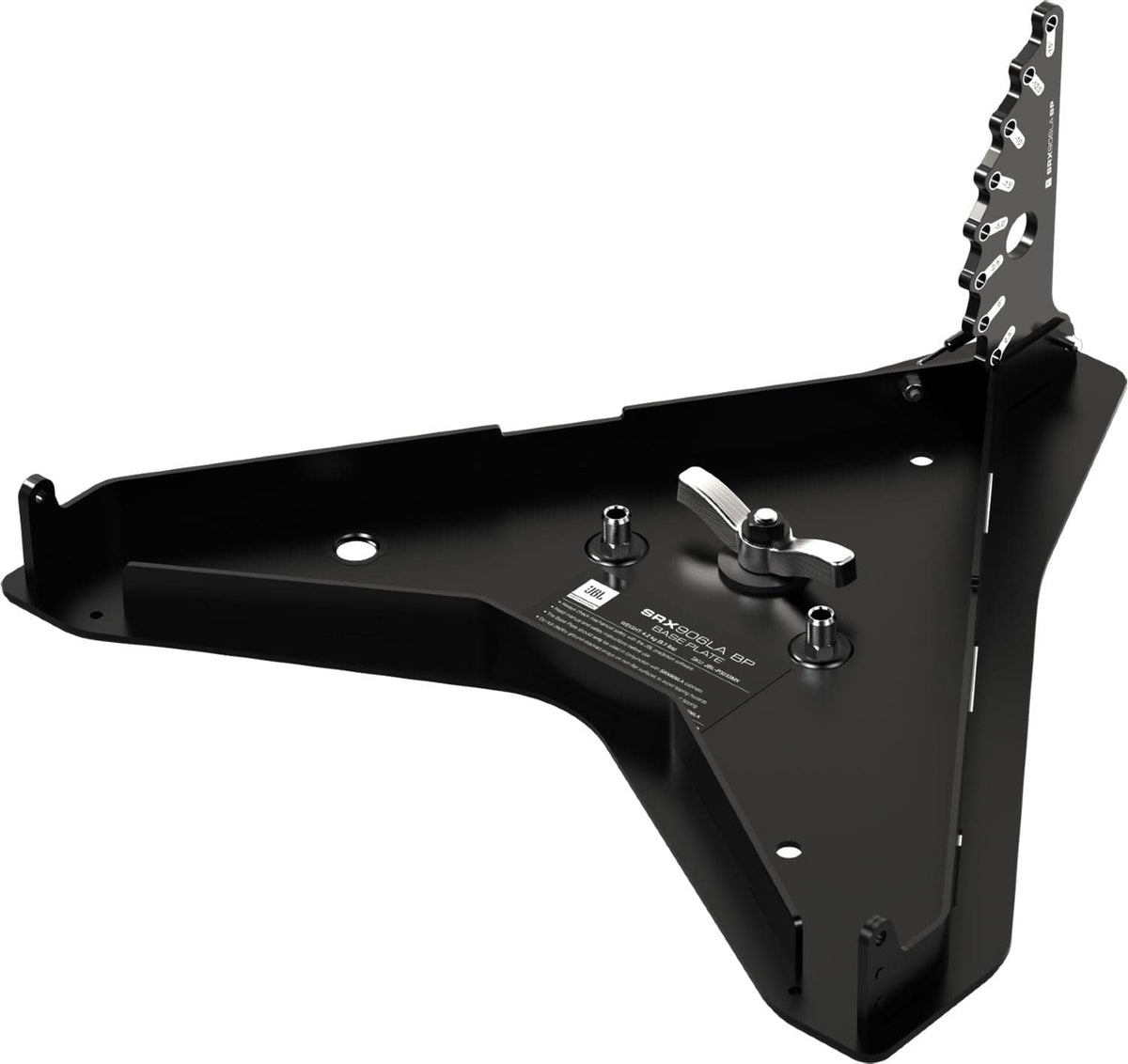

JBL Base Plate for SRX906LA
The SRX906LA Base Plate is a universal adapter frame that enables SRX906LA arrays to be ground stacked on top of compatible subwoofers or support structures such as stages, scaffolding, or carts. Using the included M20 screw, the SRX906LA BP connects to any supported subwoofer equipped with a standard M20 pole mount adapter, such as the SRX918S or the SRX928S. The rear angle selection bar allows for angles ranging from -15 to +5 degrees. The three included M10 through-holes can be used to permanently attach an SRX906LA array to other support structures. The base plate can be used in conjunction with the Pole Mount (JBL-P3312MX) adapter to pole mount up to two SRX906LA cabinets. Configurations and load conditions for using the SRX906LA BP can be obtained using JBL Line Array Calculator 3 prediction software.
Why this product
Key Benefits
-
Enables ground stacking SRX906LA arrays
-
Allows attaching arrays to subwoofers
-
Universal M20 threaded pole mount
-
Angle range: -15 degrees to +5 degrees
-
Compatible with VTX PM pole mount adapter
-
Support for up to (6) SRX906LA
Technical details
Technical Specifications
Compatibility
- Safe Limit
- (2) SRX906LA
- Maximum Limit
- (6) SRX906LA
Build
- Construction
- High-grade steel with anti-corrosion coating
- Finish
- Black powder coat
Dimensions
- Net Weight
- 4.2 kg (9.3 lbs)
Shipping & Packaging
- Shipping Weight
- 6.3 kg (14 lbs)
More details
Additional Information
Specifications:
- Mechanical Limits:
- Dimensions (H x W x D):
- 55 mm x 490 mm x 445 mm
- (2.2 in x 19.3 in x 17.5 in)
