Product details
Overview

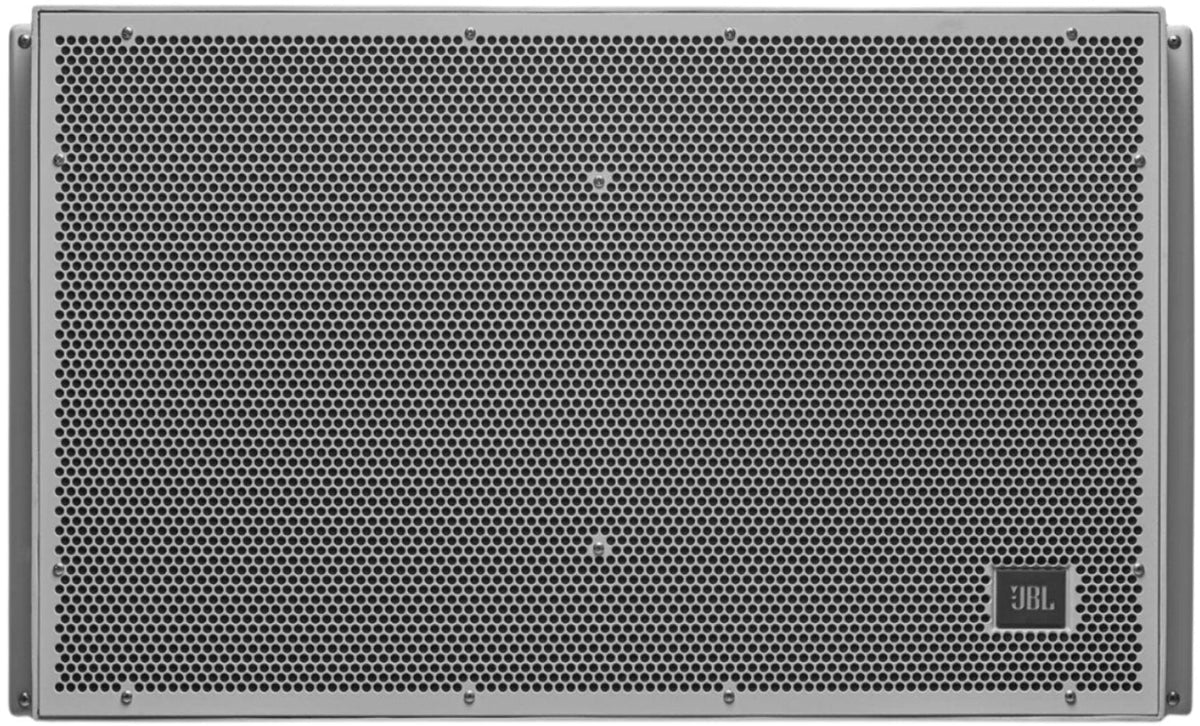

JBL VLA-C125S-GR Dual 15-Inch Subwoofer for VLA Compact Line Array System - Gray
The VLA-C125S utilizes JBL's proven technology components, featuring dual 15” Differential Drive® transducers. Enclosures are constructed with multi-layer reinforced fiberglass and steel end-panels. The grilles are made from zinc-plated, powder-coated 14-gauge perforated steel, with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system.
The rigging system is integral to the design of the system. Inter-box angles are selected during array assembly. Additional accessories include a rigging frame, pull-back bar, and a cardioid kit.
Why this product
Key Benefits
-
A fully featured compact and light weight moving yoke spot fixture with an Intense 350 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, and two color wheels.
-
16-bit dimming of master dimmer for smooth control of fades
-
Perfect gobo morphing between gobo wheels
-
Two color wheels with 8 colors, split color ability, and continuous variable speed scrolling
-
Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel.
-
Iris, 3-facet prism, and frost for beam control
-
True 1 compatible power input/output connections for power linking.
-
3- and 5-pin DMX input/output connections
-
RDM enabled for remote addressing and trouble shooting.
-
Selectable LED maximum output to match legacy Rogue R2X Spots
-
Selectable PWM settings to maintain flicker-free operation on camera.
-
Simple and complex DMX channel profiles for programming versatility
Technical details
Technical Specifications
Frequency
- Frequency Range (-10dB)
- 52 Hz – 210 Hz
- Frequency Response (±3 dB)
- 62 Hz – 123 Hz
Performance & Coverage
- Sensitivity
- 98 dB (52 Hz – 210 Hz, 2.83V)
Power
- Amplifiers
- Crown DCi Family with DSP on-board
Connectivity
- Maximum Input Voltage
- 80 V Rms (2 hrs), 160 V peak
- Terminals
- CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers. Full set of terminals on back panel, plus optional-use inter-cabinet connection terminals located on top and bottom panels of cabinet.
Physical
- Enclosure Material
- Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing.
- Grille
- Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen.
- Colors
- Gray (similar to Pantone 420C)
- Dimensions (H x W x D)
- 508 x 848 x 634 mm (20.0 x 33.4 x 24.9 in)
- Net Weight (each)
- 56.7 kg (125 lbs)
Environmental
- Environmental
- IP-55 rating per IEC529 (dust protected and protected against jets of water).
Shipping & Packaging
- Shipping Weight (ea)
- 62.6 kg (138 lbs)
General
- VLA-C125S to VLA-C125S
- 0° using VLA-C125S Bracket Plate (included with VLA-C125S)
More details
Additional Information
Specifications:
- System Power Rating:
- 1600 W Continuous Pink Noise (6400 W peak), 2 hrs
- 800 W Continuous Pink Noise (3200W peak), 100 hrs
- Maximum SPL (1m):
- 127 dB Cont. Ave (2 hrs)
- 133 dB Peak
- Impedance: 4Ω, 3.0Ω min @ 195 Hz
- Recommended:
- Crown DCi 2 | 2400N
- Crown DCi 4 | 2400N
- LF Driver:
- 2 x 2275H, 304 mm (15 in) diameter, each with two 76 mm (3 in) diameter voice coils
- Neodymium Differential Drive®, Direct Cooled™
- Inter-Enclosure Angles:
- VLA-C265 below VLA-C125S Subwoofer (VLA-C265 cannot be connected above C125S): 0°, 5° using VLA-C125S Bracket Plate (included with VLA-C125S)
- VLA-C2100 below VLA-C125S Subwoofer (VLA-C2100 cannot be connected above C125S): 0°, 7.5° using VLA-C125S Bracket Plate (included with VLA-C125S)
- Included Accessories:
- 2 x VLA-C125S Bracket Plates
- 8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hex-drive) for attaching Bracket Plates
- 2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via
- 4 pcs (8 total) 3-32 x ½” trusshead, phillips-drive, stainless steel bolts.
- Optional Accessories:
- VLA-C-SB2 (JBL-VLACSB2BK) Suspension Bracket Kit
- VLA-C125S-ACC Kit – For wiring of 3 VLA-C-125S subwoofers in cardioid configuration (2 front-facing and 1 rear-facing). Allows for neat, unexposed inter-cabinet wiring via the tops and bottoms of cabinets.
