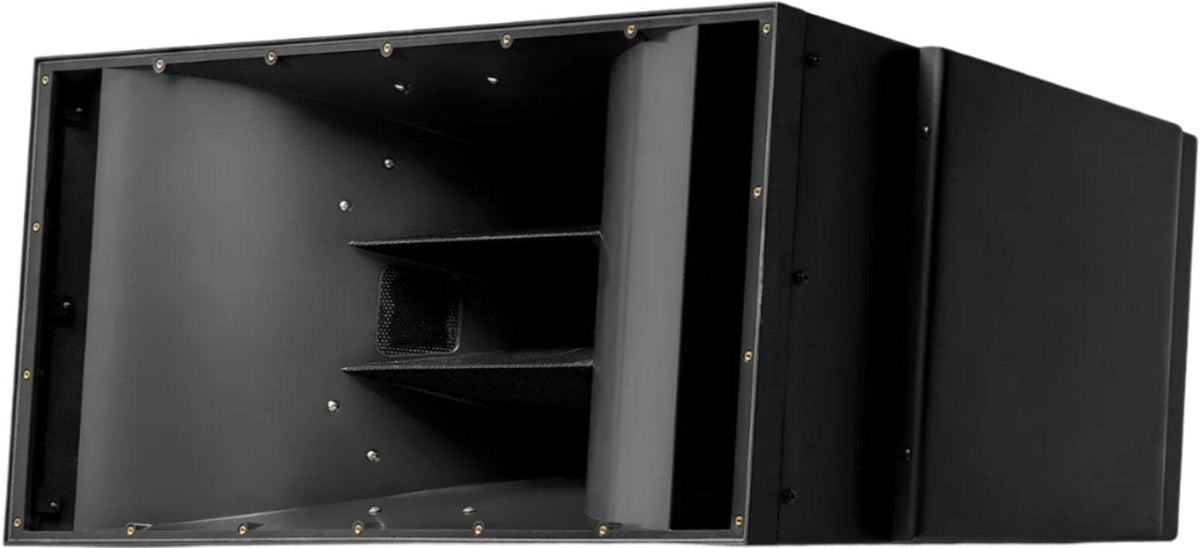

JBL VLA-C265-BK 2x 10-Inch Two-Way Horn-Loaded Line Array 65-Degree Loudspeaker System - Black
Model VLA-C265-BK
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL VLA-C265-BK 2x 10-Inch Two-Way Horn-Loaded Line Array 65-Degree Loudspeaker System - Black
Why this product
Key Benefits
-
Compact line array module optimized for permanent install applications
-
Advanced technology component transducers for low weight and high output
-
Outdoor IP55 rated enclosure for protection from dust and water
-
Comprehensive rigging points for creating a line array configuration
-
Fiberglass box construction and weatherized components
-
Can be bi-amplified for maximum SPL, or fed passively for reduced amplification costs
-
65° horizontal coverage pattern
Technical details
Technical Specifications
System
- Bi-amp LF
- 800 W Continuous Pink Noise (3200 W peak), 2 hrs; 400 W Continuous Pink Noise (1600W peak), 100 hrs
- Bi-amp HF
- 150 W Continuous Pink Noise (600 W peak), 2 hrs; 50 W Continuous Pink Noise (200 W peak), 100 hrs
- LF Driver
- 2 x 2261FF, 254 mm (10 in) diameter, each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive®, Direct Cooled™
- HF Driver
- 3 x 2415K, D2 Dual Diaphragm Dual Voice Coil Compression Drivers, each with two 38 mm (1.5 in) dia. Voice Coils; 21 mm (0.8 in) exit
Frequency
- Frequency Range (-10dB)
- 85 Hz - 19 kHz
- Frequency Response (±3 dB)
- 108 Hz – 16.5 kHz
Performance & Coverage
- Maximum SPL (1m)
- 131 dB Cont. Ave (2 hrs), 137 dB Peak
- Coverage Pattern (-6 dB)
- Horizontal: 65° (+15°/-10°, 1.5 kHz to 15 kHz); Vertical: Varies with array size and configuration
Power
- Amplifiers
- Crown DCi Family with DSP on-board
Connectivity
- Terminals
- CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers
Physical
- Enclosure Material
- Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing
- Grille
- Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen
- Colors
- Black
- Dimensions (H x W x D)
- 381 x 848 x 460 mm (15.0 x 33.4 x 18.1 in)
- Net Weight (each)
- 37.7 kg (83 lbs)
Environmental
- Environmental
- IP-55 rating per IEC529 (dust protected and protected against jets of water)
Included & Optional Accessories
- Optional Accessories
- VLA-C-SB2 (JBL-VLACSB2BK) Suspension Bracket Kit
Shipping & Packaging
- Shipping Weight (ea)
- 44.0 kg (97 lbs)
General
- Full Range
- 800 W Continuous Pink Noise (3200 W peak), 2 hrs; 400 W Continuous Pink Noise (1600W peak), 100 hrs
- Full-Range
- 80 V Rms (2 hrs), 160 V peak
- Recommended
- Crown DCi 2 | 1250N, Crown DCi 4 | 1250N/ND/DA, Crown DCi 2 | 2400N, Crown DCi 4 | 2400N
- VLA-C265 to VLA-C265
- 1.5°, 2.4°, 3.8°, 6.0°, 9.5° using VLA-C265 Bracket Plate (included with VLA-C265)
More details
Additional Information
Specifications:
- Inter-Enclosure Angles:
- VLA-C265 to VLA-C2100 (either model on top/bottom): 1.9°, 3.0° using VLA-C2100 Bracket Plate (included with VLA-C2100) and 4.7°, 7.5°, 11.9° using VLA-C265 Bracket Plate (included with VLA-C265)
- VLA-C265 below VLA-C125S Subwoofer (VLA-C265 cannot be connected above C125S): 0°, 5° using VLA-C125S Bracket Plate (included with VLA-C125S)
- Included Accessories:
- 2 pcs. VLA-C265 Bracket Plates
- 8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hex-drive) for attaching Bracket Plates
- 2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via 4 pcs (8 total) 3-32 x ½” trusshead, phillips-drive, stainless steel bolts
