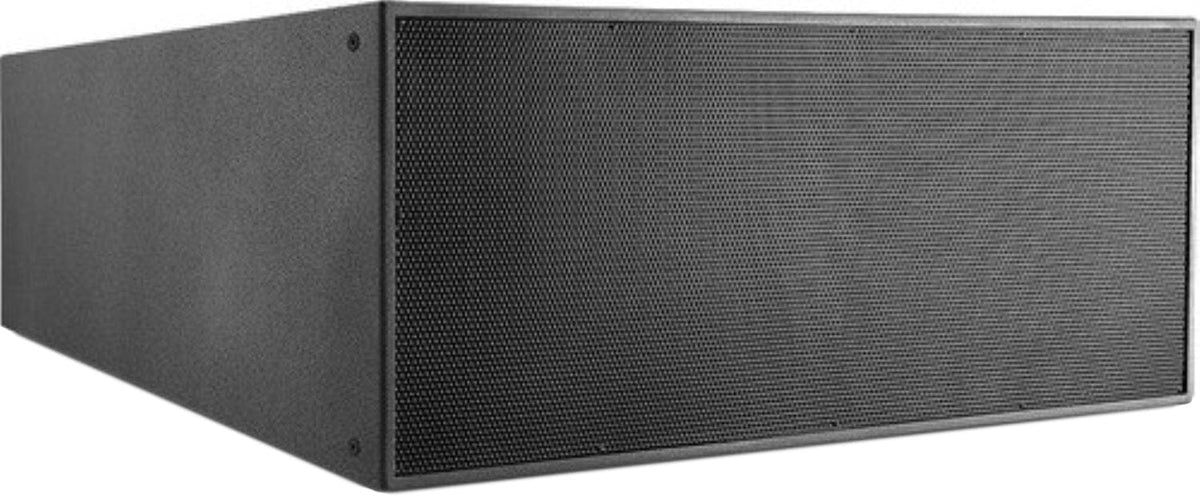

JBL VLA301Hi Full Range Loudspeaker
Model JBL-P3269MX
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL VLA301Hi High Output Three-Way Full Range Loudspeaker with 2 x 15" LF
High Output Three-Way Full Range Loudspeaker with 2 x 15" LF, 4 x 8" MF, 6 x 1.5" exit HF 30° Horizontal Dispersion. Variable Line Array Series (VLA Series) is a revolutionary product providing high-impact sound reinforcement at throw distances beyond the reach of traditional loudspeaker designs.
Why this product
Key Benefits
-
Line array module optimized for permanent install applications.
-
High output version featuring 6 HF drivers, 4 MF drivers, & 2 LF drivers.
-
Advanced technology component transducers for low weight and high output.
-
Comprehensive rigging points for creating a line array configuration.
-
Rugged DuraFlex™ exterior finish and weatherized components. JBL's WRC or WRX weather protections also available.
Technical details
Technical Specifications
System
- LF
- 1000W Continuous (IEC /100 hour)
- MF
- 400W Continuous (IEC /100 hour)
- HF
- 160W Continuous (IEC /100 hour)
- LF Driver
- 2 x JBL 2265H, 15in diameter, dual 3in diameter voice coil, Neodymium Differential Drive
- LF
- 99dB/96dB
- MF
- 105dB/105dB
- HF
- 115db/112dB
- Mid-Frequency Driver
- 4 x JBL 2169H, 8in diameter, dual 3in diameter voice coil, Neodymium Differential Drive
- High-Frequency Driver
- 6 x JBL 2432H, 1.5in exit compression driver, 3in diameter voice coil, Neodymium Magnet
Frequency
- Frequency Range (-10dB)
- 39 Hz - 19.2 kHz
- Frequency Response (-6 dB)
- 43 - 19kHz
- Frequency Response (-3 dB)
- 48 - 17.4kHz
Performance & Coverage
- Horizontal Coverage
- 30º Nominal (900 - 16kHz)
- Vertical Coverage
- Varies with Array size and configuration
- Maximum SPL (1m)
- 151.1dB (Preset: Flat)
Power
- Nominal Impedance
- 4 ohms
Connectivity
- Input Connectors
- Barrier Strip for #6 spade lug, including gland nut and cover plate
Physical
- Enclosure
- 18mm and 16mm, Exterior grade Baltic birch plywood, DuraFlexTM finish or optional Fiberglass
- Suspension Attachments
- 16 points (4 each top bottom & rear, 2 each side), M10 threaded hardware (eyebolts NOT included).
- Finish
- Black DuraFlexTM (STD), Gray DuraFlexTM (WRC), Gray Fiberglass (WRX), optional colors; Stainless Steel Hardware (WRC/WRX)
- Grille
- Powder coated 14 gauge perforated steel, zinc-phosphate dipped, acoustically transparent foam backing (grill cloth backing on white units) (16 gauge stainless steel on WR versions)
- Dimensions (H x W x D)
- 528.3mm x 1346.2mm x 1379.2mm (20.8in x 53.0in x 54.3in)
- Net Weight
- 154.7kg (341.0lbs)
Environmental
- Environmental
- Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
Included & Optional Accessories
- Optional Weather Resistant Versions
- WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperatures.
More details
Additional Information
Specifications:
- System Power Ratings (AES):
- Sensitivity (2.83V @ 1m):
