JBL VRX915M Stage Monitor
Model VRX915M
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

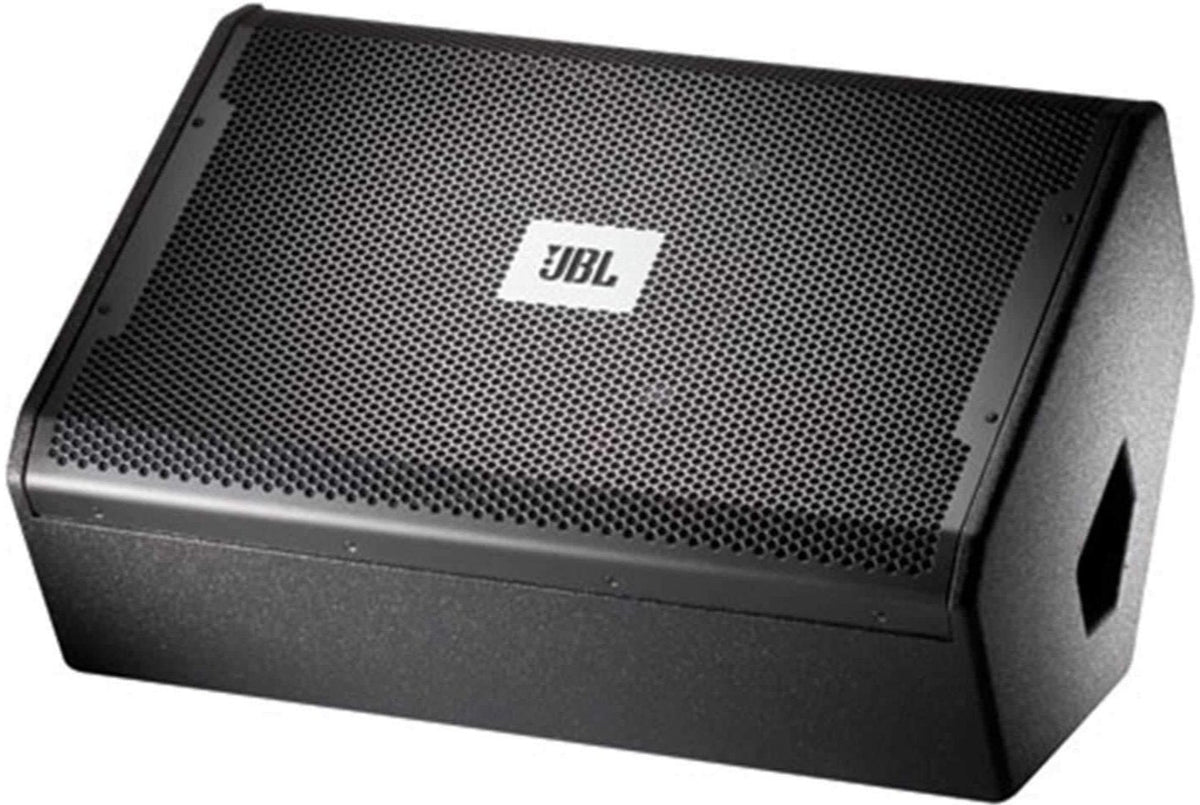

JBL VRX915M 15 in. Two-Way Stage Monitor
A 380 mm (15 in) 2265H patented Differential Drive® woofer handles 800watts (continuous) and delivers accurate and precise low frequency reproduction. The 2452H 102 mm (4 in)voice-coil compression driver is coupled to a 50°x 90° aluminum horn to provide smooth and clear highfrequency reproduction, critical for high performance monitoring.
Bi-amp or full-range passive operation may be selected via a recessed, high-current switch mounted alongside the NL4 input connector in one of the handle cups. An additional NL4 connector is mounted in the other handle cup for a convenient loop-thru connection, minimizing cable runs on stage.
Why this product
Key Benefits
-
Compact and low-profile for minimal obstruction of audience sightlines
-
50° x 90° nominal coverage
-
Bi-amplified or full-range passive operation
-
Differential Drive® woofer with neodymium magnet for high power capacity and very light weight
-
4" (voice coil) diameter compression driver with neodymium magnet
Technical details
Technical Specifications
System
- Crossover Modes
- Passive / Bi-amp
- Crossover Frequency
- 1.1 kHz
- (Contiuous / Program / Peak) Bi-amp LF
- 600 W / 1200 W / 2400 W, 100 hr1
- (Continuous / Program / Peak) Bi-amp HF
- 75 W / 150 W / 300 W, 2 hrs1
- LF Driver
- 1 x JBL 2265H 380 mm (15 in) Differential Drive® woofer
- HF Driver
- 1 x JBL 2452H, 100 mm (4.0 inch) diameter voice coil, 38 mm
Frequency
- Frequency Range (-10 dB)
- 60 Hz - 20 kHz
- Frequency Response (±3 dB)
- 70 Hz - 20 kHz
Performance & Coverage
- Coverage Pattern
- 50° x 90° nominal
- Maximum SPL
- 127 dB SPL continuous (133 dB SPL peak)2
Power
- Power Rating
- Passive Full-Range 800 W / 1600 W / 3200W, 2 hrs1
- Power Rating
- Bi-amp LF: 800 W / 1600 W / 3200 W, 2 hrs1
- Nominal Impedance
- 8 Ohms
Connectivity
- Input Connectors
- Neutrik® Speakon® NL-4 (x2), one on each end
Physical
- Enclosure
- Symmetrical stage monitor, 15/18 mm, plywood.
- Finish
- Black DuraFlex™ finish
- Grille
- Powder coated, black, 16 gauge perforated steel with
- Dimensions (H x W x D)
- 629 mm x 432 mm x 324 mm (375 mm stage height)
General
- Transport
- 2x Integrated handle / input cup
More details
Additional Information
Specifications:
- (Continuous / Program / Peak) Passive Full-Range 600 W / 1200 W / 2400W, 100 hrs1
- Power Rating:
- System Sensitivity (1w @ 1m): 98 dB SPL
- 8 Ohms
- (1.5 inch) exit, neodymium magnet compression driver
- 8 Ohms
- Active Tunings: Settings available at http://www.jblpro.com/tunings/index.htm
- acoustically transparent black screen backing.
- 24.75 in x 17 in x 12.75 in (14.75" stage height)
