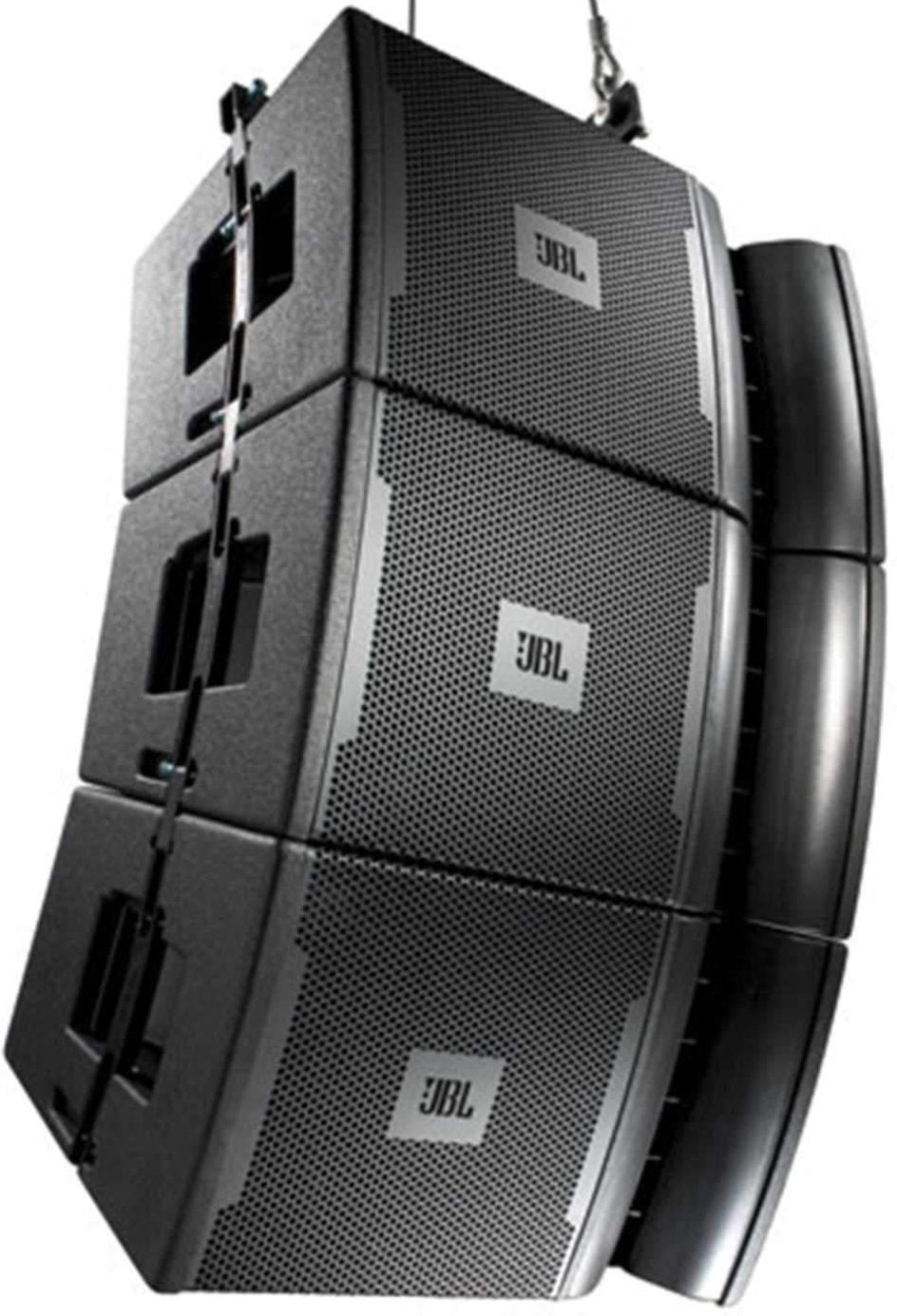

JBL VRX932LA-1 Loudspeaker
Model VRX932LA
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL VRX932LA-1 12 in. Two-Way Line Array Loudspeaker System
The JBL VRX932LA-1 is a light-weight (46 lb. / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units.
Why this product
Key Benefits
-
JBL's exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
-
JBL VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professionalfessional compression driver design.
-
Constant Curvature waveguide for unprecedented array coherence.
-
Dual angle pole socket for aiming flexibility. One or two powered line array speakers may be mounted to a 35 mm pole or tripod stand.
-
Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
-
Array Configuration Selector permits "array shading" in passive mode.
Technical details
Technical Specifications
System
- Crossover Modes
- Bi-amp / passive, externally switchable
- Crossover Frequency
- 132 dB SPL peak 1.2 kHz
Frequency
- Frequency Range
- 57 Hz - 20 kHz (-10 dB)
- Frequency Response
- 75 Hz - 20 Hz (+/-3db)
Performance & Coverage
- Coverage Pattern
- 100 x 15 nominal
- System Maximum SPL
- Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak
Power
- Power Rating
- 800 W / 1600 W / 3200 W
Connectivity
- Input Connectors
- Neutrik® Speakon® NL-4 (x2)
Physical
- Dimensions
- (H x W x D) 343 mm x 597 mm x 376 mm (13.5 in x 23.5 in x 14.8 in)
- Suspension / Mounting
- Optional VRX932LA-AF line array frame kit
- Finish
- Black DuraFlex™ finish
- Grille
- Power coated, black, 16-guage perforated steel with with acoustically transparent foam
- Net Weight
- 21 kg (46 lb)
Included & Optional Accessories
- Optional Accessories
- SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole, 41 in (1041 mm) SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only
