JBL VRX932LAP Loudspeaker
Model VRX-932-LA-PWR
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

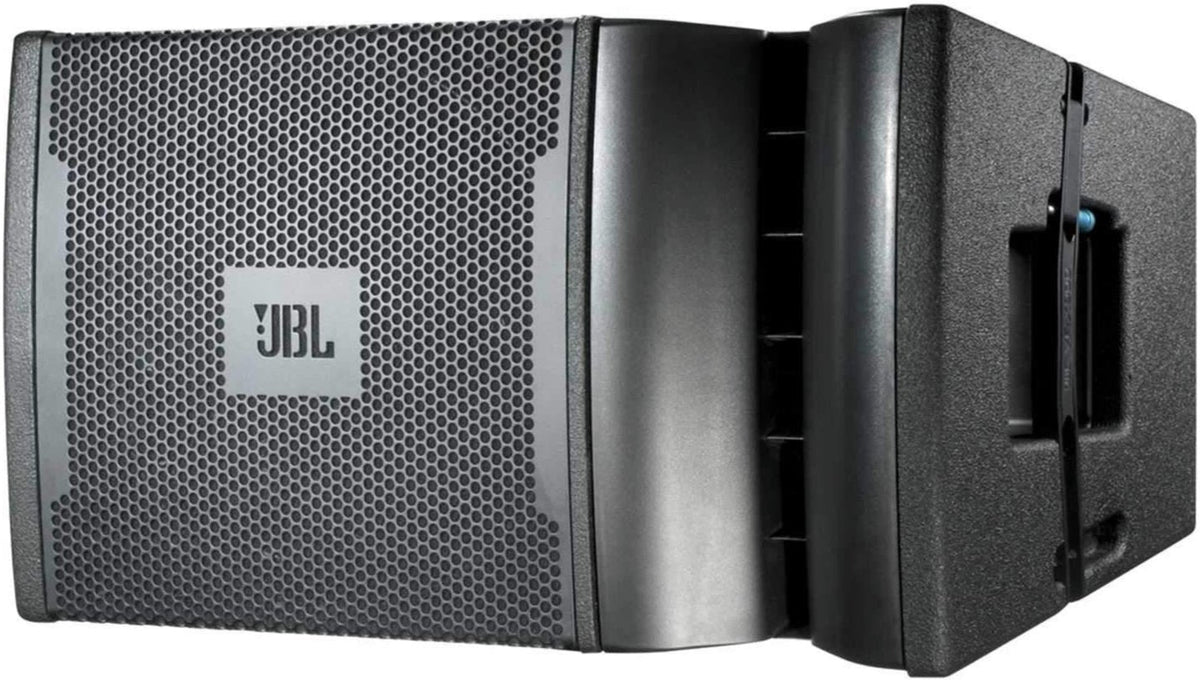

JBL VRX932LAP 12 in. Two-Way Powered Line Array Loudspeaker System
The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.
Why this product
Key Benefits
-
Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
-
JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
-
VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professionalfessional compression driver design.
-
Constant Curvature waveguide for unprecedented array coherence.
-
Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
-
Array Configuration Selector permist "array shading".
Technical details
Technical Specifications
System
- LF Driver
- 1 x JBL 2262FF 305 mm (12 in) neodymium magnet
- HF Driver
- 3 x JBL 2408J, 38 mm (1.5 in)
Frequency
- Frequency Range
- 57 Hz - 20 kHz(-10 dB)
- Frequency Response
- 75 Hz - 20 Hz (+/-3db)
Performance & Coverage
- Coverage Pattern
- 100 x 15 nominal
Power
- Power Rating
- 1750 Watts Peak, 875 Watts Continuous
- AC Power Operating Range
- 90-132 VAC or 216-264 VAC, 50/60 Hz
- AC Current Requirements
- 6A per system at 120V, 3A per system at 240V
Connectivity
- Maximum Peak Output
- 136 dB SPL at 1m
- DPC-2 Output Sectoin
- LF: Dual-Bridged Technology™, Class D
- Autio Input Connector
- XLR with loop through
- AC Input Connector
- Neutrik PowerCon (NAC 3MPA)
- AC Loop Through Connector
- Neutrik PowerCon (NAC 3MPB)
Physical
- Dimensions(H x W x D)
- (13.75 in x 23.5 in x 17.5 in)
- Enclosure
- 25/15 mm, 11-ply birch plywood
- Suspension / Mounting
- Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
- Finish
- Black DuraFlex™ finish
- Grille
- Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
- Net Weight
- 52 lbs.
Included & Optional Accessories
- Optional Accessories
- VRX-AF: Suspension array frame
General
- User Controls
- Input Attenuator (0-16 dB)
- Signal Processings
- DSP based, resident in Input Module
More details
Additional Information
Specifications:
- DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance): LF: 750 Watts, HF: 125 Watts
