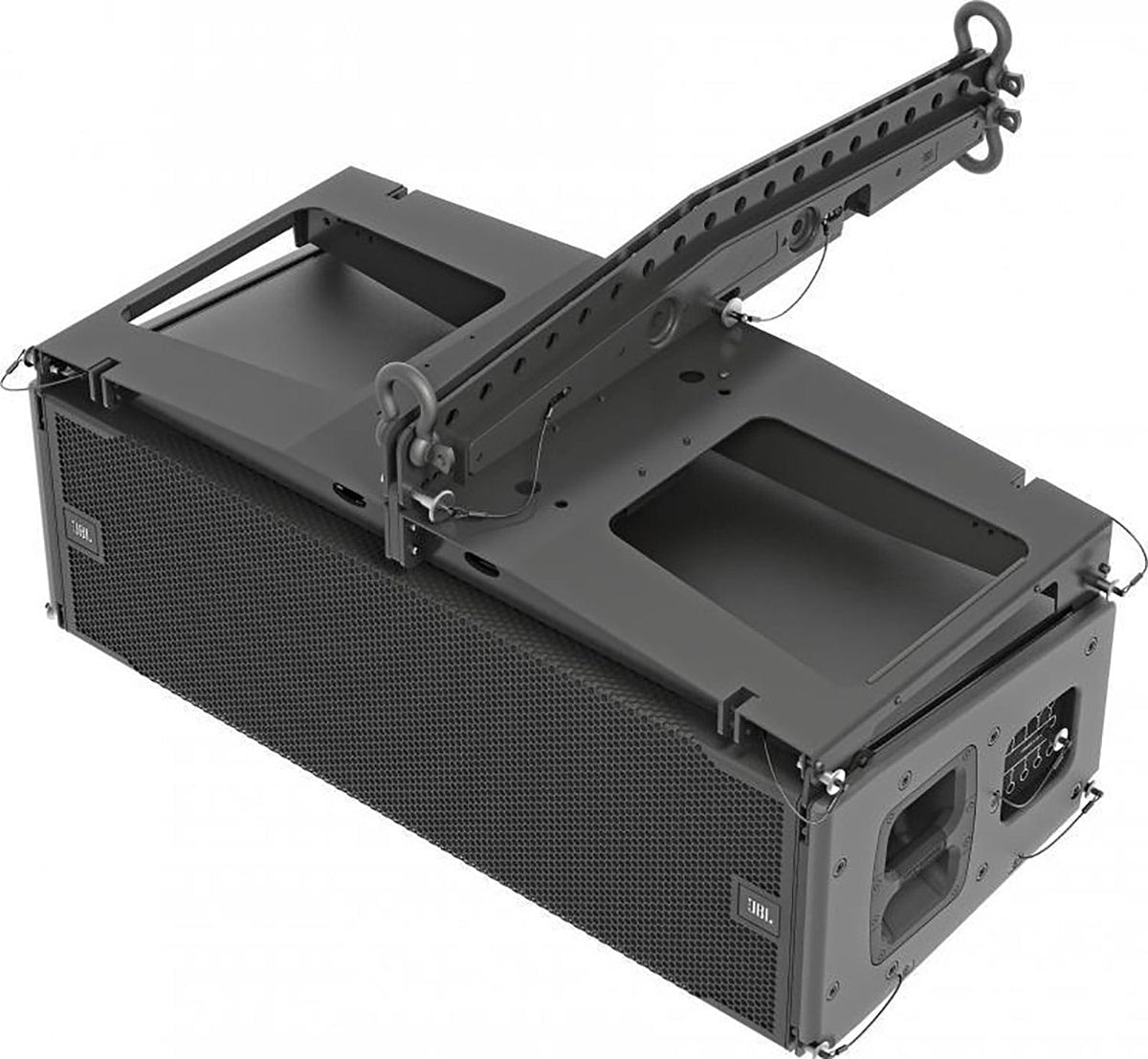

JBL VTX-A12-AF-EB Extension Bar for A12 Array Frame
Model VTX-A12-AF-EB
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL VTX-A12-AF-EB Extension Bar for A12 Array Frame
The VTX A12 AF EB Extension Bar was designed to operate in conjunction with the VTX A12 AF Array Frame to facilitate either single-point, front-to-back or side-by-side suspension modes. The extension bar is compatible with 5/8-inch shackles and can be stored above the main frame during transportation. The extension bar can extend to the front or the rear of the frame to accommodate both up-tilt and down-tilt aiming options. Three connection points are available for attaching the Extension Bar to the main frame, allowing for precise control of shackle positioning for single-point applications. One VTX A12 AF EB Extension Bar is included with the Array Frame and additional Extension Bars can be purchased to facilitate side-by-side suspension.
Why this product
Key Benefits
-
Extension Bar for use with VTX A12 AF
-
Single, front-to-back, or side-by-side pick point options
-
0.5-degree pick point resolution
-
Lightweight design
Technical details
Technical Specifications
Compatibility
- Compatible Shackle Size
- 5/8-inch
- Safe Limit
- (12) VTX A12
- Compatible shackle size
- 5/8 in
Build
- Finish
- Black powder coat
Dimensions
- Dimensions (H x W x D)
- 138 mm x 1013 mm x 78 mm (5.4 in x 39.8 in x 3.0 in)
- Net Weight
- 13.6 kg (30 lbs)
General
- Maximum
- (24) VTX A12
More details
Additional Information
Specifications:
- Construction:
- High-grade steel with anti-corrosion coating
- Plastic side covers
- Mechanical Limits:
