JBL VTX-A12-VT-GND Ground Stack Accessory for A12 and B28
Model VTX-A12-VT-GND
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

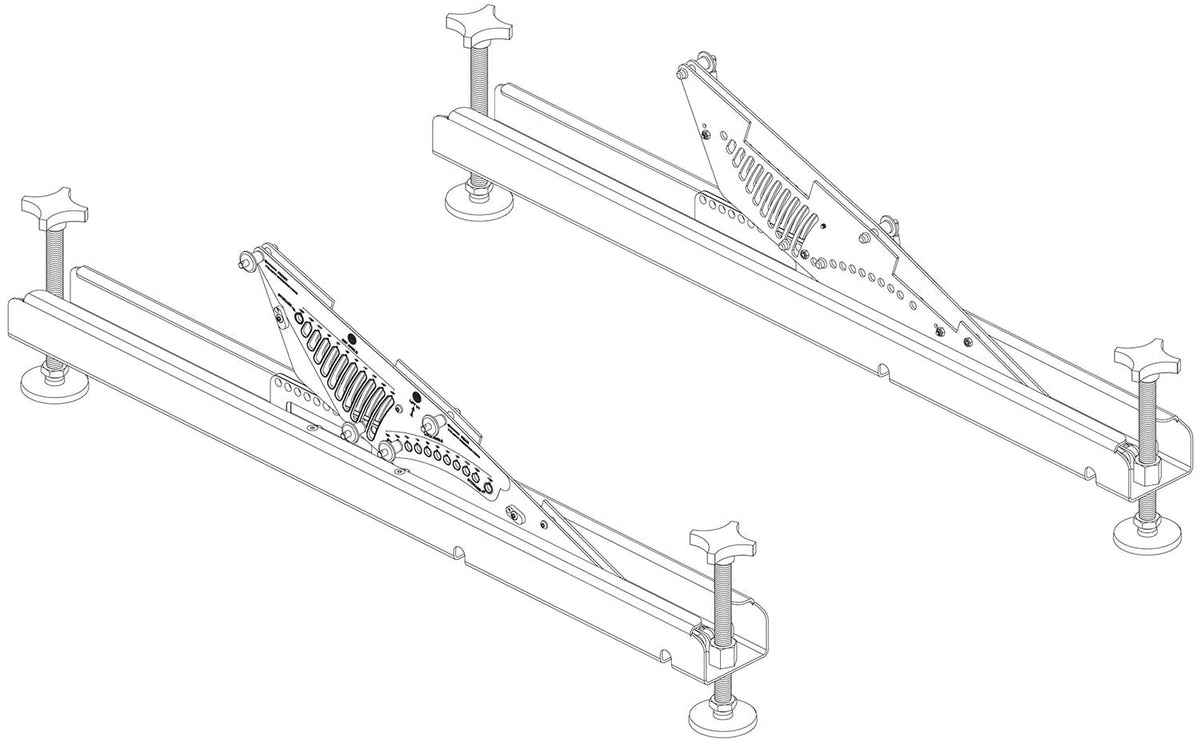

JBL VTX-A12-VT-GND Ground Stack Accessory for A12 and B28
The VTX A12 VT GND outrigger system works in conjunction with compatible Vertical Transporter carts to improve stability in ground stack configurations. The GND can be attached to a VT cart without removing speakers mounted on it. The two outriggers extend in front of and behind the stack and connect to the VT using the included quick-release pins. Screw jacks are used to lift the stack off the ground, while innovative spring-based angle-set hinges adjust overall aiming. The hinge mechanism uses gas springs that enable adjustment of the overall stack angle without manually lifting the speakers or moving heavy parts. Depending on the array geometry, the VTX A12 VT GND can support the weight of up to six A12 cabinets and allows for angles between -15 and +5 degrees. Ground stack parameters and mechanical safety of arrays are calculated using JBL’s LAC-3 software. This accessory is also compatible with the VTX B28 VT.
Why this product
Key Benefits
-
Outrigger system for VTX A12 VT, VTX B28 VT and other compatible Vertical Transporters
-
Four screw jacks included for height adjustment
-
Innovative spring-based angle-set mechanism
-
Compact and lightweight design
-
Range: -15 to +5 degree
-
Vertical Transporter not included
Technical details
Technical Specifications
Compatibility
- Safe Limit
- (4) VTX A12 or (3) VTX B28
Build
- Construction
- High-grade steel with anti-corrosion coating
- Finish
- Black powder coat
Dimensions
- Dimensions (H x W x D)
- 239 mm x 1234 mm x 1105 mm (9.4 in x 48.6 in x 43.5 in)
- Net Weight
- 25.6 kg (56.4 lbs)
General
- Maximum
- (6) VTX A12 or (4) VTX B28
More details
Additional Information
Specifications:
- Mechanical Limits:
