JBL Professional

JBL VTX-A12-VT Vertical Transport Cart for 4x A12 Line Array Speakers

Model VTX-A12-VT

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Authorized JBL Professional Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

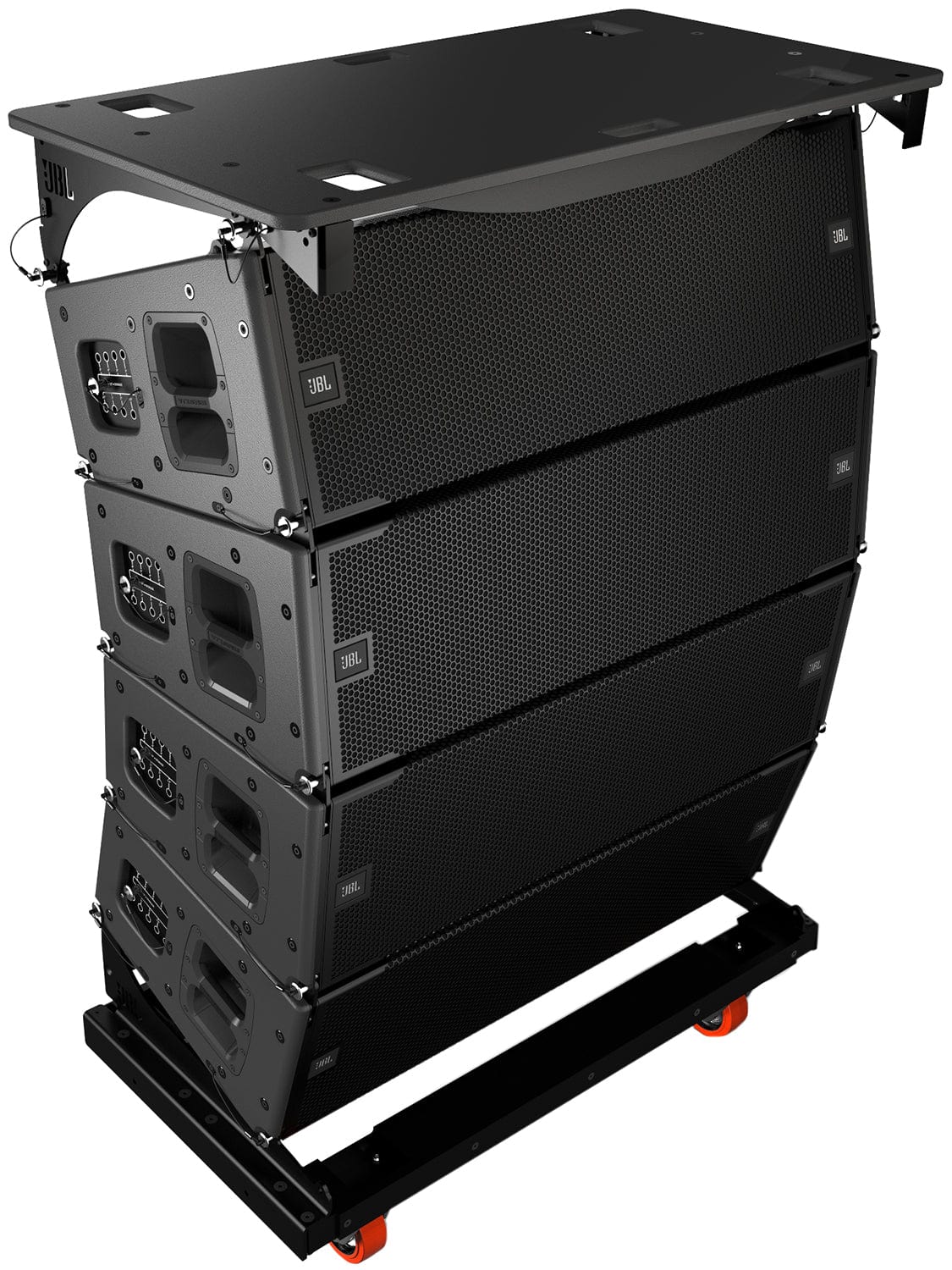

JBL VTX-A12-VT Vertical Transport Cart for 4x A12 Line Array Speakers

The VTX A12 VT Vertical Transporter is a robust, lightweight cart solution for vertically transporting up to four VTX A12 enclosures. The VTX A12 VT is constructed out of aluminum and steel parts and measures 45-inch (1143 mm) wide and 24-inch (610 mm) deep. Two attachment points are available on each side of the VTX A12 VT for connecting to the optional VTX A12 VT GND Ground Stack outrigger system. When used together, the VTX A12 VT becomes a fast and easy solution for deploying ground-stack arrays without having to remove the cabinets from the cart. The VTX A12 VT comes standard with a hard-top (VT-TOP) attachment that connects to the topmost cabinet of a stack to create a robust and defined footprint that stabilizes the carts during transportation and allows other gear to be placed above for maximum truck-pack efficiency. A reinforced protective cover is available (VTX A12 VT CVR) and supplied separately.

Why this product

Key Benefits

  • Vertical transport cart for (4) VTX A12 enclosures

  • Truck-friendly dimensions

  • Includes a hard top for easy stacking

  • Built-in stacking features for easy storage

  • Support for ground stacking

  • Lightweight design

  • Heavy-duty casters

Technical details

Technical Specifications

Build

Construction
High-grade steel with anti-corrosion coating, aluminum, Finnish birch plywood
Finish
Black powder coat, black DuraFlexTM

Dimensions

Dimensions (H x W x D)
258 mm x 1054 mm x 492 mm (10.1 in x 41.5 in x 39.9 in)

General

Transportation
(4) VTX A12
Ground Stack
(6) VTX A12
VTX A12 VT
29.3 kg (64.5 lbs)
VT-TOP
13.2 kg (29 lbs)
Complete Cart
285.7 kg (629.8 lbs)

More details

Additional Information

Specifications:

  • Mechanical Limits:
  • Net Weight:
