JBL VTX-A8-AF Array Frame for A8 and B18 Speakers with 1x Extension Bar

JBL VTX-A8-AF Array Frame for A8 and B18 Speakers with 1x Extension Bar

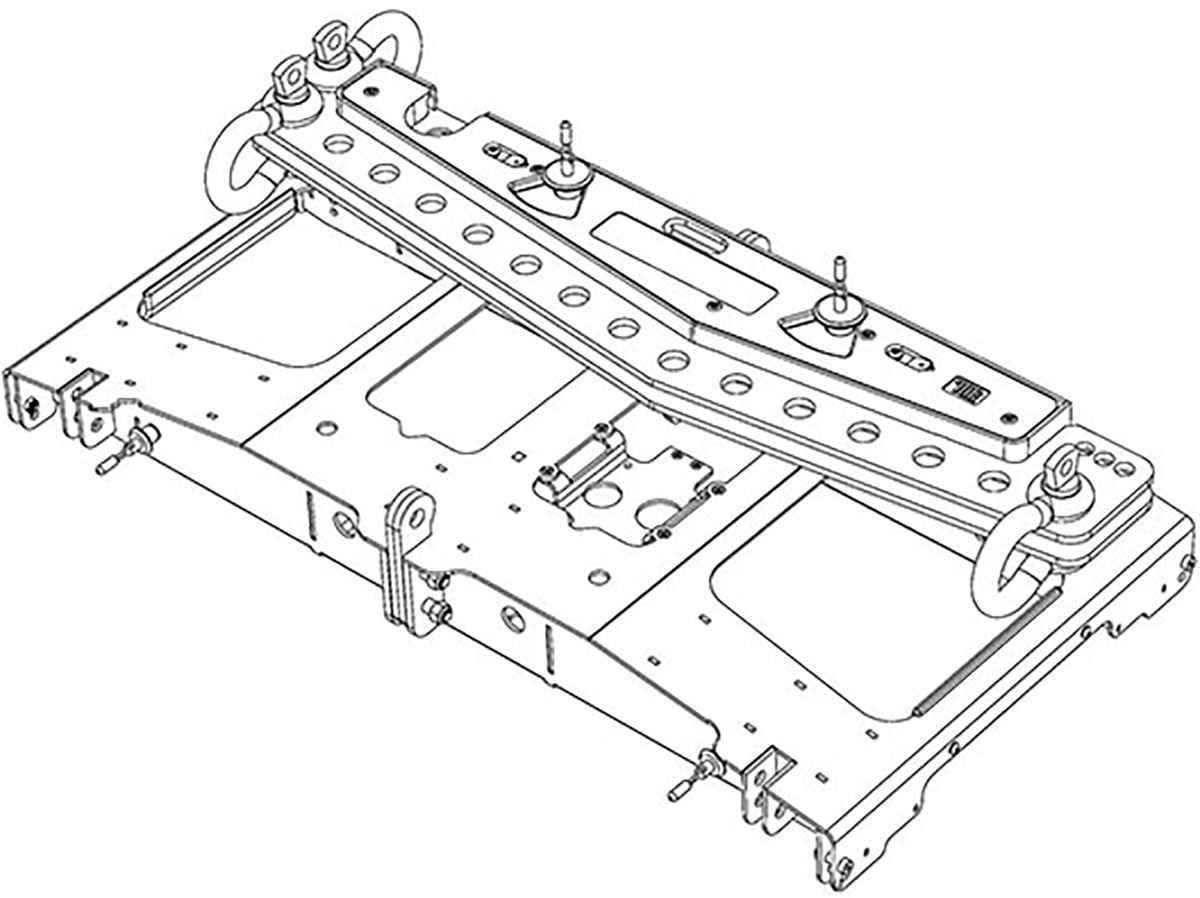

The VTX A8 AF is a lightweight array frame used for suspending VTX A8 and VTX B18 enclosures. The array frame was designed to allow for single-point, two-point front-to-back or side-by-side suspension methods (note that side-by-side mounting requires an additional VTX A8 AF EB extension bar). The extension bar is compatible with 5/8” shackles (included) and can be stored above the main frame during storage and transportation. The extension bar can extend to the front or rear of the frame to accommodate both up-tilt and downtilt aiming options. Three connection points are available for attaching the extension bar to the main frame, allowing for precise control of shackle positioning for single-point applications. Support for 3rd-party inclinometers is available using the included laser attachment bracket. One VTX A8 AF EB extension bar is included and additional extension bars can be purchased to facilitate side-by-side suspension. Configurations and load conditions for using the VTX A8 AF can be obtained using JBL’s LAC-III software application.
