JBL VTX-B28-SB Suspension Bar for VTX B28 Speakers
Model VTX-B28-SB
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL VTX-B28-SB Suspension Bar for VTX B28 Speakers

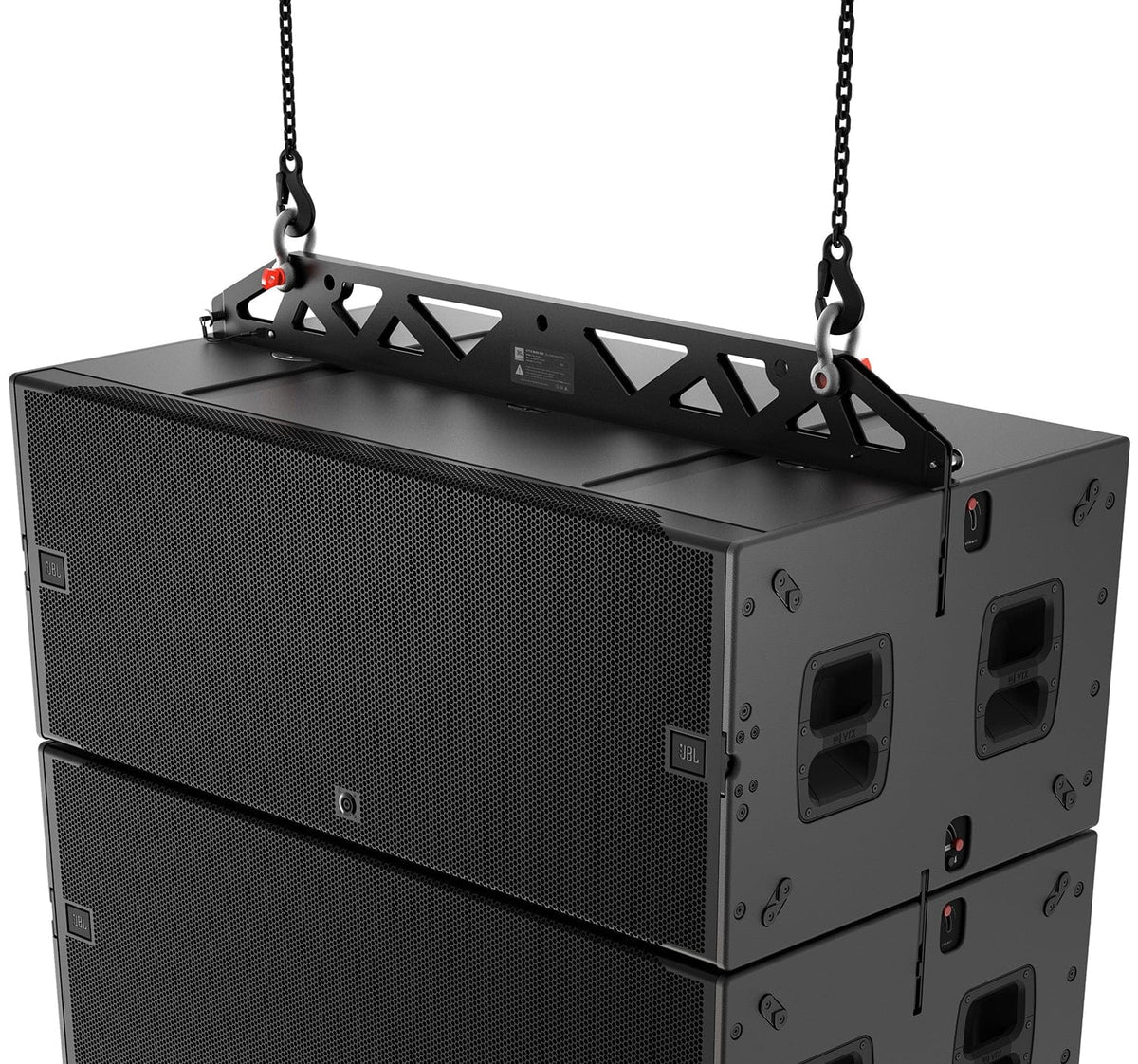

The VTX B28 SB is a lightweight suspension bar for use as an array frame when hanging VTX B28 subwoofer arrays. The suspension bar connects directly to the B28 left and right rigging bars and includes support for both single-point and dual-point configurations. Up to (16) VTX B28 cabinets can be suspended, and two 5/8-inch shackles are included. Several additional shackle point positions for secondary safety attachment cables are provided. The design is perfectly symmetrical and requires no specific orientation.
Why this product
Key Benefits
-
Versatile suspension bar accessory for B28 subwoofer
-
Single-point and dual-point support
-
Secondary safety attachment points included
-
Support for (16) B28 enclosures
-
Lightweight, fully symmetric design
Technical details
Technical Specifications
Compatibility
- Compatible Shackle Size
- 5/8 inch
- Safe Limit
- (16) VTX B28
- Shackle Size
- 5/8 inch
Build
- Construction
- High-grade steel with anti-corrosion coating
- Finish
- Black Powder Coat
Dimensions
- Dimensions (H x W x D)
- 133 mm x 1318 mm x 75 mm (5.2 in x 51.9 in x 3 in)
- Net Weight
- 8.2 kg (18.2 lbs)
General
- Maximum
- (16) VTX B28
More details
Additional Information
Specifications:
- Mechanical Limits:
