Product details
Overview

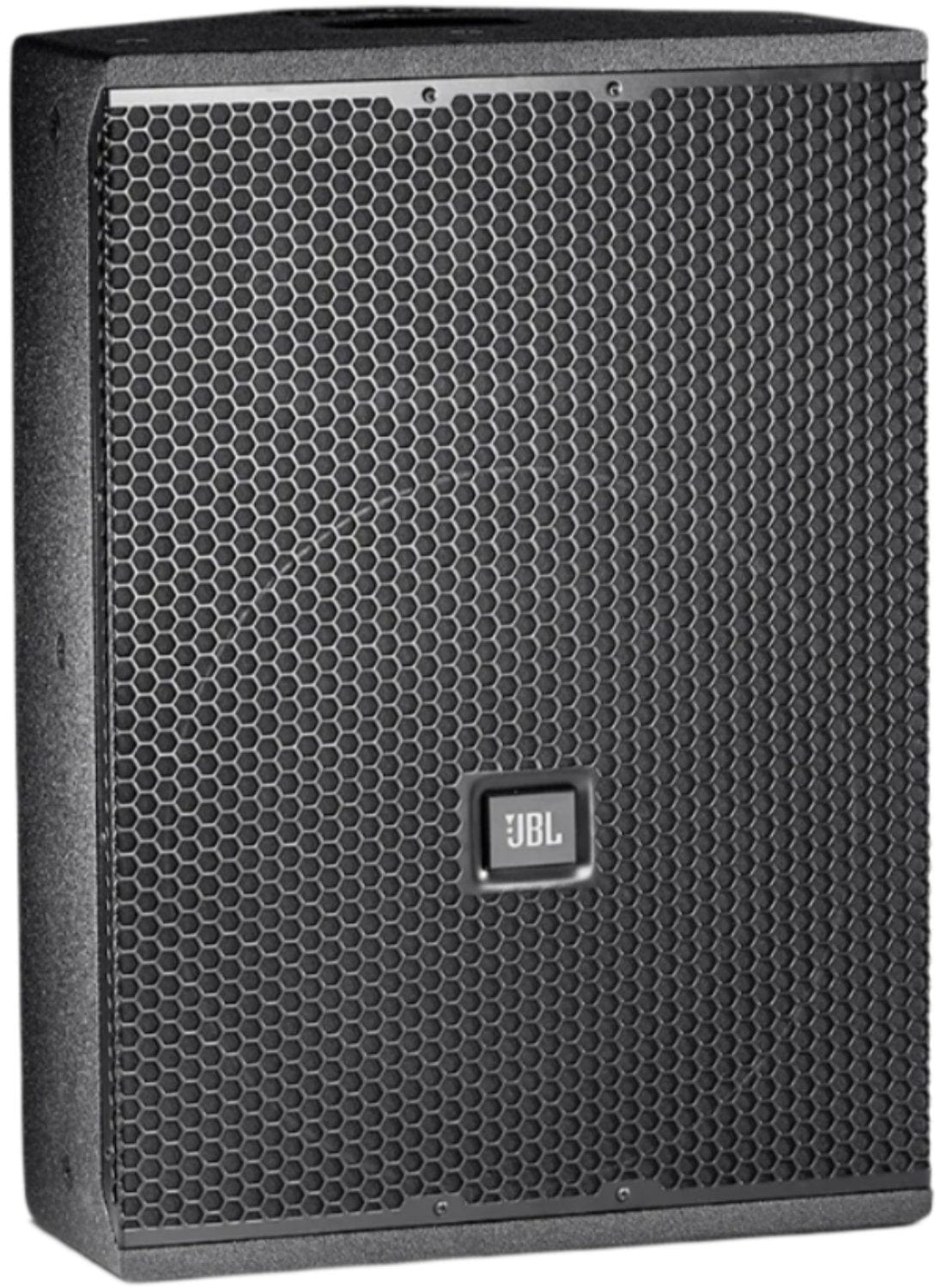

JBL VTX F15 15-inch Bi-Amplified 2-Way System
The VTX F series is a line of multi-purpose loudspeakers designed to give sound production companies a variety of flexible options for deploying high-quality audio, either as a stand-alone FOH system, a satellite and subwoofer system (with companion VTX F18S), or on-stage floor monitor and fill speaker.
Why this product
Key Benefits
-
D2430K D2 Dual Diaphragm Dual Driver
-
Progressive Transition Waveguide (90° x 50°)
-
Bi-Amplified 2-Way System
-
BSS Audio OmniDriveHD V5 Processing
-
For use with Crown ITechHD and Crown VRack
-
JBL HiQnet Performance Manager Control™
Technical details
Technical Specifications
System
- System Type
- 2-Way Premium Multi-Purpose Loudspeaker with 15” Differential Drive® Woofer and D2 Dual Driver
- LF Driver
- 1 x 15" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive®, Direct Cooled™ Transducer
- HF Driver
- 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
Performance & Coverage
- Coverage Pattern
- 90 x 50 degrees
- Sensitivity
- 98 dB LF, 108 dB HF
Connectivity
- Maximum Peak Output
- 134 dB (Preset: VTX F15 80)
Physical
- Dimensions (H x W x D)
- 640.1 mm x 457.2 mm x 327.7 mm (25.2 in x 18 in x 12.9 in)
- Net Weight (each)
- 22.9 kg (50.5 lbs)
- Enclosure
- Symmetrical stage monitor (53 degree angle); 18 mm, 11-ply Baltic birch plywood; black DuraFlex™ finish; integral recessed handle
- Suspension / Mounting
- Integral pole mount socket (35 mm diameter); 16 x M10 mount points; Optional U-bracket and extension rod (SS5-BK) accessories available
More details
Additional Information
Specifications:
- Components:
- 1 x 2265H 15" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive®, Direct Cooled™ Transducer
- 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
- Frequency Range (-10dB):
- 43 Hz - 21.5 kHz (short throw mode, free field)
- 42 Hz - 21.5 kHz (monitor mode, half-space)
- Frequency Response (±3 dB):
- 59 Hz - 20 kHz (short throw mode, free field)
- 58 Hz - 20 kHz (monitor mode, half-space)
- Nominal Impedance:
- LF = 8 ohms
- HF = 20 ohms
- Transducer Power Rating (AES 2 hour):
- 1000W LF, 200W HF continuous
- 4000W LF, 800W HF peak
