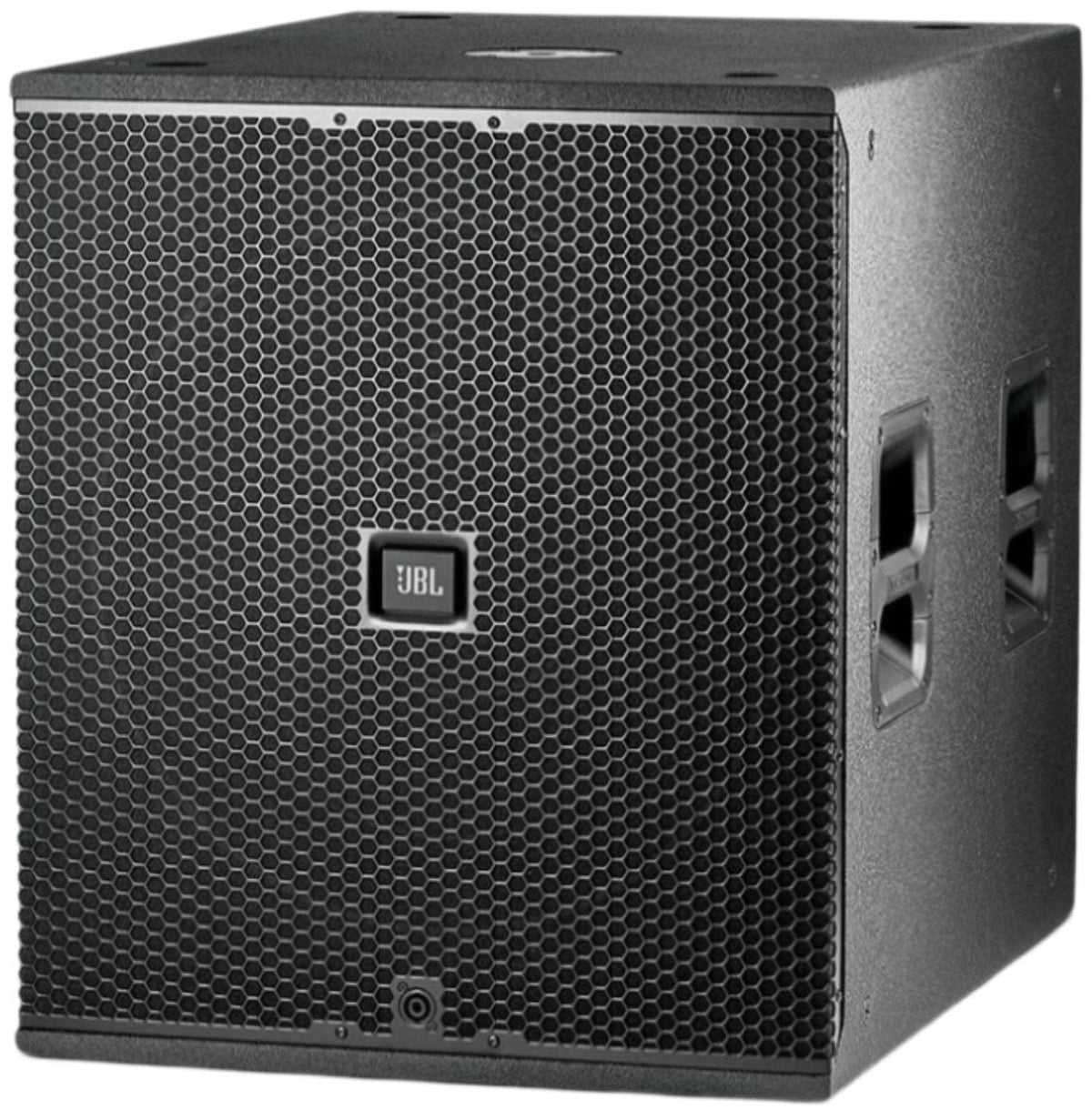

JBL VTX F18S Subwoofer
Model VTX-F18S
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL VTX F18S 18-inch Compact Subwoofer
The VTX F series is a line of multi-purpose loudspeakers designed to give sound production companies a variety of flexible options for deploying high-quality audio, either as a stand-alone FOH system, a satellite and subwoofer system (with companion VTX F18S), or on-stage floor monitor and fill speaker.
Why this product
Key Benefits
-
2269H Differential Drive 18"
-
Exceptionally High Power Handling (2000 W Continuous, 8000 W Peak AES 2 hr)
-
Massive Linear Excursion Capability (3.5" peak-to-peak)
-
Reverse-Cardioid Arrayable (front NL4)
-
Reinforced M20 Extension Rod Receptacle
-
16x M10 Mount Points (4 per side, 4 top/bottom)
-
Convenient Handle Locations (4x)
-
Attachment plates included as standard for stacked F18S plus F12 or F15 configurations
Technical details
Technical Specifications
System
- System Type
- High Power Single 18” Differential Drive® Subwoofer
- Components
- 1 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Neodymium Differential Drive®, Direct Cooled™ Transducer
- LF Driver
- 1 x 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Neodymium Differential Drive®, Direct Cooled™ Transducer
Frequency
- Frequency Range (-10dB)
- 24 Hz - 2.2 kHz
- Frequency Response (±3 dB)
- 32.5 Hz - 1.7 kHz
Performance & Coverage
- Sensitivity
- 97 dB half space
- Maximum SPL (1m)
- 133 dB (Preset: VTX F18S 80)
Power
- Nominal Impedance
- 8 ohms
Physical
- Dimensions (H x W x D)
- 640.1 mm x 548.6 mm x 713.7 mm (25.2 in x 21.6 in x 28.1 in)
- Net Weight (each)
- 45.4 kg (100 lbs)
- Enclosure
- 18 mm, 11-ply Baltic birch plywood; black DuraFlex™ finish
More details
Additional Information
Specifications:
- Transducer Power Rating (AES 2 hour):
- 2000W continuous
- 8000W peak
