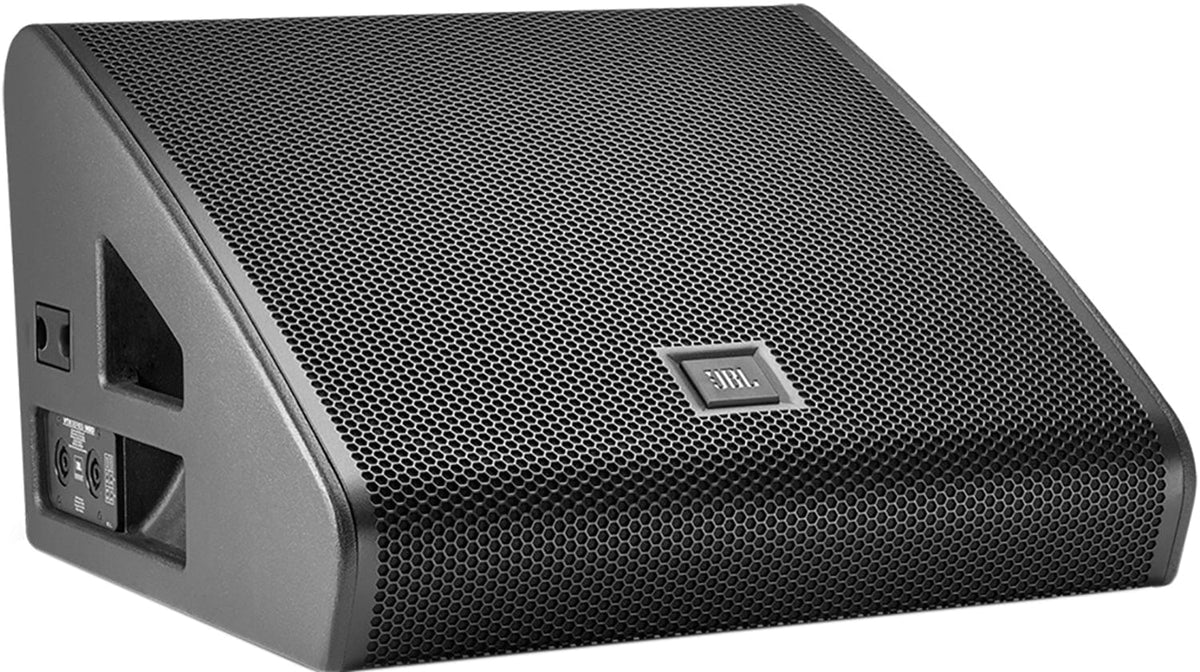

JBL VTX M20 Stage Monitor
Model VTX-M20
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL VTX M20 Dual 10-inch Professional Stage Monitor
The dual 10” VTX M20 professional stage monitor, featuring high performance differential drive woofers and the large-format D2 dual-diaphragm dual voice-coil high frequency driver. The option of Single-Channel (Passive) or Dual-Channel (Bi-Amp) operation modes comes standard, allowing the user to choose the right option for the application, with no compromise in output power or performance. Drawing on JBL’s unique history of sharing technological innovations across product lines, the VTX M Series HF waveguide features Image Control Waveguide Technology, which gives the VTX M20 a broad and stable 60H x 60V coverage that delivers maximum gain-before-feedback. All of these premium, tour-ready features are enclosed in a pair of modern, low profile designs that are lightweight, ergonomic, and show-ready for even the most high profile concert or broadcast events. And because VTX M Series is part of the VTX family, it comes fully supported in JBL HiQNet Performance Manager with V5 presets.
Why this product
Key Benefits
-
Elegant, low profile, compact design suitable for touring and high profile broadcast applications
-
State of the art JBL transducers, including Differential Drive™ cone transducers and D2 dual diaphragm dual voice coil compression driver
-
60x60 High Frequency Waveguide featuring JBL's patented Image Control Waveguide Technology
-
Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment
Technical details
Technical Specifications
System
- LF
- 1250 W Continuous (IEC / 100 hour)
- HF
- 100 W Continuous (IEC / 100 hour)
- LF
- 4 ohms
- HF
- 8 ohms
Frequency
- Frequency Range (-10 dB)
- 55 Hz - 19.5 kHz
- Low Frequency
- 2 x 2261H, 254 mm (10 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD ®, Direct Cooled ™
- High Frequency
- 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil
Performance & Coverage
- System Latency
- 3.33ms
Connectivity
- Maximum Peak Output
- 136dB (Preset: VTX M20 FR)
Physical
- Construction
- 18 mm, 11-ply Finnish birch plywood
- Grille
- Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing
- Dimensions (H x W x D)
- 342.9 mm x 575.0 mm x 515.3 mm (13.6 in x 22.6 in x 20.3 in)
- Net Weight
- 23 kg (51 lbs)
General
- Horizontal
- 60
- Vertical
- 60
- Passive
- 1250 W Continuous (IEC / 100 hour)
- Passive
- 4 ohms
- Monitor Angle
- 30 degrees
- Passive
- Neutrik ® Speakon ® NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ±
- Active
- Neutrik ® Speakon ® NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF)
More details
Additional Information
Specifications:
- System:
- Coverage Pattern (-6dB):
- System Input Power Rating:
- Active:
- Active:
- System Processing:
- Crown Audio I-Tech HD Series
- Crown Audio I-Tech 4x3500HD
- System Impedance:
- Active:
- Active:
- Coverage Pattern (-6dB):
- Transducers:
- Enclosure:
- Input Connectors:
- Input Connectors:
