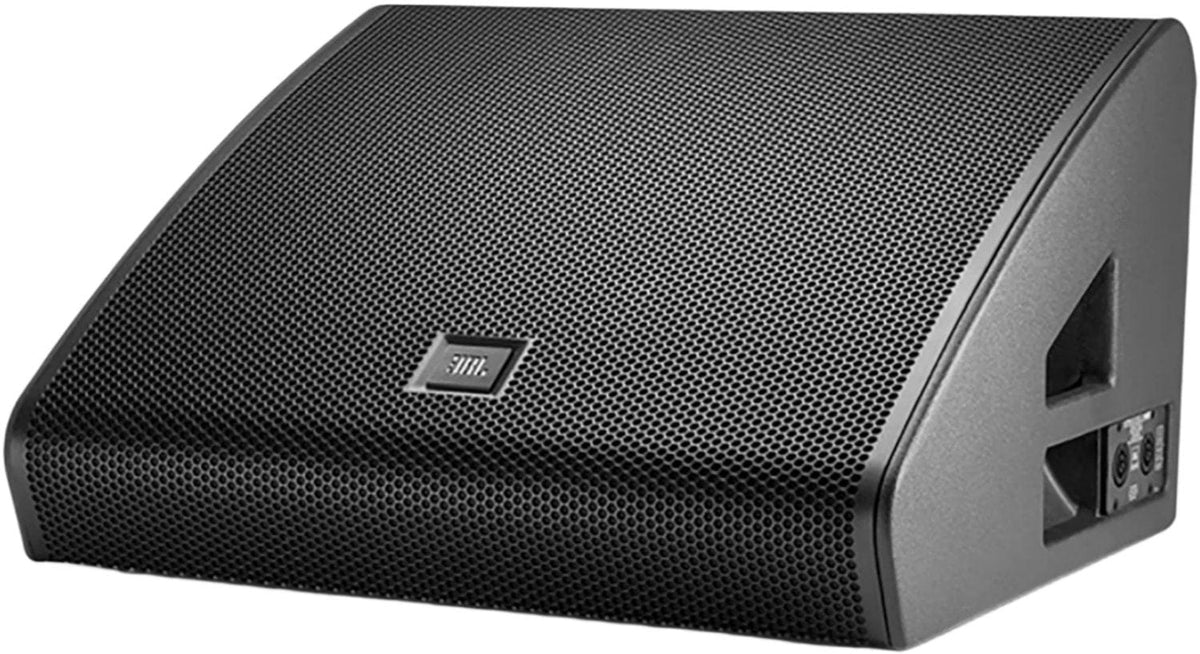

JBL VTX M22 Stage Monitor
Model VTX-M22
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL VTX M22 Dual 12-inch Professional Stage Monitor
The JBL VTX-M22 Series dual 12" professional stage monitor features a high-performance differential drive woofer and the large-format D2 dual-diaphragm dual voice-coil high-frequency driver. The option of Single-Channel (Passive) or Dual-Channel (Bi-Amp) operation modes comes standard, allowing the user to choose the right option for the application, with no compromise in output power or performance. Drawing on JBL’s unique history of sharing technological innovations across product lines, the VTX M Series HF waveguide features Image Control Waveguide Technology, which provides a broad and stable 60H x 60V coverage that delivers maximum gain-before-feedback. All of these premium, tour-ready features are enclosed in a modern, low-profile design that is lightweight, ergonomic, and show-ready for even the most high-profile concerts or broadcast events. And because VTX M Series is part of the VTX family, it comes fully supported in JBL HiQNet Performance Manager with V5 presets.
Why this product
Key Benefits
-
Elegant, low-profile, compact design suitable for touring and high-profile broadcast applications
-
State-of-the-art JBL transducers, including Differential Drive™ cone transducers and D2 dual diaphragm dual voice coil compression driver
-
60x60 High Frequency Waveguide featuring JBL's patented Image Control Waveguide Technology
-
Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment
Technical details
Technical Specifications
Frequency
- Frequency Range (-10 dB)
- 45 Hz - 19.5 kHz
- Low Frequency Transducer
- 2 x 2262H, 304 mm (12 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD®, Direct Cooled™
- High Frequency Transducer
- 1 x D2430H, D2 dual diaphragm, dual 76 mm (3 in) diameter voice coil
Performance & Coverage
- Coverage Pattern (-6 dB)
- Horizontal: 60; Vertical: 60
- System Latency
- 3.33ms
Power
- System Input Power Rating
- Passive: 1500 W Continuous (IEC / 100 hour); Active: LF: 1500 W Continuous (IEC / 100 hour); HF: 100 W Continuous (IEC / 100 hour)
- System Impedance
- Passive: 4 ohms; Active: LF: 4 ohms, HF: 8 ohms
Connectivity
- Maximum Peak Output
- 138 dB (Preset: VTX M22 FR)
- Input Connectors
- Passive: Neutrik® Speakon® NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ± ; Active: Neutrik® Speakon® NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF)
Physical
- Construction
- 11-ply Finnish birch plywood
- Grille
- Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing
- Dimensions (H x W x D)
- 380.1 mm x 670.8 mm x 555.0 mm (15.0 in x 26.4 in x 21.8 in)
- Net Weight
- 27 kg (60 lbs)
General
- System Processing
- Crown Audio I-Tech HD Series; Crown Audio I-Tech 4x3500HD
- Monitor Angle
- 30 degrees
