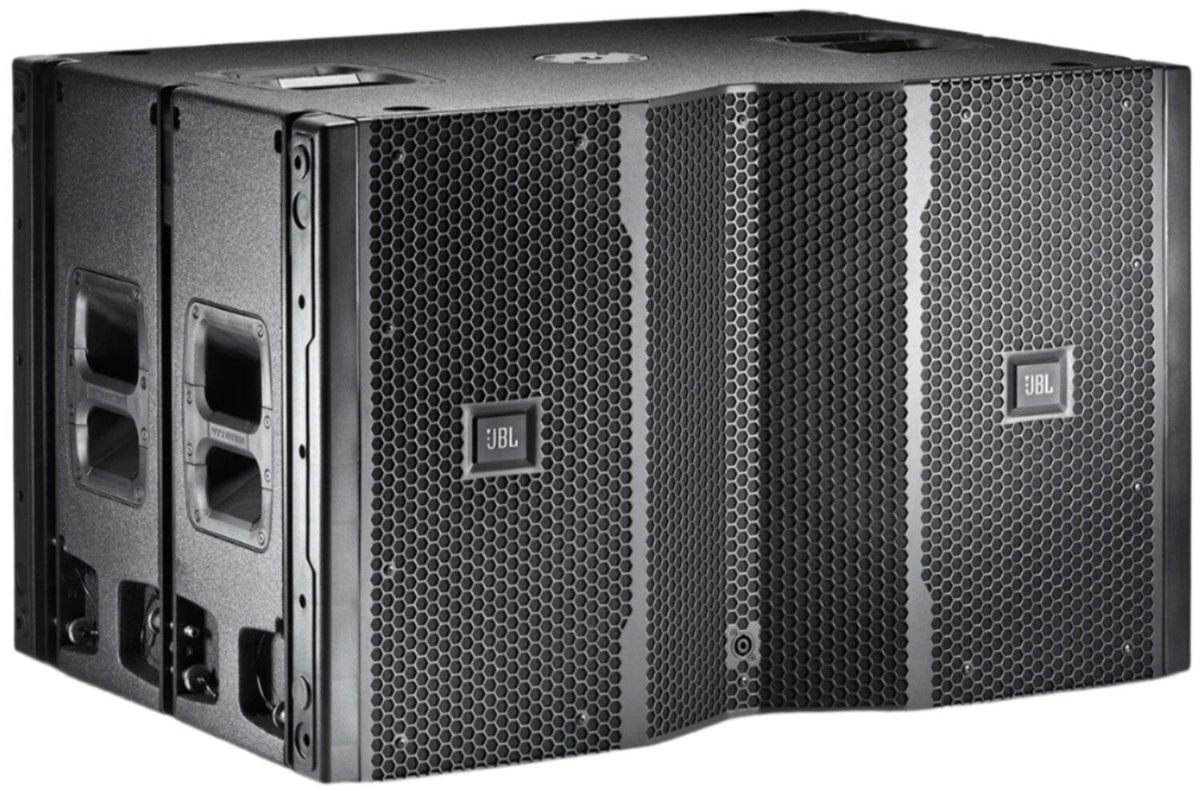

JBL VTX S25 Subwoofer
Model VTX-S25
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL VTX S25 Suspendable, Cardioid-Arrayable, Dual 15-inch Subwoofer
VTX S25 is a compact, high-output, cardioid arrayable line array subwoofer element designed to provide high impact, high quality sound reinforcement of sub-low frequencies for a wide variety of live music and A/V support applications. Patented Differential Drive® low frequency transducer technology and BSS® Audio OmniDrive HD V5 processing provide uncompromised sound quality while simplified suspension hardware and JBL HiQnet Performance Manager™ software provide efficient transport, fast setup and precise configuration. Whether ground-stacked, suspended beside or behind V20 or V25 arrays, or employed in hybrid arrays with VTX V20, the VTX S25 can be deployed in either front-firing or cardioid mode. For cardioid configurations (multiples of 3 S25 enclosures with 2 front-firing S25 : 1 rear firing S25) 15-25 dB broadband SPL rejection can be obtained behind the array.
Why this product
Key Benefits
-
2267H Differential Drive®, Dual Neodymium Magnet, Dual Voice Coil, Direct Cooled™ dual 15” transducers
-
Reverse-Cardioid Arrayable with convenient front-facing NL4 connector and OEM factory presets for cardioid operation
-
Companion subwoofer for VTX V20 (ground stack with V20 or suspend at the top or in the middle of VTX V20 arrays in forward firing or cardioid mode)
-
BSS® Audio OmniDriveHD V5 Processing for use with Crown Audio ITechHD or VRack via JBL HiQnet Performance Manager Control™
-
Exceptionally high power handling (4000W continuous, 16000W peak AES / 2hr), delivers highest SPL output in its class
Technical details
Technical Specifications
System
- System Type
- Suspendable, Cardioid-Arrayable, Dual 15" Subwoofer with Ultra Long Excursion Transducers
- LF Driver
- (2) JBL 2267H, 15 in, 4 in Dual Coil, Neodymium Differential Drive®
Frequency
- Frequency Range (-10dB)
- 26 Hz – 100 Hz (Preset: VTX S25 80)
Performance & Coverage
- Coverage
- Omnidirectional or Cardioid
Power
- System Amplification
- Crown Audio I-Tech HD
- Nominal Impedance
- 2x 8 ohms
Connectivity
- Maximum Peak Output
- 139 dB (Preset: VTX S25 80)
Physical
- Enclosure
- Finnish birch plywood, Black DuraFlex finish, ten integral recessed handles
- Dimensions (H x W x D)
- 566 mm x 909 mm x 630 mm 22.3 in x 35.8 in x 24.8 in
- Net Weight (each)
- 61.8 kg (136 lbs)
