JBL VTX S28 Subwoofer
Model VTX-S28
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

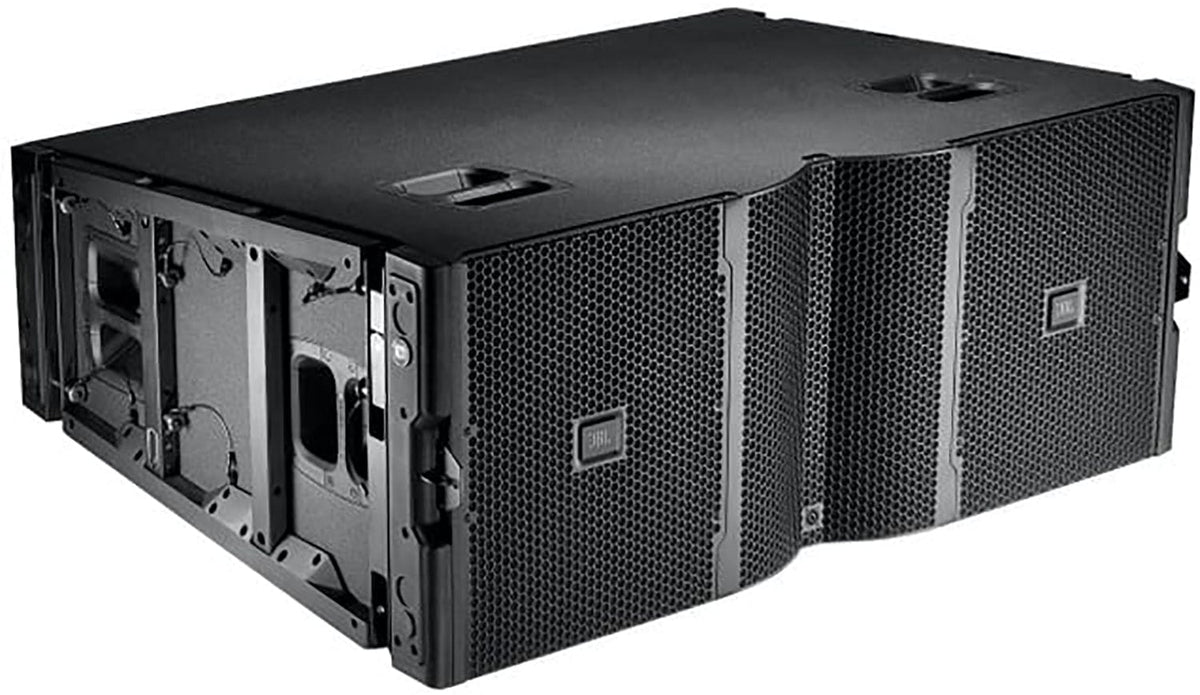

JBL VTX S28 Dual 18-inch Suspendable Subwoofer
VTX series dual 18" subwoofers employ two 2269H 18" transducers featuring Differential Drive technology with two voice coils, two neodymium magnets and extremely high peak-to peak excursion capabilities to deliver extended very low frequency performance.
The VTX S28 can be suspended or ground-stacked and is cardioid-arrayable in either configuration for improved rear rejection. Compatible with VTX V25 suspension, S28 can be suspended at the top of V25 arrays to extend the effective low frequency line length, providing improved vertical pattern control combined with improved rear rejection when used in cardioid mode.
Alternatively, S28 arrays (cardioid or front-firing) can be suspended beside or behind V25 arrays. For theatrical sound design, S28 can be suspended in the middle of flown V25 arrays to facilitate balcony and floor coverage by allowing improved underbalcony penetration. Larger cardioid configurations are also effective where S28 is suspended or ground-stacked in multiple cardioid blocks, each block consisting of 3 enclosures (2 front-firing, 1 rear-firing).
Why this product
Key Benefits
-
2269H Differential Drive®, Dual Neodymium Magnet, Dual Voice Coil, Direct Cooled™ dual 18” transducers
-
Reverse-Cardioid Arrayable with convenient front-facing NL4 connector and OEM factory presets for cardioid operation
-
Compatible with VTX V25 suspension - S28 can be suspended at the top or in the middle of V25 arrays to extend the effective low frequency line length
-
BSS® Audio OmniDriveHD V5 Processing for use with Crown Audio ITechHD or VRack and control via JBL HiQnet Performance Manager™
-
Companion subwoofer for VTX V20 or VTX V25-II
Technical details
Technical Specifications
System
- System Type
- Full Size Suspendable, Cardioid-Arrayable, Dual 18" Subwoofer with Ultra Long Excursion Transducers
- LF Driver
- (2) JBL 2269H 18-inch Neodymium Differential Drive® woofer
Frequency
- Frequency Range (-10dB)
- 29 Hz - 90 Hz (Preset: VTX S28 80)
Performance & Coverage
- Coverage
- Omnidirectional or Cardioid
Power
- System Amplification
- Crown Audio I-Tech HD
- System Impedance
- 2x 8 ohms
Connectivity
- Maximum Peak Output
- 139dB (Preset: VTX S28 80)
Physical
- Enclosure
- Finnish birch plywood, Black DuraFlex finish, ten integral recessed handles
- Inter-Enclosure Angles
- 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
- Dimensions (H x W x D)
- 493 mm x 1222 mm x 926 mm (19.4 in x 48.1 in x 36.5 in)
- Net Weight (each)
- 83.0 kg (183 lb)
