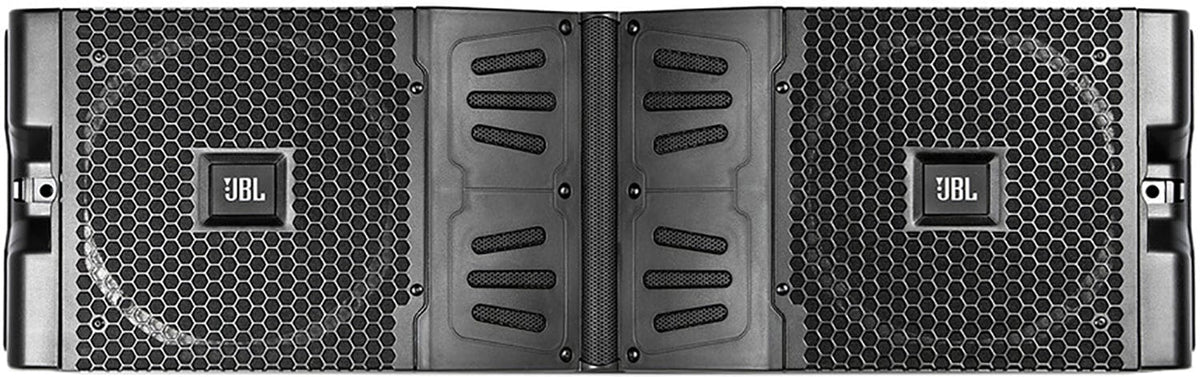

JBL VTX V20 Speaker
Model VTX-V20
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL VTX V20 Three-Way High Directivity Line Array Element
VTX V20 features the advanced technology and extraordinary performance of the groundbreaking VTX V25 in a smaller format, high power density 3-way system complemented by a new suspension system that provides efficient transport, fast setup and precise configuration. All VTX V20 components have been specifically engineered to provide stable 105 degree horizontal coverage and effective line source array coupling in the vertical plane while delivering linear, transparent sound up to surprisingly high output levels for its diminutive size.
Why this product
Key Benefits
-
Differential Drive Technology
-
4th generation advanced high frequency waveguide
-
Small Format Version of Patented D2 Dual Compression Driver
-
ASM Suspension System
-
V5 System Integration
Technical details
Technical Specifications
System
- System Type
- 3-Way High Directivity Line Array Element with D2 Technology
- LF
- 2x 8 ohms
- MF
- 8 ohms
- HF
- 8 ohms
- LF
- 16 ohms
- LF Driver
- (2) JBL 2261H 10-inch Neodymium Differential Drive® woofer
- MF Driver
- (4) JBL 2164H 5-inch Neodymium mid-range woofer
- HF Driver
- (3) JBL 2415K D2 Dual Diaphragm, Dual Voice Coil, Neodymium Compression Drive
Frequency
- Frequency Range (-10dB)
- 60 Hz – 20 kHz (Preset: VTX V20)
Performance & Coverage
- Horizontal Coverage (-6 dB)
- 105 degrees nominal (300 Hz - 16 kHz)
Power
- System Amplification
- Crown Audio I-Tech HD
Connectivity
- Maximum Peak Output
- 139 dB (Preset: VTX V20)
Physical
- Enclosure
- Cast aluminum front baffles and HF waveguide, Finnish birch plywood; black DuraFlex™ finish, integral recessed handles
- Inter-enclosure Angle
- 0, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 4, 5, 7.5, 10, 12.5
- Net Weight (each)
- 40 kg (88 lbs)
General
- MHF
- 8 ohms
More details
Additional Information
Specifications:
- Nominal Impedance:
- Active:
- Passive:
- Active:
- Dimensions (H x W x D) 280 mm x 911 mm x 402 mm (11 in x 35.9 in x 15.8 in)
