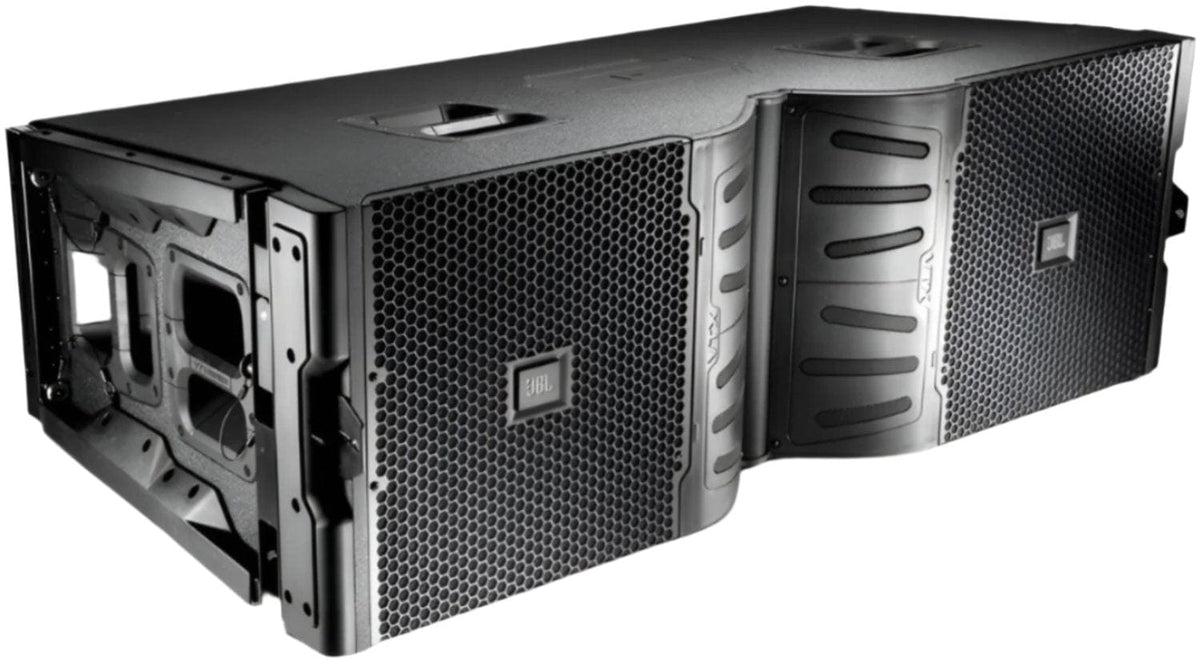

JBL VTX V25-II Full Range Speaker
Model VTX-V25-II
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL VTX V25-II Full Size 3-Way High-Directivity Line Array With Fixed Angle ASM Suspension
The VTX V25-II is a full size 3-way high-directivity line array element that includes a new 4th generation waveguide which improves long throw performance, wavefront control, and is an improved power match for the Crown IT4x3500HD. The transducer compliment for VTX V25-II is two 2000W 15" Differential Drive® woofers mounted in die cast aluminum baffles, four 8" Differential Drive midrange transducers firing through a patented (RBI Radiation Boundary Integrator®), and three revolutionary D2 Dual-Diaphragm Dual-Voice-Coil Compression Drivers loaded onto the newly designed waveguide. Patented rigging, Crown I-Tech HD amplification with BSS ® OmniDriveHD V5 Processing, and JBL HiQnet Performance Manager™ configuration and control software complete the system package.
Why this product
Key Benefits
-
New 4th Generation HF Waveguide technology
-
Revolutionary D2 Dual Diaphragm, Dual Voice Coil Compression Driver
-
JBL’s patented RBI (Radiation Boundary Integrator®)
-
Cardioid-Arrayable Subwoofer Enclosure Models
-
Aluminum front baffles for reduced cabinet height, weight and improved heat transfer
-
Patented JBL S.A.F.E.™ Suspension System
-
V5 Processing with Crown I-Tech HD or VRACK
-
JBL HiQnet Performance Manager™ System Configuration and Control
-
Available with either fixed angle tension suspension (V25-II) or compression suspension (V25-II-CS) hardware
Technical details
Technical Specifications
System
- System Type
- Full Size 3-Way High Directivity Line Array Element with D2 Dual Drivers
- LF
- 141 dB
- MF
- 140.5 dB
- HF
- 149.5 dB
- LF
- 2x 8 ohms
- MF
- 8 ohms
- HF
- 8 ohms
- LF Driver
- (2) JBL 2267H 15-inch woofer
- MF Driver
- (4) JBL 2168H 8-inch mid-frequency driver
- HF Driver
- (3) JBL 2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
Frequency
- Frequency Range
- (-10dB): 35Hz - 18 kHz (Preset: VTX V25-II)
Performance & Coverage
- Horizontal Coverage
- (-6 dB): 90 degrees nominal (200 Hz - 16 kHz)
Power
- System Amplification
- Crown Audio I-Tech HD
Physical
- Enclosure
- Cast aluminum front baffle, Finnish birch plywood, black DuraFlex™ finish; four integral recessed handles
- Inter-enclosure Angle
- 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
- Dimensions (H x W x D)
- 414 mm x 1223 mm x 614 mm (16.3 in x 48.2 in x 24.2 in)
- Net Weight (each)
- 82.6 kg (182 lb)
More details
Additional Information
Specifications:
- Maximum Peak Output:
- Nominal Impedance:
