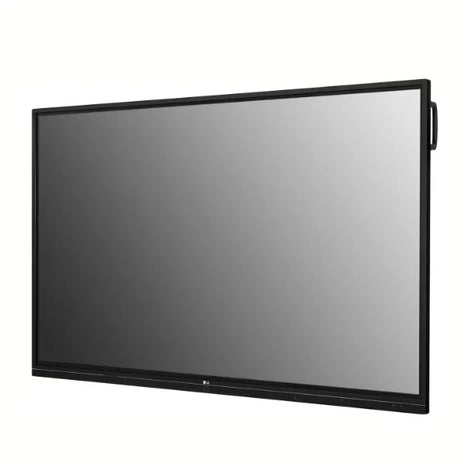

LG 55TR3BG-BX 55" 4K Interactive Display
Model 55TR3BG-BX
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Screen: 55-inch 4K UHD interactive display
- Native resolution: 3840 × 2160
- Touch: IR, up to 20 points; host OS affects supported points
- Published brightness basis: 310 cd/m² typical without glass in the detailed UK/Saudi specification; confirm regional configuration
- Platform: Android 8, 3 GB RAM and 16 GB storage in the Saudi -B reference
- Authorized LG Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the LG 55TR3BG-BX?
The LG 55TR3BG-BX is a 55-inch 4K UHD interactive display for shared annotation, presentations and collaborative sessions. The referenced Android 8 platform and up to 20-point IR touch suit legacy classroom and meeting-room workflows. Plan the host connection, current software support, viewing height and VSYS mounting arrangement as a complete room system. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A 55-inch interactive board with 3840 × 2160 native resolution and an integrated touch surface. Android 8, 3 GB RAM and 16 GB storage in the Saudi -B reference. A compatible host uses video plus touch USB when required; an HDMI picture alone does not return touch control. Optional PCs and conferencing equipment must be specified separately.
Why this product
Key Benefits
-
Touch
IR, up to 20 points; host OS affects supported points.
-
Published brightness basis
310 cd/m² typical without glass in the detailed UK/Saudi specification; confirm regional configuration.
-
Platform
Android 8, 3 GB RAM and 16 GB storage in the Saudi -B reference.
Use cases
Applications
-
55-inch shared annotation and presentation spaces
-
Training and education rooms with verified host/software compatibility
-
Legacy interactive board replacements with touch USB and fixing checks
Technical details
Technical Specifications
Display
- Screen
- 55-inch 4K UHD interactive display
- Native resolution
- 3840 × 2160
- Published brightness basis
- 310 cd/m² typical without glass in the detailed UK/Saudi specification; confirm regional configuration
- Screen
- 55-inch 4K UHD interactive display.
- Native resolution
- 3840 × 2160.
Touch
- Touch
- IR, up to 20 points; host OS affects supported points
- Touch host connection
- USB touch connection alongside the selected video source; check host drivers
System & Software
- Platform
- Android 8, 3 GB RAM and 16 GB storage in the Saudi -B reference
Audio & Camera
- Audio
- Built-in 12 W × 2 speakers
Connectivity
- Video input
- Three HDMI and RGB; no DisplayPort or DVI-D in the reference
Physical & Mounting
- VESA mounting
- 400 × 200 mm
- Reference panel weight
- 27 kg
- Reference dimensions (W × H × D)
- 1271 × 774 × 84 mm
Certifications & Warranty
- Operating rating
- 16/7, landscape only
Model & Identification
- Model
- 55TR3BG-BX
- Manufacturer part number
- 55TR3BG-BX
In the box
What's Included
-
One LG 55TR3BG-BX interactive display; confirm the quoted regional configuration
-
Power cord (3 m)
-
USB Type-A-to-Type-B cable (5 m)
-
HDMI cable (3 m)
-
Two writing pens
-
User manual
-
Quick setup guide
-
Remote control with two batteries
-
Wi-Fi module
Installation
Installation & Mounting
Recommended Compatible Equipment
VSYS VS01E-46F Fixed TV Mount. Optional VSYS fixed wall mount. Its 37–86-inch, 45 kg rating accommodates the 55-inch, 27 kg reference board. Check the 400 × 200 mm pattern, screw engagement, complete load, wall structure and suitability for touch interaction.
VSYS VTLX16-69FW TV Cart. Optional VSYS mobile floor stand. Its 55–100-inch, 120 kg rating and listed 400 × 200 mm pattern cover this reference board. Verify the complete load, touch-use stability, allowed orientation, working height, brakes and floor conditions.
Installation
Match 400 × 200 mm VESA and the 27 kg reference panel weight to the VSYS support. Allow for attached equipment and touch interaction loads, and confirm the structural fixings, stand stability, height, orientation, ventilation and lifting route. Check the exact regional suffix, host drivers, touch-point support and application availability for this legacy model. Use landscape orientation within the 16/7 operating rating. An OPS slot or kit is not an included Windows PC. Cameras, conferencing software, room microphones and mounts are separate. The -B manufacturer reference is used for this listing; confirm the exact -BX regional package before ordering.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your 55TR3BG-BX quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
