LG

LG 55VM5J-H 55-Inch FHD Video Wall Display, 500 Nits

Model 55VM5J-H

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.aeDatasheet: Download PDF

  • 55-inch Full HD IPS panel: 1920 × 1080 pixels per tile
  • 500 cd/m² typical brightness with 24/7 operation
  • 1.74 mm panel bezel-to-bezel design for tiled arrays
  • DisplayPort output, webOS 4.1 and 600 × 400 mm VESA
Digital Signage & Video Walls Part of our complete AV solutions Explore Solutions

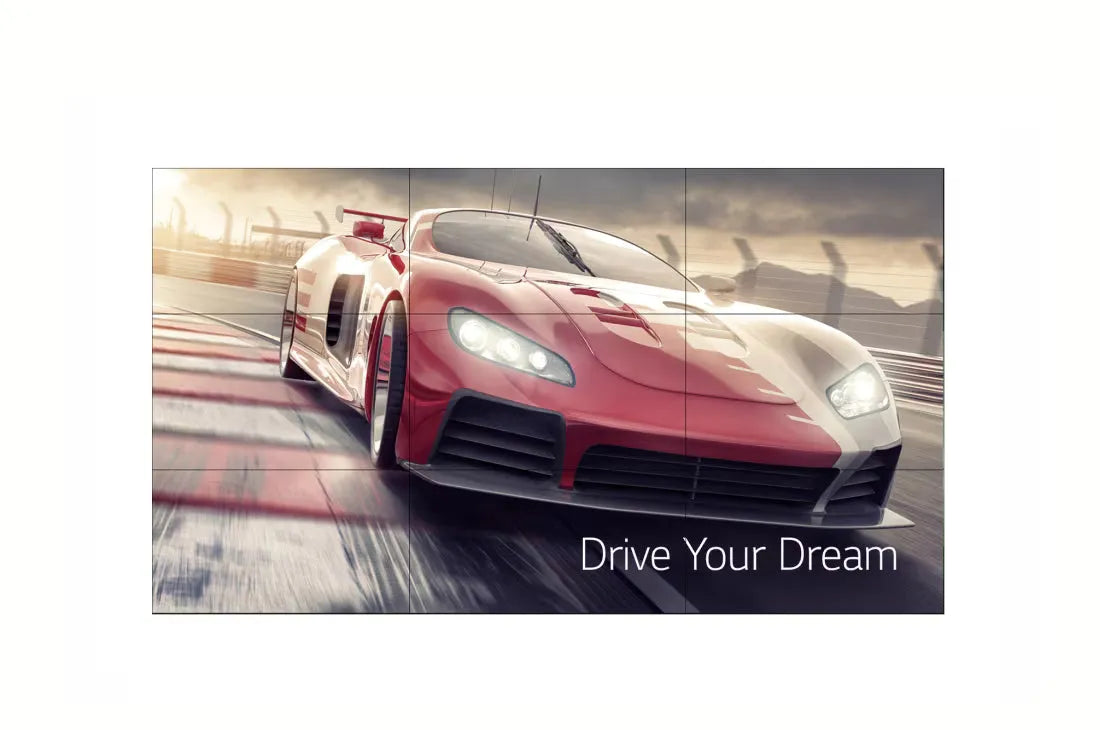

LG 55VM5J-H 55-inch narrow-bezel video wall display
  • Authorized LG Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the LG 55VM5J-H?

The LG 55VM5J-H is a 55-inch Full HD IPS video wall display for indoor installations that need a large, tiled visual canvas. Its 500-nit typical brightness, 1.74 mm panel bezel-to-bezel design and 24/7 operating rating suit control rooms, corporate reception areas and retail presentation walls. Each unit is one display panel; the finished wall requires a planned array, mounting system and content source.

A dedicated video wall panel combines with matching units to show content across multiple screens. The 55VM5J-H provides 1920 × 1080 pixels per panel, with DisplayPort output and tile-mode settings for multi-display layouts. Its narrow physical bezels reduce interruptions between images, while white-balance controls help installers match neighbouring panels. The result depends on the source resolution, signal design and commissioning of the complete wall.

Why this product

Key Benefits

  • 1.74 mm panel bezel-to-bezel

    Slim adjoining edges reduce the physical separation between tiles. LG separately specifies 2.49 mm active-area-to-active-area; these measurements describe different parts of the image boundary.

  • 500-nit IPS panel

    A typical brightness of 500 cd/m² and wide 178° viewing angles support indoor viewing from different positions across a lobby or operations room.

  • 24/7 operating rating

    Continuous-operation capability accommodates monitoring walls and signage schedules that extend beyond normal business hours, subject to LG installation and operating guidance.

  • Image-gap reduction

    LG's image-processing algorithm adjusts objects crossing tiled boundaries to make moving content easier to follow across the wall.

  • webOS 4.1 with built-in processing

    The integrated signage platform supports compatible playback and web applications, reducing the need for a separate player in suitable workflows.

  • DisplayPort daisy-chain output

    Route a supported HDMI, DVI or DisplayPort input onward through DP output. Source format, cabling and layout still determine the signal architecture.

  • Colour and white-balance adjustment

    Colour temperature and greyscale white-balance controls help an installer align the appearance of panels during commissioning.

  • Installation flexibility

    Portrait and landscape support, a 600 × 400 mm VESA interface and an 86.9 mm cabinet depth allow the panel to be incorporated into a properly engineered video wall.

Use cases

Applications

  • Control rooms

    Combine operational dashboards and monitoring content in an indoor multi-panel array.

  • Corporate reception areas

    Create a larger branded presentation surface behind a reception desk or in an atrium.

  • Retail showrooms

    Present product films and campaign content across a tiled feature wall.

  • Transport and public information

    Build indoor information walls with a content system sized for the required sources and layout.

Technical details

Technical Specifications

Display

Screen Size
55 inches
Panel Technology
IPS; direct LED backlight
Native Resolution
1920 × 1080 (Full HD) per panel
Aspect Ratio
16:9
Refresh Rate
60 Hz
Brightness
500 cd/m² typical
Contrast Ratio
1,000:1 static
Viewing Angle
178° horizontal / 178° vertical
Response Time
8 ms grey-to-grey
Colour Gamut
NTSC 72%
Surface Haze
28%

System & Software

Operating System
webOS 4.1
Internal Storage
8 GB

Connectivity

Video Inputs
2 × HDMI; 1 × DisplayPort; 1 × DVI-D
Video Output
DisplayPort output; supported input sources: HDMI / DVI / DP
Control and Connectivity
RS-232C in/out; RJ45 LAN; USB 2.0 Type-A; IR input; audio input/output

Physical & Mounting

Colour Depth
10-bit; 1.07 billion colours
Bezel-to-Bezel
1.74 mm
Orientation
Portrait and landscape
Dimensions (W × H × D)
1212.2 × 683 × 86.9 mm
Weight
18.8 kg
VESA Mount
600 × 400 mm

Power

Power Consumption
160 W typical; 190 W maximum
Power Supply
100–240 V AC, 50/60 Hz

Operating Conditions

Operating Temperature
0–40°C
Operating Humidity
10–80%

Certifications & Warranty

IP Rating
IP5X dust protection; not an outdoor waterproof rating

Model & Identification

Model
55VM5J-H

General

Active-Area-to-Active-Area
2.49 mm
Duty Cycle
24/7

In the box

What's Included

  • LG 55VM5J-H display × 1

  • Remote control with two batteries

  • Power cord

  • RS-232C cable

  • LAN cable

  • DisplayPort cable

  • IR receiver

  • Guide bracket and screws

  • Manual

Installation

Installation & Mounting

Recommended Mounting Accessories

For a tiled wall, specify the VSYS VSVW02-46T Push-Pull Pop-Out Video Wall Mount. Its 37–70-inch range, 45 kg per-screen capacity and 600 × 400 mm VESA support match this 55-inch, 18.8 kg panel. Use one mount per panel and plan alignment, supporting structure and service clearances for the complete array. Sold separately.

VSYS VSVW02-46T Push-Pull Pop-Out Video Wall Mount

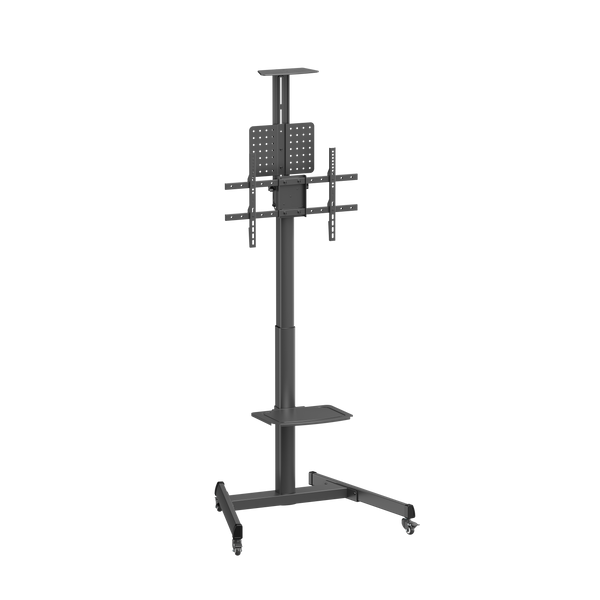

Recommended Floor Stand

For one panel used as a standalone display, choose the VSYS VTLS17-46TW Telescopic Height-Adjustable TV Cart. Its 37–70-inch screen range, 70 kg display capacity and VESA support including 600 × 400 mm accommodate this panel. This is a single-screen stand, not a support frame for a tiled video wall. A floor-standing multi-panel array requires a dedicated engineered VSYS solution. Confirm mounting hardware and operating orientation during installation, secure cables and lock the casters during use. Sold separately.

VSYS VTLS17-46TW Telescopic Height-Adjustable TV Cart

Installation

Plan the array dimensions, structural support, ventilation, cable routes and service access before installation. Commission tile settings, panel alignment and white balance together. A processor or external source system may be required for multiple independent feeds or a custom canvas.

Ownership and support

Ownership & Support

Expandability

Additional matching panels can extend the array. Check signal-chain limits, source resolution, panel matching and content licensing before adding rows or columns; a larger physical wall does not increase the resolution of the original source.

Warranty

Request the applicable UAE warranty term and service conditions with the quotation. Published terms for other LG regions do not establish the warranty supplied with a UAE order.

Support

For a Corporate AV project enquiry in Dubai, Abu Dhabi or elsewhere in the UAE, provide the required panel count, wall layout, operating hours and content sources. This allows the display, mounting, signal distribution and commissioning scope to be assessed together.

Complete your solution

Recommended Accessories

Expert FAQs

Is the LG 55VM5J-H a 4K display?

Each 55VM5J-H panel has a native Full HD resolution of 1920 × 1080. A 2 × 2 array has a combined pixel grid of 3840 × 2160, but displaying a true pixel-mapped canvas also requires an appropriate source and signal configuration.

What does the 1.74 mm bezel measurement mean?

It is LG's panel bezel-to-panel bezel measurement between adjoining units. LG lists active-area-to-active-area as 2.49 mm. The panel boundaries remain physically present, so the wall should not be specified as a bezel-free LED canvas.

Can the 55VM5J-H run continuously?

LG rates this model for 24/7 operation. The installation must still meet the manufacturer's ventilation, temperature and content-management guidance; the rating is not a guarantee against image retention or installation-related faults.

Is this video wall panel suitable for outdoor use?

The 500-nit panel is intended for indoor projects. IP5X describes dust protection and does not provide a waterproof rating. Direct sunlight, rain exposure and outdoor thermal conditions require a display designed for those conditions.

Does it need an external video wall controller?

Not every layout needs the same controller. The panel includes tile settings, webOS playback and DP daisy-chain output, but multiple independent sources, live switching or a bespoke pixel canvas can require an external processor. Define the content workflow before choosing the controller.

Can it be installed in portrait orientation?

Yes. LG specifies both portrait and landscape use. Follow the mounting orientation, ventilation and clearances in the installation manual and commission the content orientation accordingly.

Which mount should be specified?

The panel weighs 18.8 kg and uses a 600 × 400 mm VESA interface. Select a video wall mounting system with adequate load capacity, alignment adjustment and panel service access, and have the supporting structure assessed for the complete array.

What is included with one 55VM5J-H?

One product unit is one display panel, not a complete multi-panel video wall. LG's published basic accessories include remote, power and signal/control cables, IR receiver, guide bracket, screws and manual. Confirm regional pack contents; mounts, structural work and external processing are separate project items.

How can I request a LG 55VM5J-H 55-Inch FHD Video Wall Display, 500 Nits quotation in the UAE?

Request a project quotation from Corporate AV for Dubai, Abu Dhabi or elsewhere in the UAE. Share the screen quantity, site, operating hours and preferred VSYS mount or floor stand so the proposal can identify compatible equipment and installation requirements. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Confirm availability, lead time, regional warranty and separately sold accessories with the quotation.
