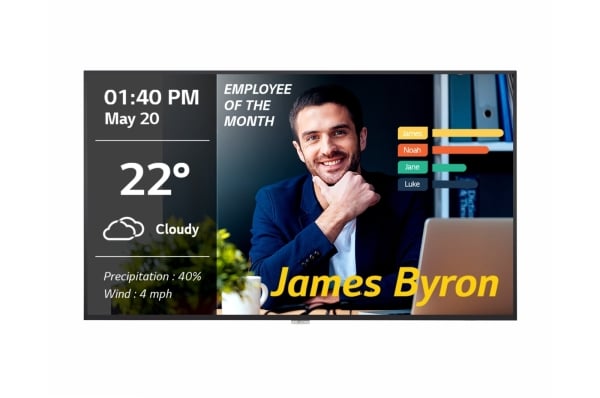

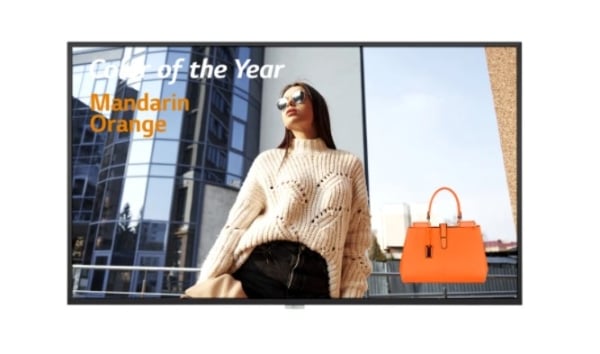

LG 75UH5F-H 75-inch 4K UHD Digital Signage Display
Model LG 75UH5F-HMPN 75UH5F-H
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Screen: 75-inch UHD commercial signage
- Resolution: 3840 × 2160 (4K UHD)
- Typical brightness: 500 cd/m²
- Operating rating: 24/7
- Platform: webOS 4.1, 8 GB internal memory
- Authorized LG Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the LG 75UH5F-H?
The LG 75UH5F-H is a 75-inch commercial 4K signage display for indoor information screens, promotional content and presentation spaces. Its 500-nit typical brightness and 24/7 operating rating suit demanding content schedules, while webOS 4.1 provides a built-in platform for compatible signage applications. HDMI, DisplayPort and DVI-D inputs allow the source equipment to be planned around the existing installation. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A 75-inch UHD display for commercial signage with 3840 × 2160 resolution. It is an earlier webOS generation, so confirm current CMS compatibility, regional availability and support before specifying a new deployment or replacing an existing display.
- Platform: webOS 4.1, 8 GB internal memory.
Use cases
Applications
-
75-inch reception and retail information screens
-
Corporate announcements and promotional content
-
Replacement projects using a separately verified source and CMS
Technical details
Technical Specifications
Display
- Screen
- 75-inch UHD commercial signage
- Resolution
- 3840 × 2160 (4K UHD)
- Typical brightness
- 500 cd/m²
- Screen
- 75-inch UHD commercial signage.
- Resolution
- 3840 × 2160 (4K UHD).
- Typical brightness
- 500 cd/m².
System & Software
- Platform
- webOS 4.1, 8 GB internal memory
Audio & Camera
- Audio
- 10 W × 2 built-in speakers
Connectivity
- Video inputs
- HDMI × 3, DisplayPort, DVI-D
- Video output
- DisplayPort
- Control and network
- RS-232C in/out, RJ45 LAN, built-in Wi-Fi
Physical & Mounting
- Orientation
- Portrait or landscape
- VESA mounting
- 600 × 400 mm
- Display weight without stand
- 41.5 kg
- Dimensions (W × H × D)
- 1682.4 × 960.3 × 57.9 mm
Certifications & Warranty
- Operating rating
- 24/7
- Operating rating
- 24/7.
Model & Identification
- Model
- 75UH5F-H
- Manufacturer part number
- 75UH5F-H
In the box
What's Included
-
One LG 75UH5F-H display
-
Remote control with two batteries
-
Power cord
-
Quick start guide
-
IR/light sensor receiver
-
DisplayPort cable, 1.8 m
-
Regulation book
-
Phone-to-RS-232C adapter
-
Eye-bolt accessory; confirm model-specific lifting instructions
Installation
Installation & Mounting
Recommended Compatible Equipment

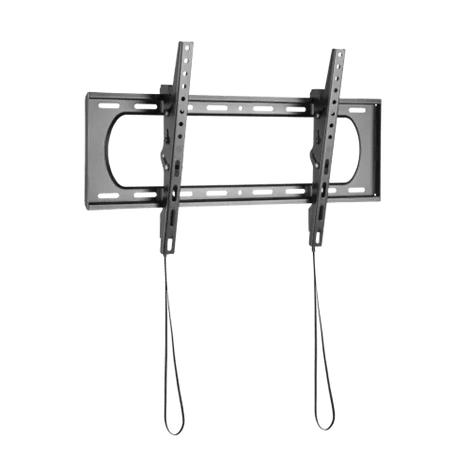

VSYS VS01A-46T Tilting TV Mount. Optional VSYS wall mount: its published screen and load ranges accommodate this 75-inch, 41.5 kg display with 600 × 400 mm mounting. Verify the exact bracket clearance and fixing positions, screw length and wall structure.
VSYS VTLX16-69FW TV Cart. Optional VSYS mobile floor stand: its published size and load limits and listed 600×400 mm VESA pattern accommodate this display. Check attached loads, floor conditions and the safe movement route.
Installation
Specify the 600 × 400 mm VESA pattern and 41.5 kg display weight, allowing for attached accessory loads. Confirm screw length, clearances, ventilation and permitted tilt for the exact unit. Have the structure and lifting plan assessed for this screen; bracket screen-size limits alone do not establish compatibility. Confirm CMS and source compatibility with the earlier webOS platform before ordering.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your 75UH5F-H quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
